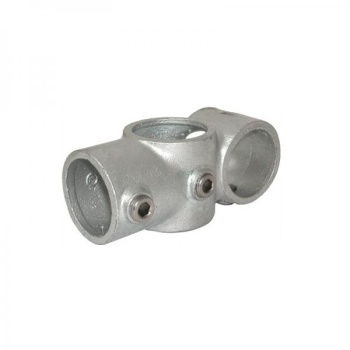

Type 30, Combi Socket Tee and Cros

Base flange for sloping sites, adjustable from 30° to 45°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Male Single Lug. Used with Type 42 for swivel fittings, also used for fixing panels and boards.

Groundsocket. A ground socket fitting inside the concrete for fixing upright tube. Post is retained with a locking setscrew, allowing easy insertion and removal (if necessary).

Collar Plate Single Side. Front adjustment scew. Fitting for panel fixing.

Ümartoru tsingitud D=33,7mm
seinapaksus 2,6 mm
maksimaalne profiili pikkus 6 m, kulleriga saatmisel maksimaalne pikkus 2m!

Short Tee 45°. Forms a connection between two tubes at an angle of 45°.
