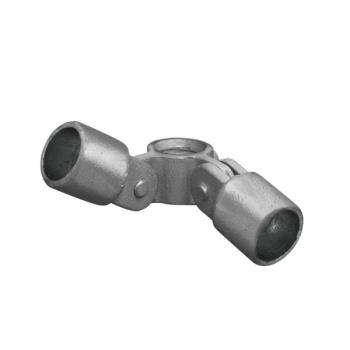

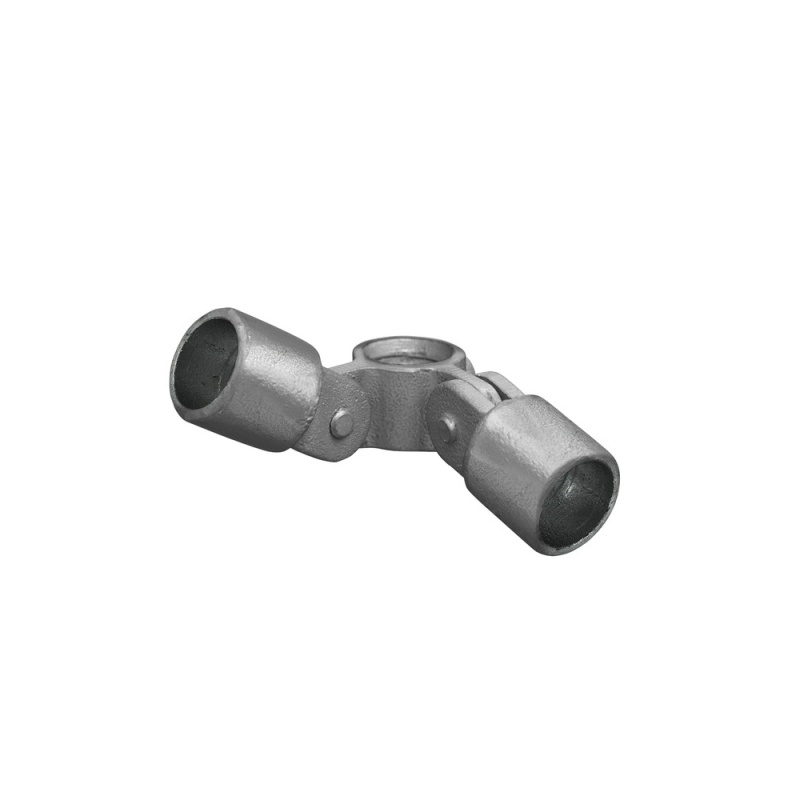

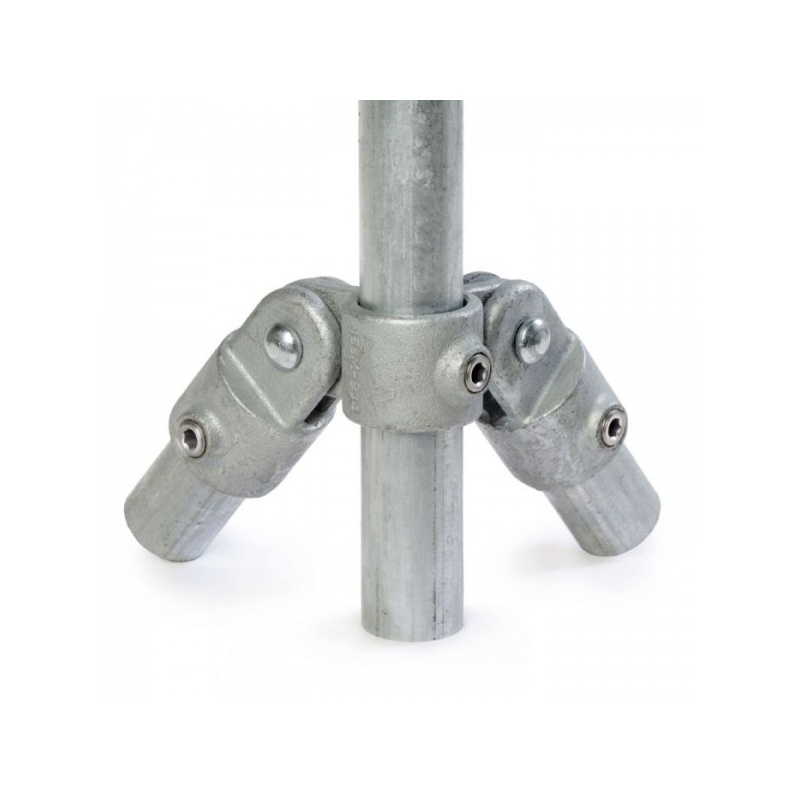

Type 48, Corner Swivel 90° Ø42,4

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Two Socket Slope Cross. Joint clamp between the middle rail and upright on slope railings up to 11°.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Slope Elbow 90° Variable angle 0° - 11°. Elbow joint fitting used as an end fitting for the top rail up to 11°.

Elbow 90°. Elbow joint fitting used as an end fitting for the top rail with different tube dimensions Ø42,4 mm and 48,3mm
