3D Rubber Sphere, D350mm

3D Rubber Hemisphere, D350mm.
3D hemispheres are perfect solution for children playground equipment enrichment, it can be used as balance trainers or a seating.

- suitable for outdoor use only as it has a strong rubber smell
- recycled SBR rubber granulate, MDI polyurethane glue

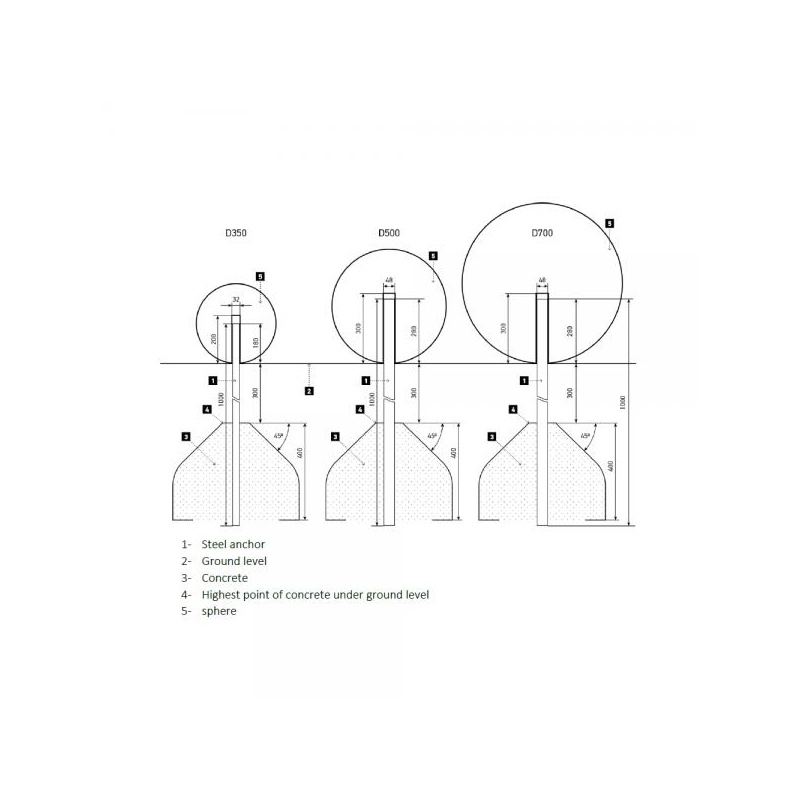

- they can be mounted on an anchor in the sub-base or glued on a safety tile surface
- available colors: red, green, blue, grey, black
- installation: surface for 3D forms should be rubber tiles or in-situ rubber layer with at least 0,8 m HIC value according EN1177 if installed under spheres of 700 mm diameter.
- hole dimensions for steel anchors 32 mm for D350

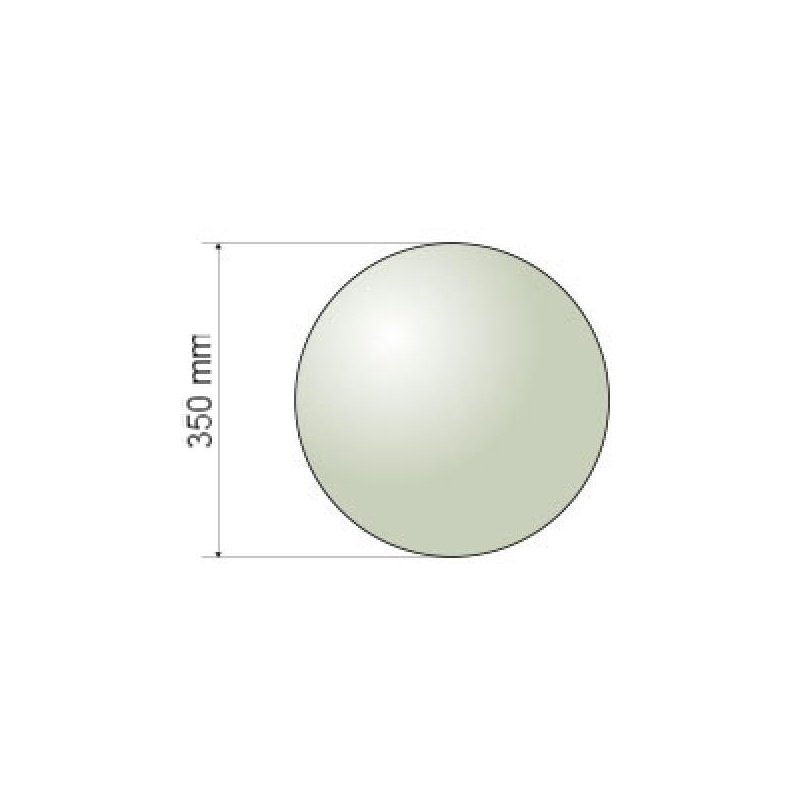

- dimensions (width x height): 350mm x 175mm
- weight: 11kg
- test data: EN 1176–1:2017

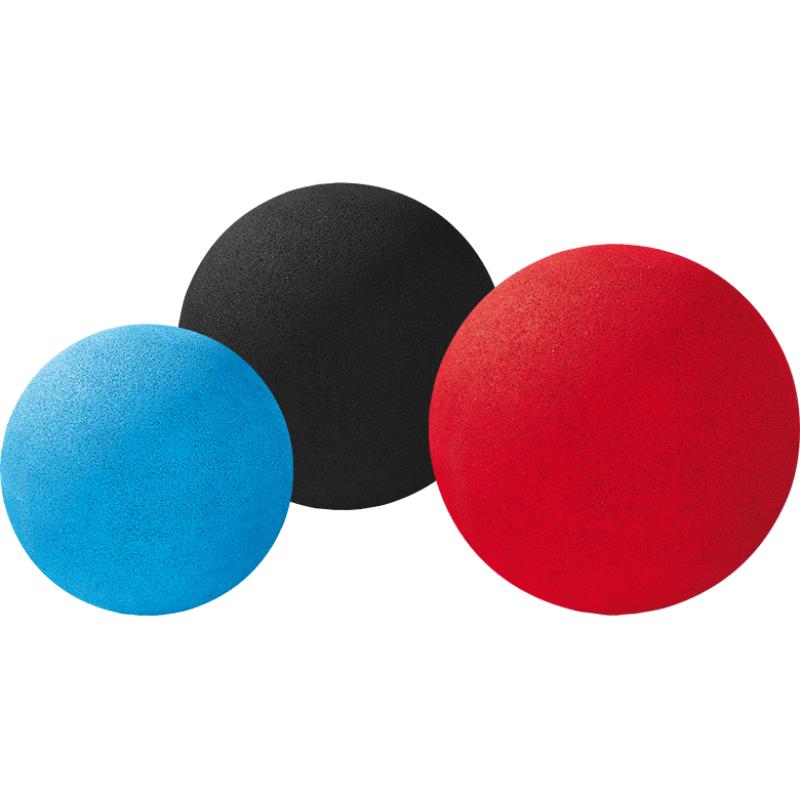

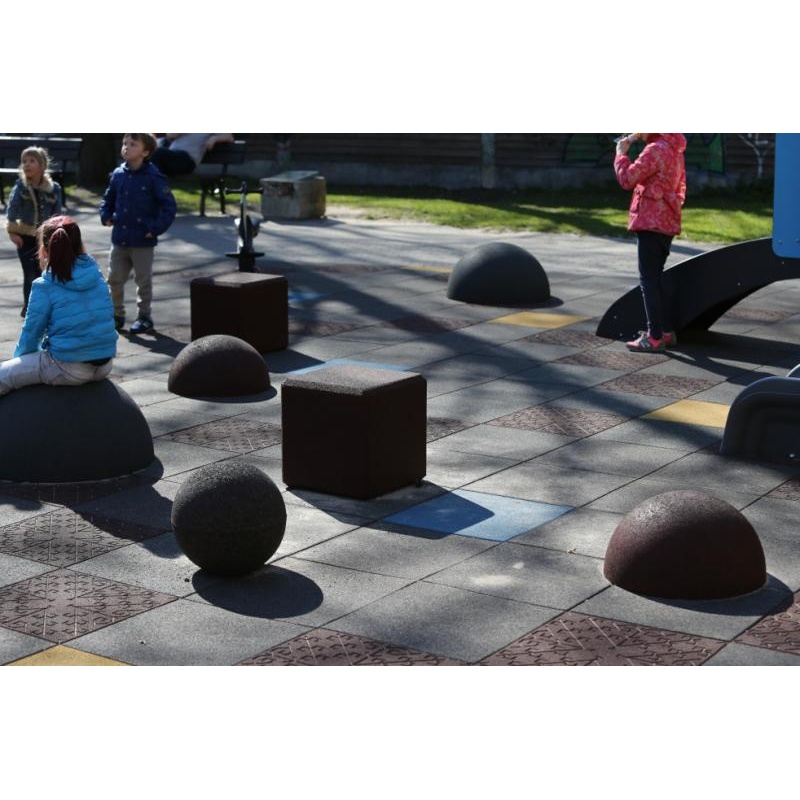

3D Spheres are perfect solution for children playground equipment enrichment, it can be used as balance trainers or a seating. As well as being used in playgrounds, 3D rubber shapes pop up more and more often in urban areas, gardens, even city streets, as a piece of play equipment, park seating or just as a decorative touch.
3D rubber shapes become a tool for kids’ physical education: it trains vestibular system, climbing and jumping skills, and promotes spatial thinking.

- suitable for outdoor use only as it has a strong rubber smell
- recycled SBR rubber granulate, MDI polyurethane glue
- they can be mounted on an anchor in the sub-base or glued on a safety tile surface
- installation: Installation surface for 3D forms should be rubber tiles or in-situ rubber layer with at least 0,8 m HIC value according EN1177 if installed under spheres of 700 mm diameter.
- hole dimensions for steel anchors 48 mm for D500
- available colors: red, green, blue, grey, black
- dimensions (width x height): 500mm x 500mm
- weight: 60kg
- test data: EN 1176–1:2017

yellow RAL1021
red RAL3016
blue RAL 5017
black RAL 7015
green RAL 6011
grey RAL 7035

3D Hemispheres are perfect solution for children playground equipment enrichment, it can be used as balance trainers or a seating. As well as being used in playgrounds, 3D rubber shapes pop up more and more often in urban areas, gardens, even city streets, as a piece of play equipment, park seating or just as a decorative touch.
3D rubber shapes become a tool for kids’ physical education: it trains vestibular system, climbing and jumping skills, and promotes spatial thinking.
For both indoor and outdoor use. EPDM does not have the characteristic smell of rubber.

- coloured EPDM rubber granulate, MDI polyurethane glue
- they can be mounted on an anchor in the sub-base or glued on a safety tile surface
- Installation surface for 3D forms should be rubber tiles or in-situ rubber layer with at least 0,8 m HIC value according EN1177 if installed under spheres of 700 mm diameter.
- hole dimensions for steel anchors 48 mm for D500

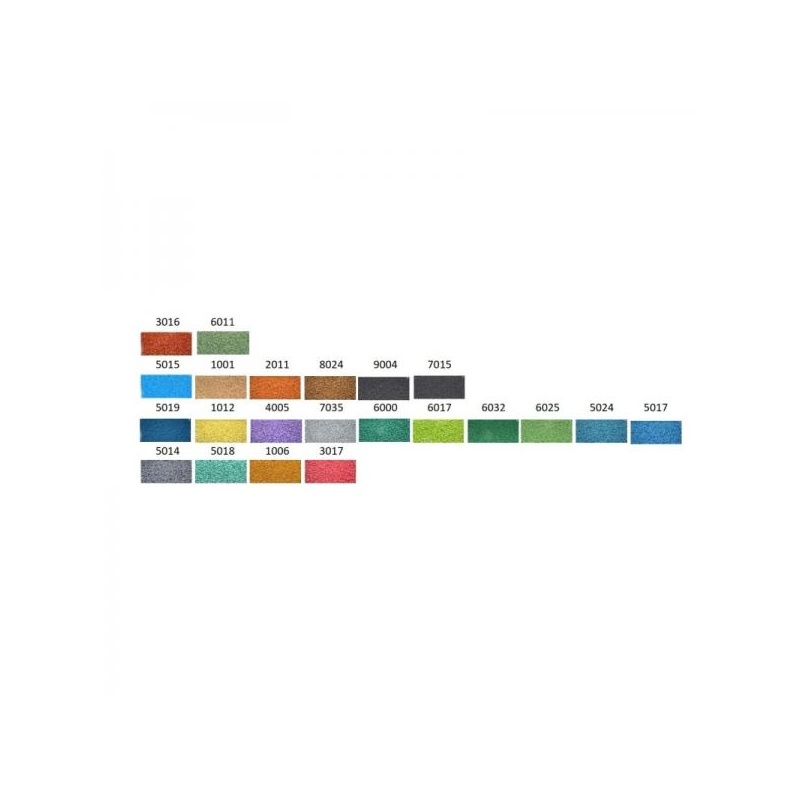

- available in 22 different colors
- dimensions (width x height): 500mm x 250mm
- weight: 35kg
- test data: EN 1176–1:2017

3D Cube are perfect solution for children playground equipment enrichment, it can be used as balance trainers or a seating. As well as being used in playgrounds, 3D rubber shapes pop up more and more often in urban areas, gardens, even city streets, as a piece of play equipment, park seating or just as a decorative touch.
3D rubber shapes become a tool for kids’ physical education: it trains vestibular system, climbing and jumping skills, and promotes spatial thinking.
For indoor and outdoor use. The product does not have a characteristic rubber smell.

- coloured EPDM rubber granulate, MDI polyurethane glue
- they can be mounted on an anchor in the sub-base or glued on a safety tile surface
- Installation surface for 3D forms should be rubber tiles or in-situ rubber layer with at least 0,8 m HIC value according EN1177 if installed under spheres of 700 mm diameter.
- hole dimensions for steel anchors 48 mm
- available in 22 different colors
- dimensions (width x height): 400mm x 400mm x 400mm
- weight: 70kg
- test data: EN 1176–1:2017

yellow RAL1021
red RAL3016
blue RAL 5017
black RAL 7015
green RAL 6011
gray RAL 7035

DIMENSIONS
height: 80 cm
diameter: 40 cm
weigth: 173 kg

MATERIALS
sandblasted concrete or painted concrete

INSTALLATION
The bollard is installed by setting anchoring pipes in the concrete

COLOR CHOICE
sandblasted concrete: natural grey
painted concrete: grey, light graphite, graphite

DIMENSIONS
height: 58 cm
diameter: 60 cm
weigth: 260 kg

MATERIALS
sandblasted concrete or painted concrete

INSTALLATION
The sphere is installed by setting anchoring pipes in the concrete

COLOR CHOICE
sandblasted concrete: natural grey
painted concrete: grey, light graphite, graphite
