Deneb Rotating Net Cliber

SKU: 8802
Unit: pc
Delivery time: 6 nädalat

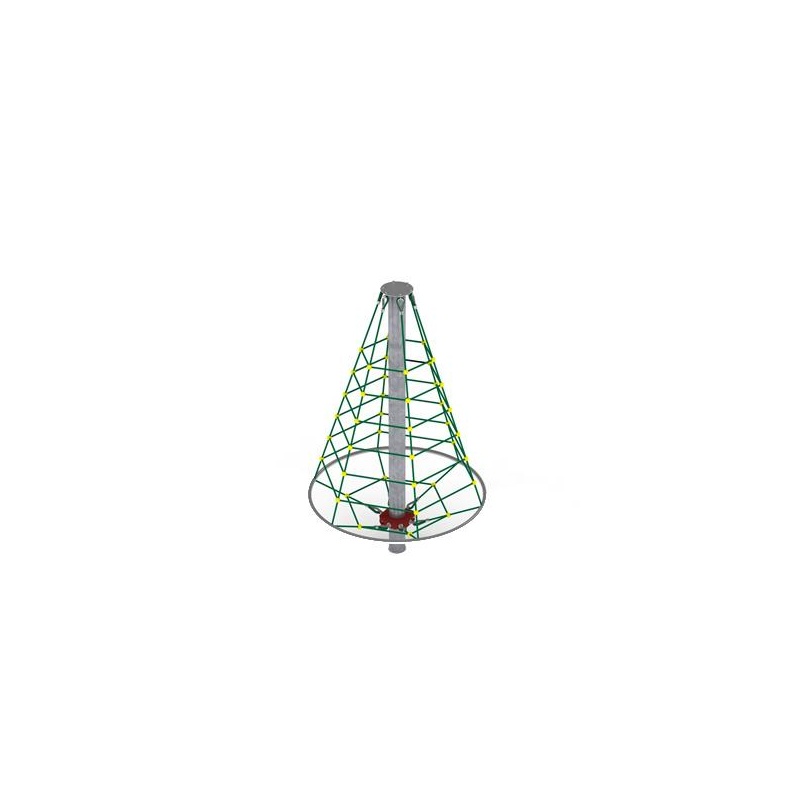

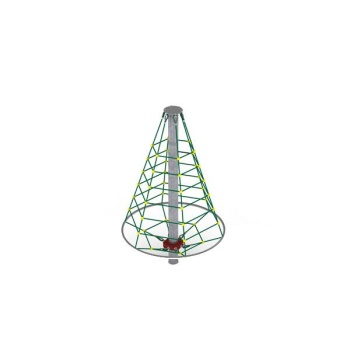

Rotating climbing net "Deneb"

The product combines the opportunity to climb and play like a carousel.

Measurements: 1.8x1.8x3m
Free fall hight: 2.3m

The main structural element is a steel post with a diameter of 168.3 mm, which is protected against corrosion by hot-dip galvanizing.
The foundation is made as a reinforced concrete base set at a depth of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel cords.
The diameter of the rope is 16 mm.
The tubular rings at the top and bottom of the device are made of stainless steel.
The elements connecting the rope are made of plastic and aluminum.
The connecting elements of the rope rod are made of cast steel and stainless steel.
Cast steel is protected against corrosion rubber paints.

Weight: 200 + 560kg

Ask for an offer!
Add to inquiry
Similar products
Arched Net Climber

- users’ age group: 5 to 14 years
- max. fall height: 1,20 m
- product dimensions: (length x width x height) 2,09 x 1,21 x 1,31 m
- installation area: (length x width) 5,01 x 4,06 m
- construction made of stainless steel and plastic connectors.
- Ø16 mm PP ropes with galvanized steel wires
- the set includes foundations made of concrete class C25/30

Ask for an offer!
SKU: 81260A ,   Delivery time: 2 kuud
Network pyramid "Hati".

suitable for age group: 3-14 years
- maximum fall height: 1m
- dimensions: height x width x length: 4m*3.5m*2.4m

Hexagonal pyramid with 6 main lines.
The hot-dip galvanized cable structure consists of six main cables attached to the ground, which have turn locks for tension correction.
Six walls of ropes are stretched between adjacent carrier cables.
An additional attraction is the horizontal rope plane at a height of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel straps.
The diameter of the rope is 16mm.
The elements connecting the ropes are made of plastic and aluminum.
The ropes, which are connected to the post standing in the middle, are connected to stainless steel elements.
Weight: 350+1550kg

Ask for an offer!
SKU: 8205 ,   Delivery time: 2 kuud
Climbing Cube Box L1

- users’ age group: 7+
- max. fall height: 2,81 m
- product dimensions: (length x width x height) 3,44 x 3,98 x 2,81 m
- installation area: (length x width) 6,75 x 6,89 m
- construction made of stainless steel and plastic connectors.
- HPL construction components
- climbing grips made of epoxy resin
- the set includes foundations made of concrete class C25/30

Ask for an offer!
SKU: 89201 ,   Delivery time: 6 nädalat
Climbing net "Procjon".

Measurements: 1.8x1.8x3m
Free fall: 2m

The main structural element is a steel column protected against corrosion by hot-dip galvanizing. The rope structure consists of main ropes lowered from the top of the mast.
At the bottom, the ropes are threaded around and attached to a rod.
The ring is made of stainless steel pipe.
The net is made of polypropylene rope reinforced with electro-galvanized steel cords.
The diameter of the rope is 16 mm. The elements connecting the rope are made of plastic and aluminum. The connecting elements of the rope rod are made of stainless steel.

Weight: 150+560kg


Ask for an offer!
SKU: 8403 ,   Delivery time: 6 nädalat
Rotating climbing net "Konusix"

The product combines the opportunity to climb and play like a carousel.

Measurements: 1.8x1.8x2.1m
Free fall: 1.5m

The main structural element is a steel post with a diameter of 168.3 mm, which is protected against corrosion by hot-dip galvanizing. The foundation is made as a reinforced concrete base set at a depth of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel cords.
The diameter of the rope is 16 mm.
The tubular rings at the top and bottom of the device are made of stainless steel.
The elements connecting the rope are made of plastic and aluminum.
The connecting elements of the rope rod are made of cast steel and stainless steel.
Cast steel is protected against corrosion by painting with chlorinated rubber paints.

Weight: 150 + 560kg

Ask for an offer!
SKU: 8801 ,   Delivery time: 6 nädalat
Rotating climbing net "Pankracix"

The product combines the opportunity to climb and play like a carousel.

Measurements: 1.8x1.8x3m
Free fall: 2.3m

The main structural element is a steel post with a diameter of 168.3 mm, which is protected against corrosion by hot-dip galvanizing.
The foundation is made as a reinforced concrete base that can be set to a depth of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel cords.
The diameter of the rope is 16 mm. The tubular rings at the top and bottom of the device are made of stainless steel.
The elements connecting the rope are made of plastic and aluminum.
The connecting elements of the rope rod are made of cast steel and stainless steel.
Cast steel is protected against corrosion by painting with rubber paints.

Weight: 200 + 560kg

Ask for an offer!
SKU: 8804 ,   Delivery time: 6 nädalat
