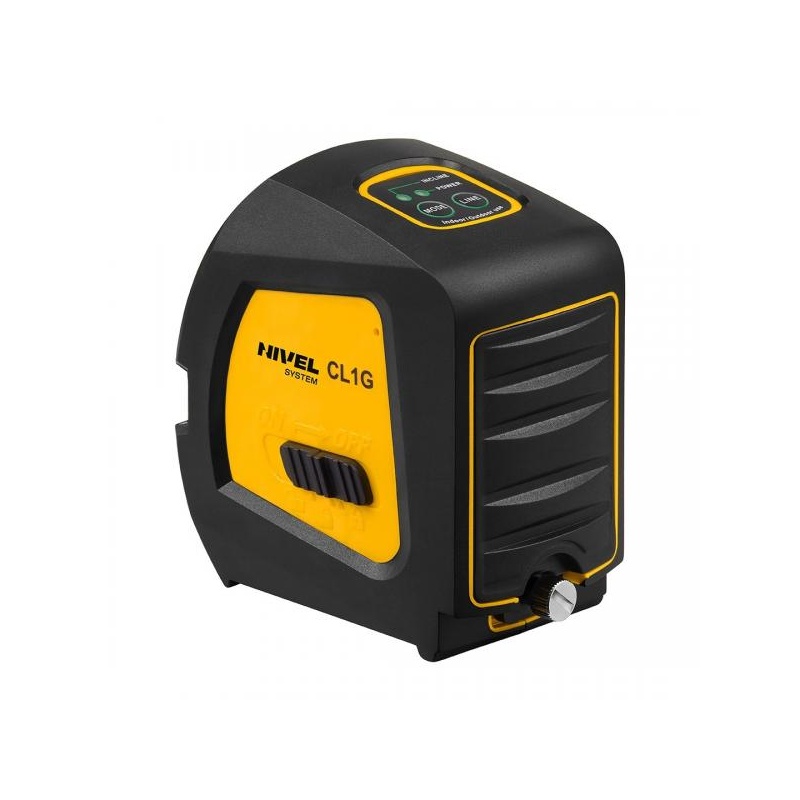

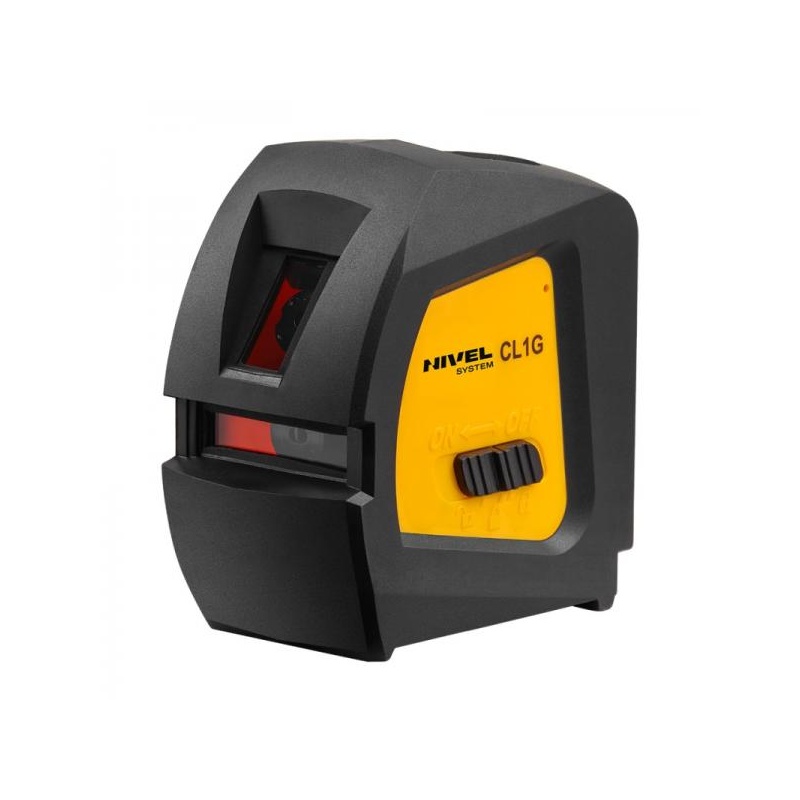

Green laser crossliner

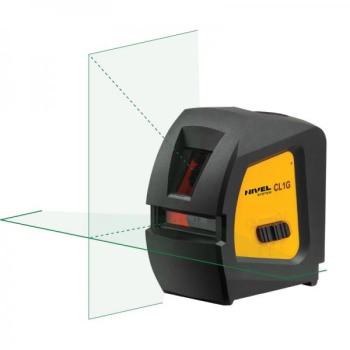

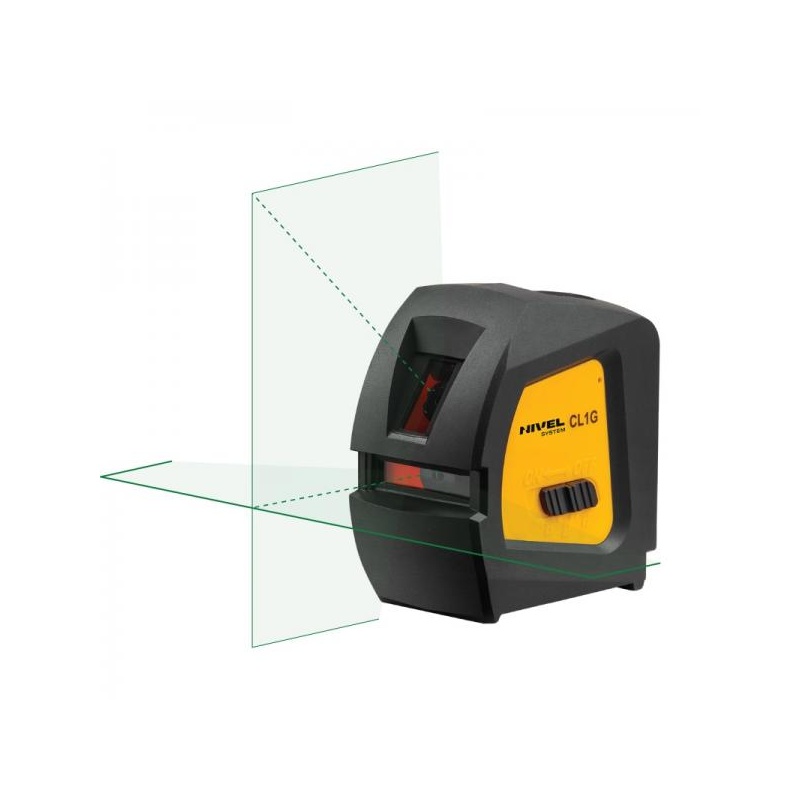

Cross laser Nivel System CL1 is designed for determining the horizontal and vertical plane, and both at the same time in the form of a cross with arms intersecting at 90° angles. Equipment, thanks to very distinct reference lines can be used for indoor and outdoor applications. Pulse function allows to use the laser sensor and to work with an instrument at greater distances, also on the outside. CL1 set includes special laser adapter - used to set up height and direction of generated laser.

– laser beam: green, 515 nm
– accuracy: ±2.0 mm/10 m
– working radius: 30m (70m with laser receiver)
– horizontal 360"
– projection angle: 90°±60”
– self-leveling range: ± 3°
– power supply: Li-ion 3.7 V (4000 mAh)
– mounting thread: 1/4", 5/8"
– dust and moisture protection: IP54
– operating temperature: -10° to +50°C
– bluetooth

Dimensions: 130 x 72 x 133 mm
Weight: 0.83 kg

Warranty 12 months

In the set:
– Laser
– Floor target (2 pcs.)
– Laser target
– Multi adapter
– Laser glasses
– Li-ion rechargeable battery
– Carrying case
– USB “C” type charger
– Laser lift
- Manual
