M folding stairs to wall 54º

SKU: 31700
Unit: set
Qty: Out of Stock
Delivery time: 2-3 nädalat

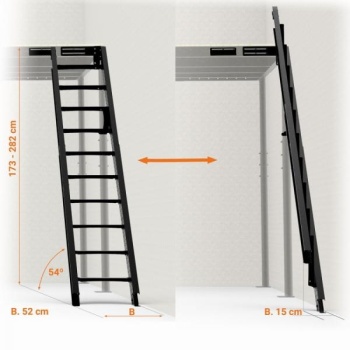

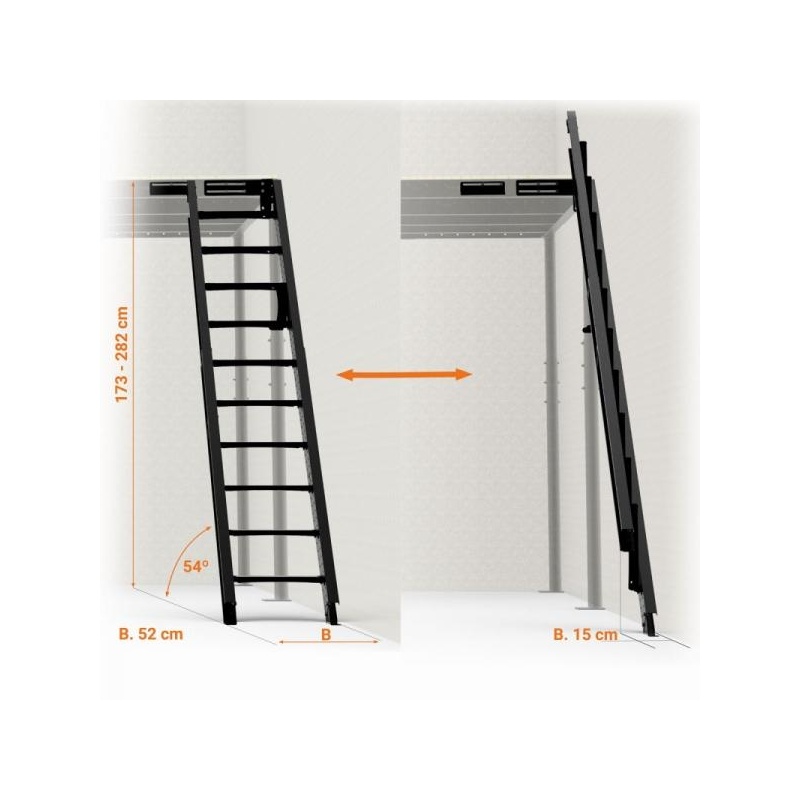

Folding staircase to the wall. Attached to the wall and mezzanine using the included parts. The stairs can be folded against the wall. The folding system, controlled by a hydraulic cylinder, allows each user to use it safely and easily.
Can be attached to both left and right.
A handrail set is also available, which can be mounted on the opposite side of the wall (ask for a separate offer)
In addition, the wall-mounted staircase has an automatic safety system that prevents the staircase from falling accidentally.
The dimensions of the tread and riser cannot be changed, so it is not possible to obtain additional steps to reduce the height between them.
Available in two slopes: 45º and 54º

DATA:
Compatible with subfloors of the following sizes: M
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 183, 195, 207, 219, 232, 244, 256, 268, 280 cm
Structural material and finish of powder-coated structural steel
Number of steps: 9
Step dimensions: 39.3 x 20.5 cm

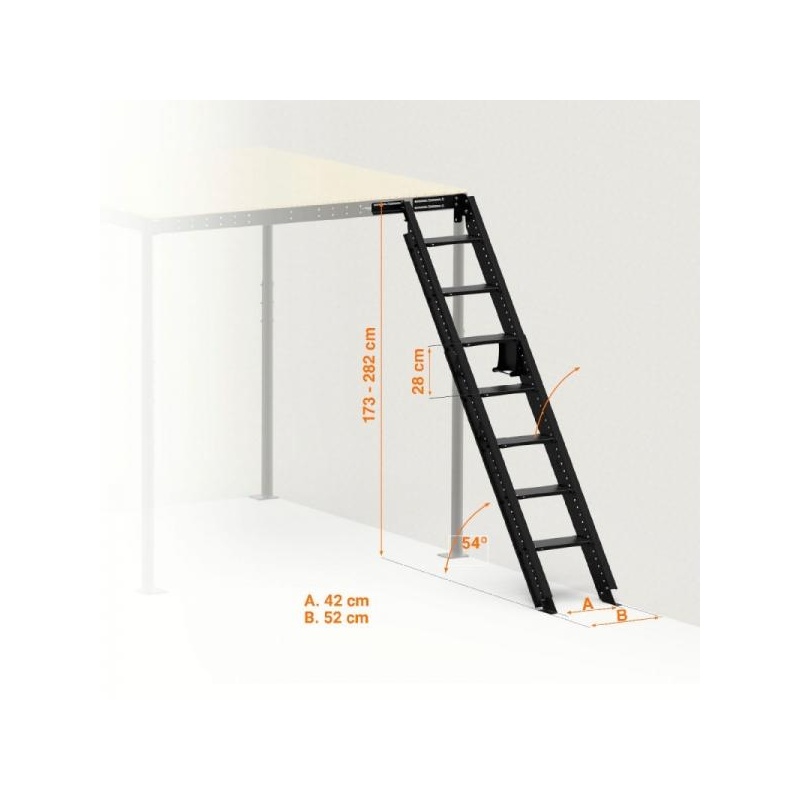

Slope and shadow: 54º / The shadow of the stairs is 73% of the height.

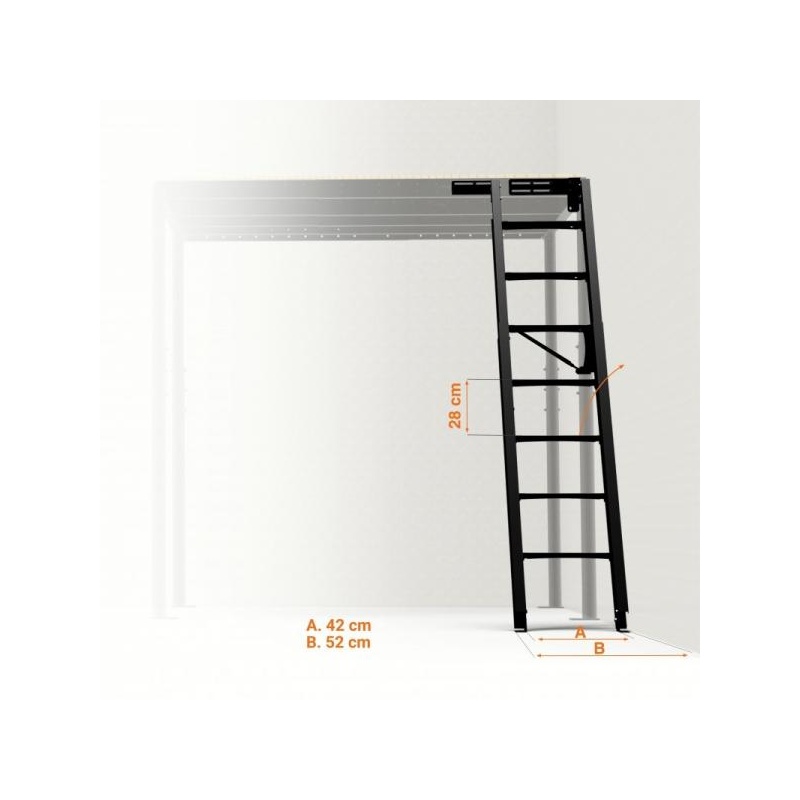

Height between steps (riser): 28cm
Material of steps: Powder-coated steel
Maximum load per step: 150 kg
Maximum load capacity: 150 kg

Parameters


* Colour

Qty.: - +
   - or -
Add to inquiry
Similar products
DATA:
Maximum height from the floorboard 343 cm
The minimum height from the floorboard is 209 cm
Height adjustable every 6.05 cm
Total height: 270, 337, 209, 276, 343, 215, 282, 221, 288, 227, 294, 233, 300, 239, 306, 245, 312, 252, 318, 258, 324, 264, 330 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 16
Dimensions of steps: 80 x 25 cm
Tilt and shadow: 42º / 111º
Height between steps (riser): 20cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 200 kg
Evenly distributed load: 200 kg / m²)
SKU: 32004 ,   Qty: Not available ,   Delivery time: 2-3 nädalat
DATA:
Compatible with the following floor sizes: S, M, L,
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 173 cm
Height adjustable every 12.1 cm
Total height: 195, 207, 219, 232, 244, 256, 268, 280, 171, 183 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: high density polyethylene (HDPE) black
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 11
Step dimensions: 53.6 x 32 cm
Height between steps (riser): 24.3 cm
Material of steps: structural steel painted with powder paint
Maximum load per step: 150 kg
Maximum load capacity: 150 kg
SKU: 31203 ,   Qty: Not available ,   Delivery time: 2-3 nädalat
DATA:
Compatible with subfloors of the following sizes: S, M, L, XL
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 171, 183, 195, 207, 219, 232, 244, 256, 268, 280, 158 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 17
Dimensions of steps: 120 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
SKU: 31500 ,   Qty: Not available ,   Delivery time: 2-3 nädalat
DATA:
Compatible with the following floor sizes: S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 14
Dimensions of steps: 120 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
SKU: 35100 ,   Qty: Not available ,   Delivery time: 2-3 nädalat
DATA:
Can be adjusted with the following floor sizes: M, S
Maximum height from the floorboard: 233 cm
Minimum height from the floorboard: 173 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Handrail material and finish: anodised aluminum
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 5 tread on the right and 6 on the left
Dimensions of steps: 59.3 x 22 x 8 cm
Slope and shadow: 62º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 22 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
SKU: 30401 ,   Qty: Not available ,   Delivery time: 2-3 nädalat
Folding staircase to the wall. Attached to the wall and mezzanine using the included parts. The stairs can be folded against the wall. The folding system, controlled by a hydraulic cylinder, allows each user to use it safely and easily.
Can be attached to both left and right.
A handrail set is also available, which can be mounted on the opposite side of the wall (ask for a separate offer)
In addition, the wall-mounted staircase has an automatic safety system that prevents the staircase from falling accidentally.
The dimensions of the tread and riser cannot be changed, so it is not possible to obtain additional steps to reduce the height between them.
Available in two slopes: 45º and 54º

DATA:
Compatible with the following floor sizes: S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Structural material and finish of powder-coated structural steel
Number of steps: 8
Step dimensions: 39.3 x 20.5 cm
Slope and shadow: 54º / The shadow of the stairs is 73% of the height.
Height between steps (riser): 28cm
Material of steps: Powder-coated steel
Maximum load per step: 150 kg
Maximum load capacity: 150 kg
SKU: 35300 ,   Qty: Out of Stock ,   Delivery time: 2-3 nädalat
