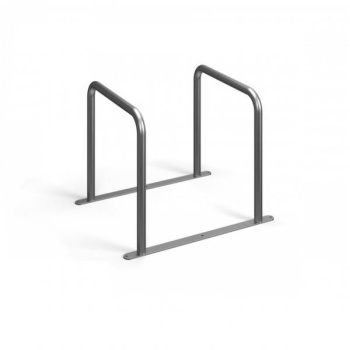

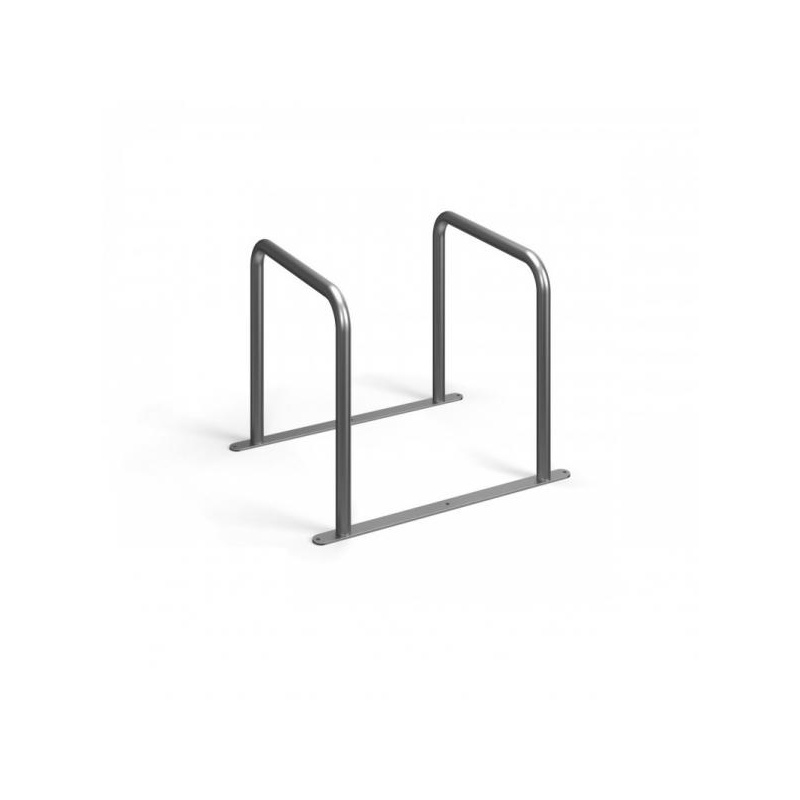

Mini Hoop Bike Rack 2

DIMENSIONS
height: 80 cm
width: 37 cm
length: 256 cm
parking spaces: 5
weigth: 46 kg

MATERIALS
varnished steel and varnished polymer composite

INSTALLATION
The bike rack is installed by setting anchoring pipes in the concrete

COLOR CHOICE: dark grey, black

By using bicycle racks, you offer the opportunity to store bicycles in an organized manner. The closed shape offers support and the ability to tie down the bike to prevent theft. The simple design makes these bike racks functional and durable.

Dimensions: 740*150*1056mm
Weight:19 kg

Bicycle racks have:
• Standard base plate for installation
below the ground
• Height from the ground 900 mm
level
• Warranty 5 years

Material according to the series (different material choices in the series):
AROS 1
• Corten steel pipe 60x40x2 mm
or
• Galvanized steel pipe 60x40x2 mm

AROS 2
• Galvanized steel pipe ø 40x2 mm
or
• Stainless steel 316 pipe ø42x2 mm

BORG
• Corten steel 8 mm
or
• Galvanized steel 8 mm

STOR
• Corten steel 10 mm
or
• Galvanized steel 10 mm.

Maintenance:
Regular cleaning and oiling of the wood ensures that the pigment in the wood is preserved longer and the discoloration process is delayed.
• Annual cleaning and dirt removal with clean water.

NB! Do not use a pressure washer.

By using bicycle racks, you offer the opportunity to store bicycles in an organized manner. The closed shape offers support and the ability to tie down the bike to prevent theft. The simple design makes these bike racks functional and durable.

Dimensions: 750*150*1070mm
Weight:8kg

Bicycle racks have:
• Standard base plate for installation
below the ground
• Height from the ground 900 mm
level
• Warranty 5 years

Material option:

AROS 2
• Galvanized steel pipe ø 40x2 mm
or
• Stainless steel 316 pipe ø42x2 mm

Bicycle rack - row arrangement
with rail system for
lean-on hoops made of steel tube (Ø 48 mm)
for screwing on,
height: 800 mm
width: 800 mm
distance between bicycles: 700 mm
hot-dip galvanized

Individual stands
Stand of Ø 12 mm round steel
welded to vertical tube 40 x 40 mm
height approx. 500 mm above ground
hot-dip galvanized
weight: 4kg

Models: 6 spaces
Max. diameter handlebar support: ø 45 mm
Dimensions version with legs: 598 high x 1006 long x 245 mm deep
Structure: galvanised steel
System: automatic grip/release of steering column, eyelets for locking (padlock not included)
Finish: galvanised and painted in our colours
Installation: base plates for version with legs (not supplied)
