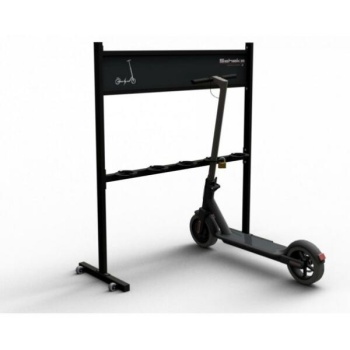

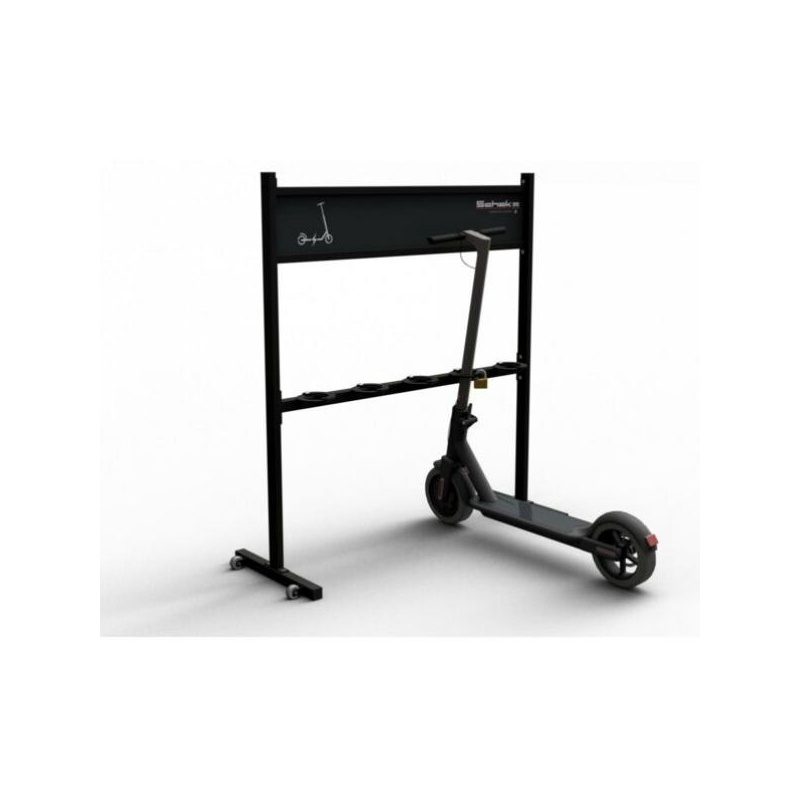

Mobile scooter stand

– dimensions: (L) 1000 x (H) 900mm
– total height 1200mm, part to be concreted 300mm
– profile diameter 90x50 mm
– material thickness: 3.5 mm
– material: hot-dip galvanized steel
– installing method: concreting into the soil
– weight: 15 kg
- place of use: as a bicycle rack, can also be used as a road barrier or fence in shopping centers, parking lots, parks

By using bicycle racks, you offer the opportunity to store bicycles in an organized manner. The closed shape offers support and the ability to tie down the bike to prevent theft. The simple design makes these bike racks functional and durable.

Dimensions: 1200*150*1084mm
Weight: 26 kg

Bicycle racks have:
• Standard base plate for installation
below the ground
• Height from the ground 900 mm
level
• Warranty 5 years

Material according to the series (different material choices in the series):
AROS 1
• Corten steel pipe 60x40x2 mm
or
• Galvanized steel pipe 60x40x2 mm

AROS 2
• Galvanized steel pipe ø 40x2 mm
or
• Stainless steel 316 pipe ø42x2 mm

BORG
• Corten steel 8 mm
or
• Galvanized steel 8 mm

STOR
• Corten steel 10 mm
or
• Galvanized steel 10 mm.

Maintenance:
Regular cleaning and oiling of the wood ensures that the pigment in the wood is preserved longer and the discoloration process is delayed.
• Annual cleaning and dirt removal with clean water.

NB! Do not use a pressure washer.

Bicycle rack - row arrangement
with rail system for
lean-on hoops made of steel tube (Ø 48 mm)
for screwing on,
height: 800 mm
width: 800 mm
distance between bicycles: 700 mm
hot-dip galvanized

Metal U-shape loop
- made of profile 40x40mm
- width 400 mm
- height 900 mm
- installable with a base plate or into the ground
- hot-dip galvanized

If needed, we can also powder coat the product!

Models: 5 spaces
Frame: 40x40mm
Dimensions: (H)650 x (L)1500 mm
Structure: galvanised steel
Eyelets for locking (padlock not included)

Mobile bike rack with advertising label

·for stable fixing of bicycles with rotating holding devices
with drive wheels
tire widths 6x up to 55 mm / 3x up to 45 mm
finish: galvanized, coated RAL 9005

Choice of 2 models:
- without sockets
- 3x socket IP54, 2x with dock for charging electric bikes.
