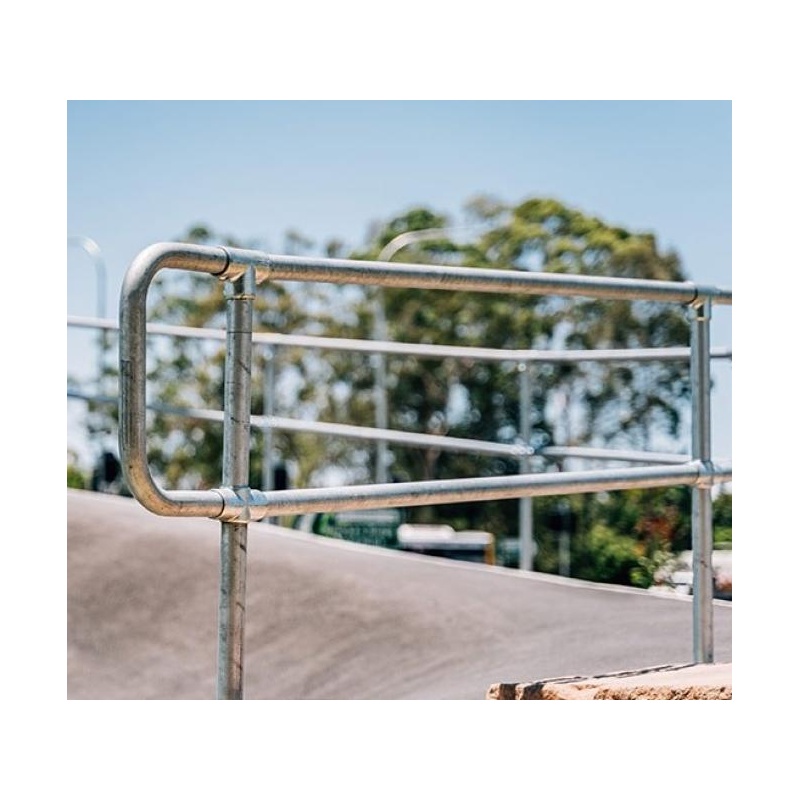

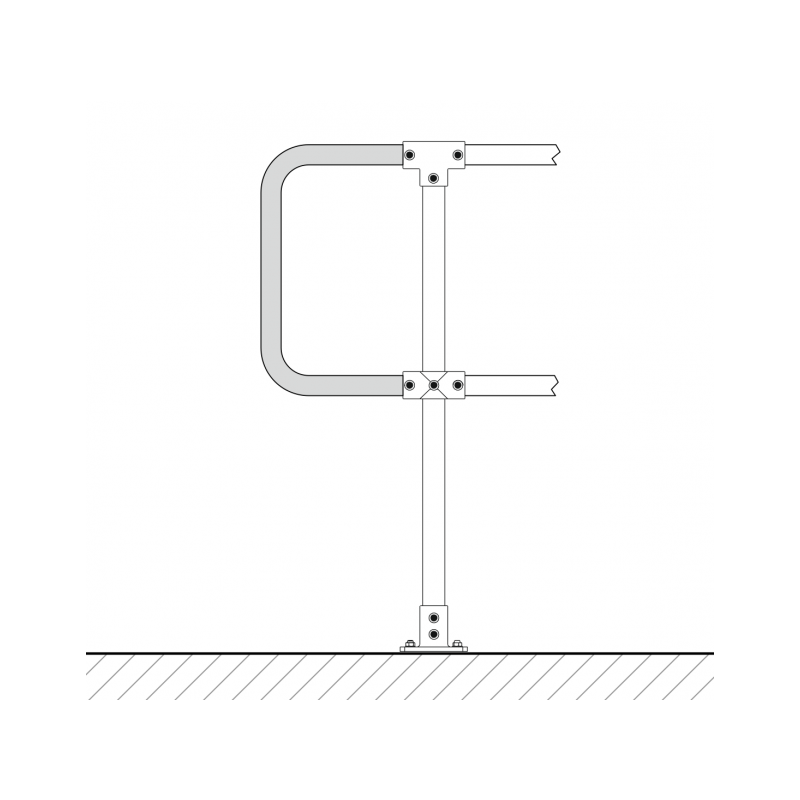

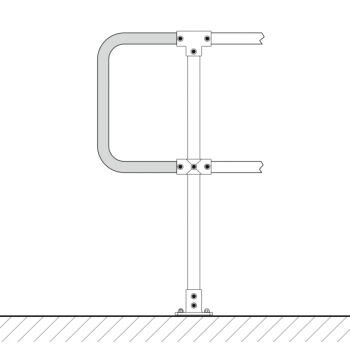

Pipe fence arche/hoop Ø60.3 mm

OP9 is a balustrade / single offset handrail for level and stair applications above one metre (FFL).
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

OP13 is a single inline handrailf for stairs and level applications under one metre.
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

OP19 is a single offset handrail / kerbrail for disabled ramps under one metre (FFL) with offset.
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

OP24 is top rail / handrail & bottom rail bikeway barrier with offset top rail, handrail and bottom rail for level and rake.
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

GRAVITY-CLOSING SAFETY GATES
The most efficient and durable way to protect people against accidental falls through guardrail openings.

• Proven design successfully used over 38 years
• Maintenance free
• Service life > 30 years
• TÜV tested, EN ISO 14122-3

DESIGN
• Gate automatically closes due to gravity
• Rises when opened; Returns closed when released
• Design does not depend on springs, cams, bearings, or the operator
• Gate has a horizontal swing, not a vertical drop
• Available in 4 standard sizes: 560, 690, 820, 950 mm

OP5 safety barrier module.
As a standard solution, the barriers are hot-dip galvanized.
