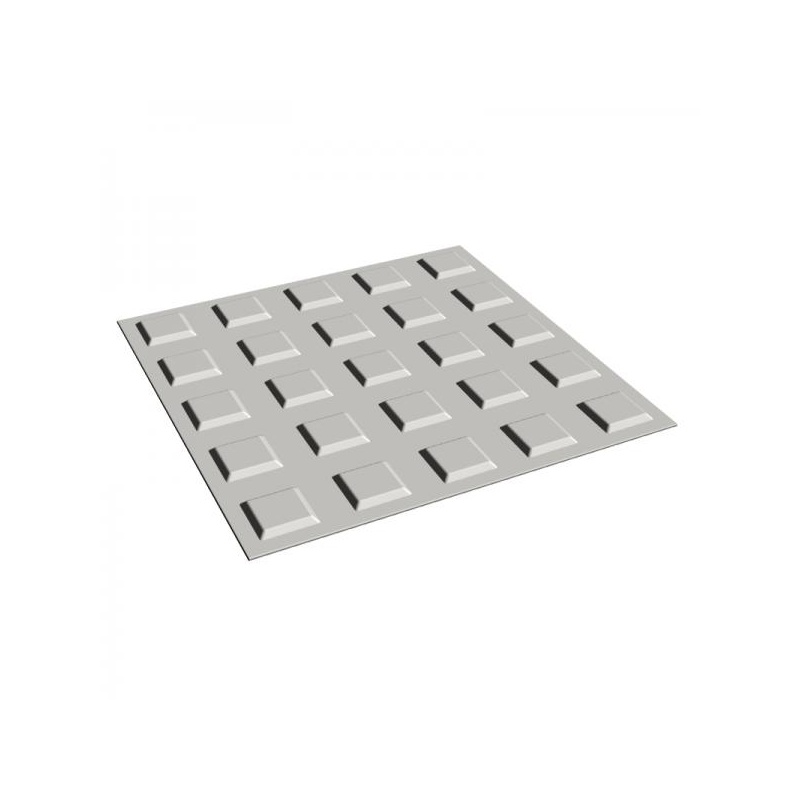

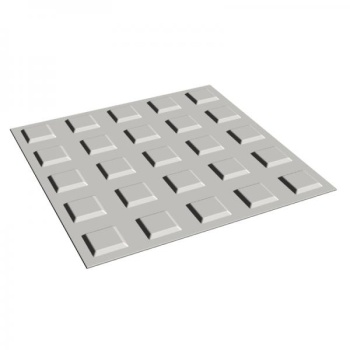

Tactile Square tile 300x300 mm
SKU: LFONPIC2
Unit: pc
Qty: Out of Stock
Unit: pc
Qty: Out of Stock
Price:
21,40 €
price inc. tax 26,11 €
A tactile information tile, type "square" should be installed in an open public space, at public transport stations and platforms, wherever a blind person may find it helpful to find elements of space equipment and landmarks
- tile dimensions: 300x300mm, height 7 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
- tile dimensions: 300x300mm, height 7 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
Similar products
The tactile rubber tile is made of vulcanized rubber.
Warning tiles at bus stops, metro stations and railway platforms, and roadside architectural elements for the blind and visually impaired. The advantage of the tactile rubber tile is that it can be installed on the existing surface. Flexible and with good durability. To install it on existing concrete or asphalt surfaces, using an adhesive polymer is recommended.
Hard-wearing surface, resistant to weather and ageing.
Dimensions: 600 x 300 x 65 mm
Warning tiles at bus stops, metro stations and railway platforms, and roadside architectural elements for the blind and visually impaired. The advantage of the tactile rubber tile is that it can be installed on the existing surface. Flexible and with good durability. To install it on existing concrete or asphalt surfaces, using an adhesive polymer is recommended.
Hard-wearing surface, resistant to weather and ageing.
Dimensions: 600 x 300 x 65 mm
SKU: GHTACKBPP
, Qty: In Stock
, Delivery time: 2-3 nädalat
15,00 €
- stainless steel 316
- Ø 35 mm
- height: 5 mm
- mounting:
a) M6x20 anchor and bonding 2-component glue
b) without anchor and bonding 2-component glue
Patterns:
- diamond
- brushed (min. order quantity 1000 pcs)
- stripe (min. order quantity 1000 pcs)
- black (min. order quantity 1000 pcs)
- Ø 35 mm
- height: 5 mm
- mounting:
a) M6x20 anchor and bonding 2-component glue
b) without anchor and bonding 2-component glue
Patterns:
- diamond
- brushed (min. order quantity 1000 pcs)
- stripe (min. order quantity 1000 pcs)
- black (min. order quantity 1000 pcs)
SKU: TACKNAIL
, Qty: In Stock
Installation template for 120 pcs tactile nails
- Dimensions: 1000x420x5 mm
- Dimensions: 1000x420x5 mm
SKU: TACKTOOL35
, Qty: Out of Stock
175,00 €
A tactile directional plate is the tactile marking system of the surface. Directional tiles guide blind and visually impaired people in public spaces.
- tile dimensions: 300x300mm or 400x400mm, height 7,8 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
- tile dimensions: 300x300mm or 400x400mm, height 7,8 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
SKU: LFONPK
, Qty: Out of Stock
From 15,40 €
A tactile information tile, type "corduroy" should be installed in an open public space, on the sidewalks, wherever a blind person may find it helpful to find elements of space equipment and landmarks
- tile dimensions: 300x300mm, height 75 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
- tile dimensions: 300x300mm, height 75 mm
- tile base thickness: 2 mm
- standard color range: white, yellow (RAL1023), light gray (RAL7042), anthracite gray (RAL7016), black (RAL9005)
- installation on concrete, stone, asphalt or wooden substrates with two-component glue
- anti-slip layer (R-12/R-13 slip resistance
SKU: LFONPIC1
, Qty: Out of Stock
21,40 €
- stainless steel 316
- Ø 35 mm
- height: 5 mm
- mounting:
a) M6x20 anchor and bonding 2-component glue
b) without anchor and bonding 2-component glue
Patterns:
- diamond
- brushed
- stripe
- black
- Ø 35 mm
- height: 5 mm
- mounting:
a) M6x20 anchor and bonding 2-component glue
b) without anchor and bonding 2-component glue
Patterns:
- diamond
- brushed
- stripe
- black
SKU: TAC16295ZBLT
