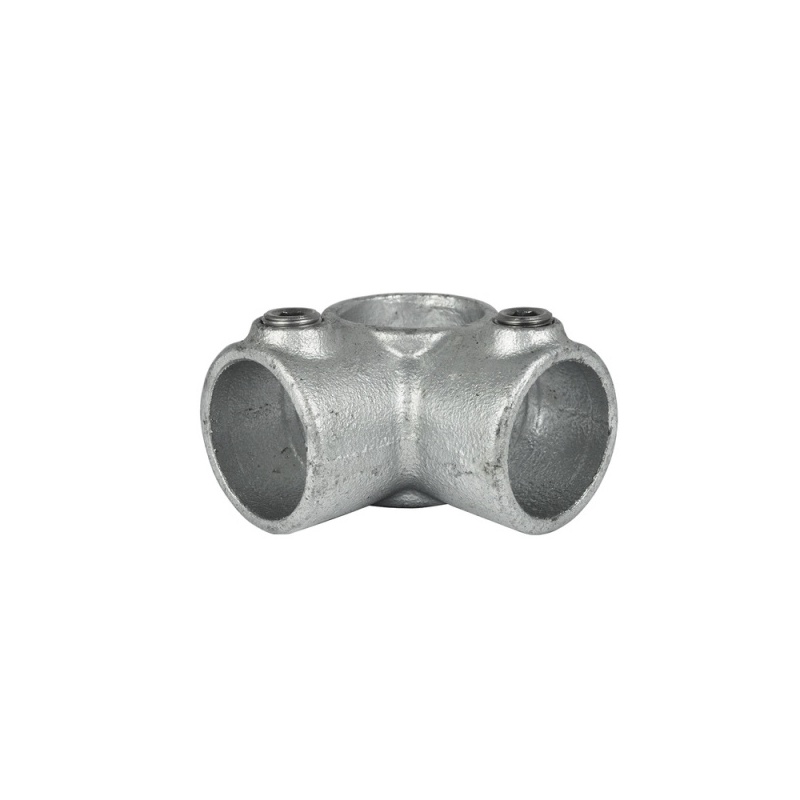

Type 20, Three Way Through Ø42,4

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Horizontal Base Railing Support. Side-mounting clamp for vertical posts. tube cannot pass through this clamp. Designed for palm fixing guard railings and balustrades to walls, parapets, steps and ramps.

Wall Flange. This clamp is used on structures where positional fixing is required. Do not use as a base flange to support guard railings or similar systems.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Clamp-On Crossover. 90° crossover joint fitting for adding to an existing structure.

Clamp-On Crossover. Open cross connection where the railing is placed in the connection and can then be secured.
