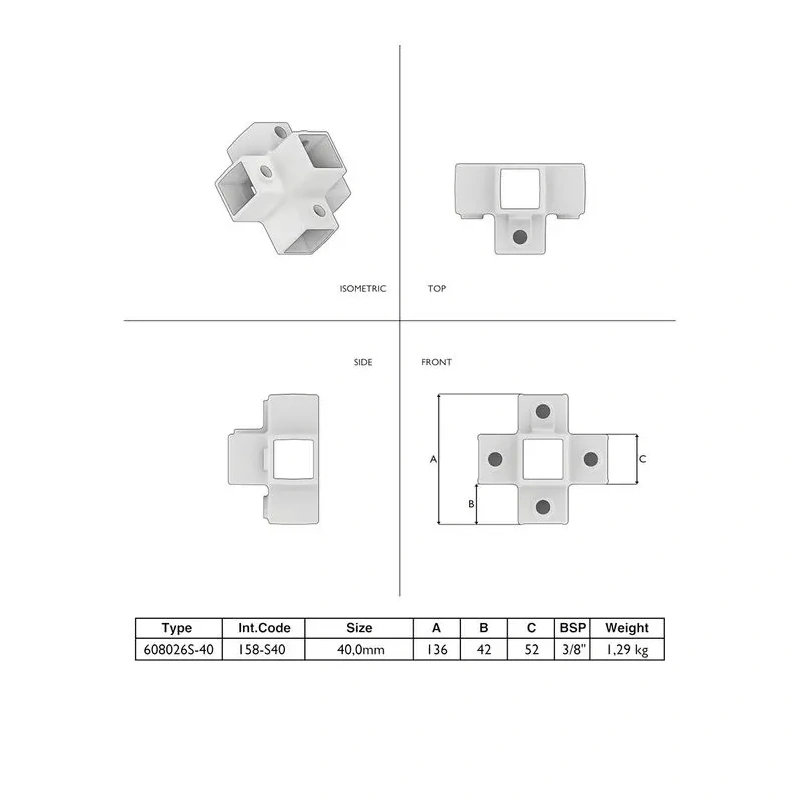

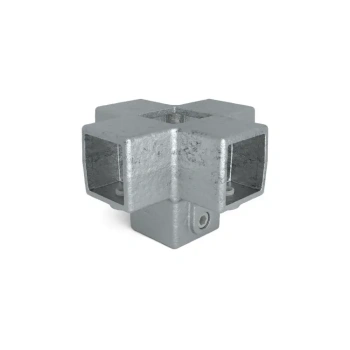

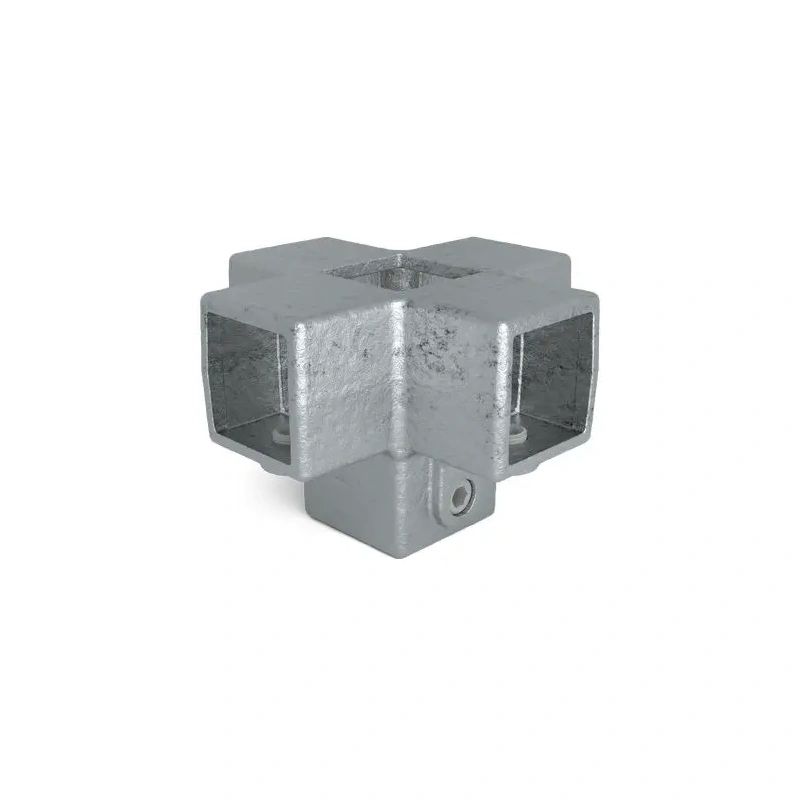

Type 26S, Four Socket Cross - 40x40 mm

Suitable for end connection.

Angle of continuous upright - 40 mm. Corner connection (90°), where the vertical tube runs through the clamp.

Three-way elbow 90° - 40 mm. Angle connection clamp (90°) for corners of overheads and all other angled connections.

Type 55, Eyelet part single lip - 40 mm. Tubefitting for fixing panels.

Rectangular Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.
