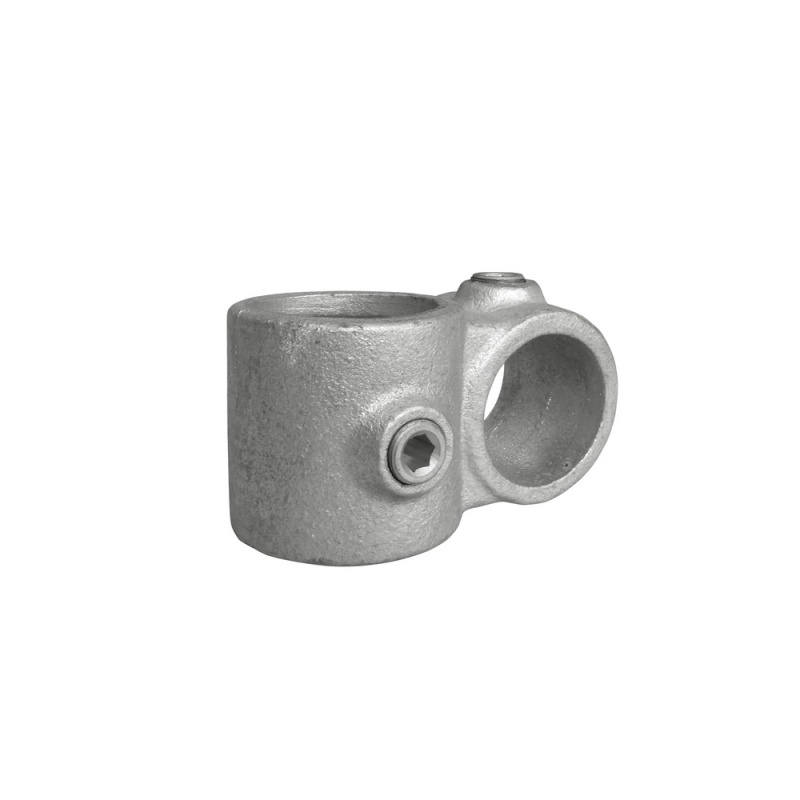

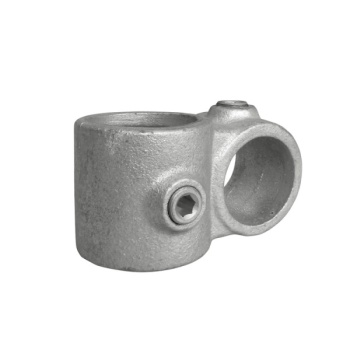

Type 28V, Reducing Crossover 90° Ø42,4 / Ø33,7

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

A clamp that allows you to connect two pipes at an angle of 30-45°. The clamp is made of hot-dip galvanized malleable iron, durable, corrosion-resistant and long-lasting. Meets TÜV requirements.

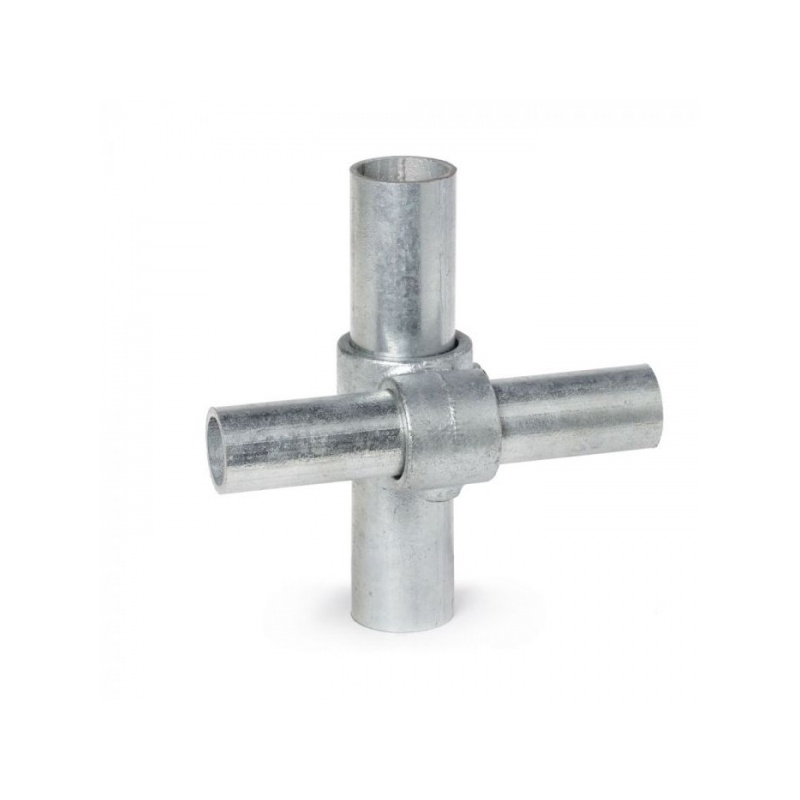

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 and vertical Ø42.4mm.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Long Slope Tee - Variable angle 0° - 11°. Similar to Type 2SE. This fitting can be used where a join is required in the horizontal tube.
