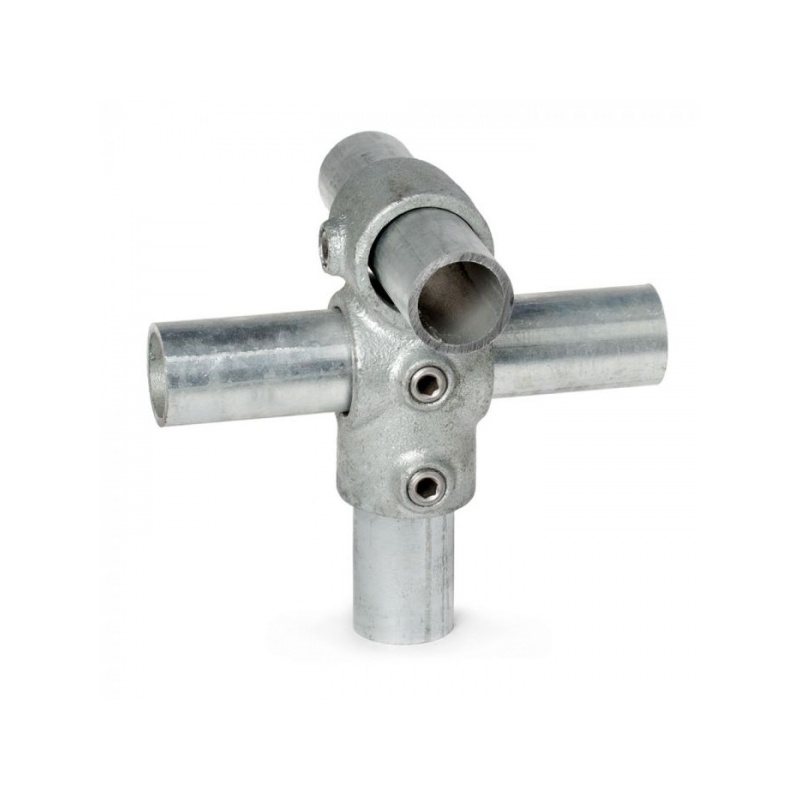

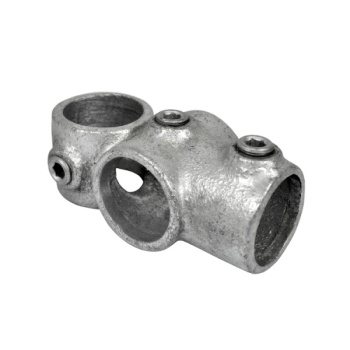

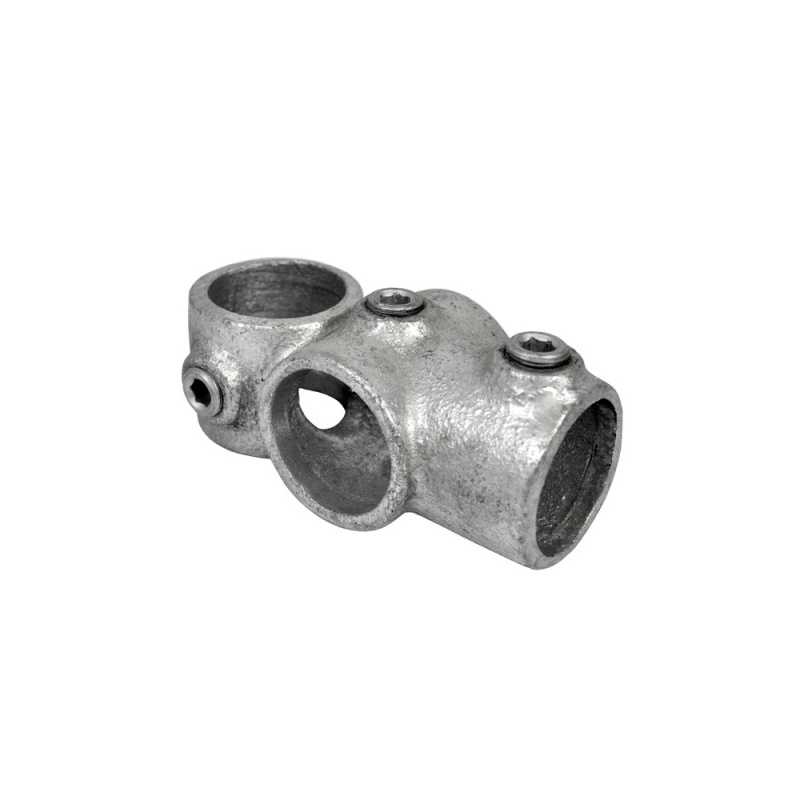

Type 30, Combi Socket Tee and Cros Ø48,3

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design.

Saddle Clamp. Our steel cap brackets are electrolytically galvanized and therefore rust-resistant. These so-called single-lip cover brackets are available for tube sizes 21.3 mm up to 60.3 mm. Extremely suitable for mounting blades on a tubular frame base.

Square base plate. Use this tubefitting for positioning constructions. Due to the shape of the base plate, it can be fixed nicely on a surface at a 90° angle. Do not use it as a base for supporting safety railings or similar contructions.

Short Tee. Provides a perpendicular connection between two tubes. Top fitting for straight and level railing uprights. This fitting cannot be used to join a horizontal tube within the fitting.

Add-on Crossover 90°. Same tubefitting as type 28 but this tubefitting can be placed on an existing construction by means of a foldable part.

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 mm and vertical Ø42.4 mm.
