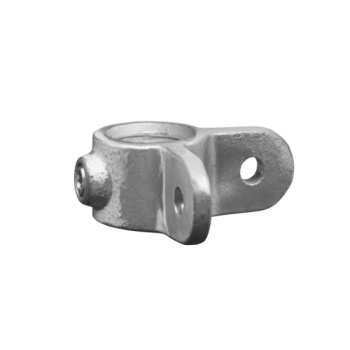

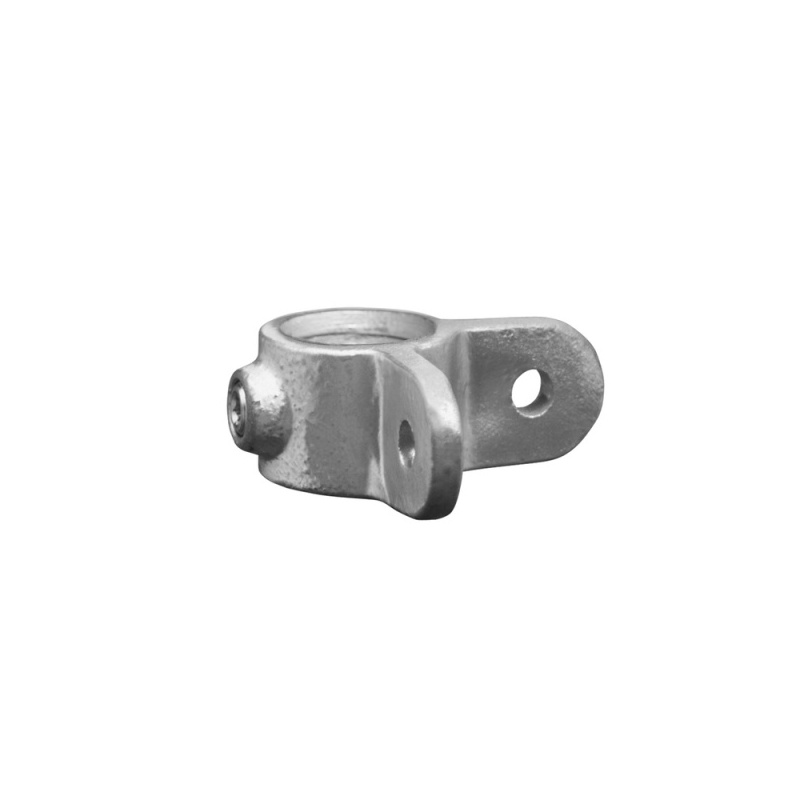

Type 40, Male Corner Lug 90° Ø42,4

Adjustable Two Socket Cross. This variable angled clamp may be used at any selected angle between 30 and 45 degrees. Type 7 can be used for the top rail.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø42.4 and vertical Ø33.7mm.

Collar Plate Single Side. Front adjustment scew. Fitting for panel fixing.

Single Sided Panel Clip. One-sided mesh panel clip.

Elbow 90°. Elbow joint fitting used as an end fitting for the top rail with different tube dimensions Ø42,4 mm and 48,3mm
