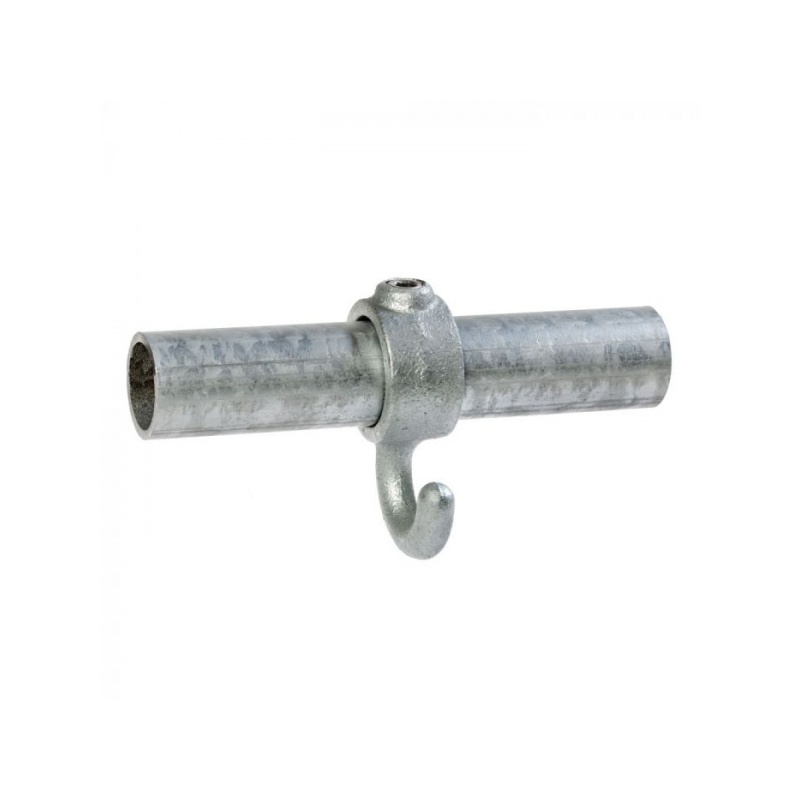

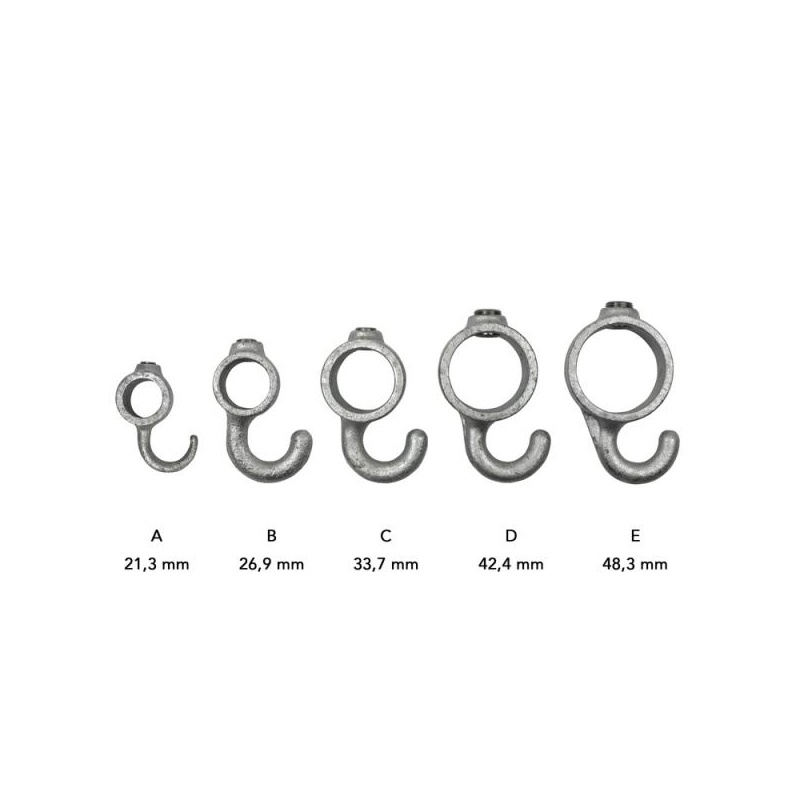

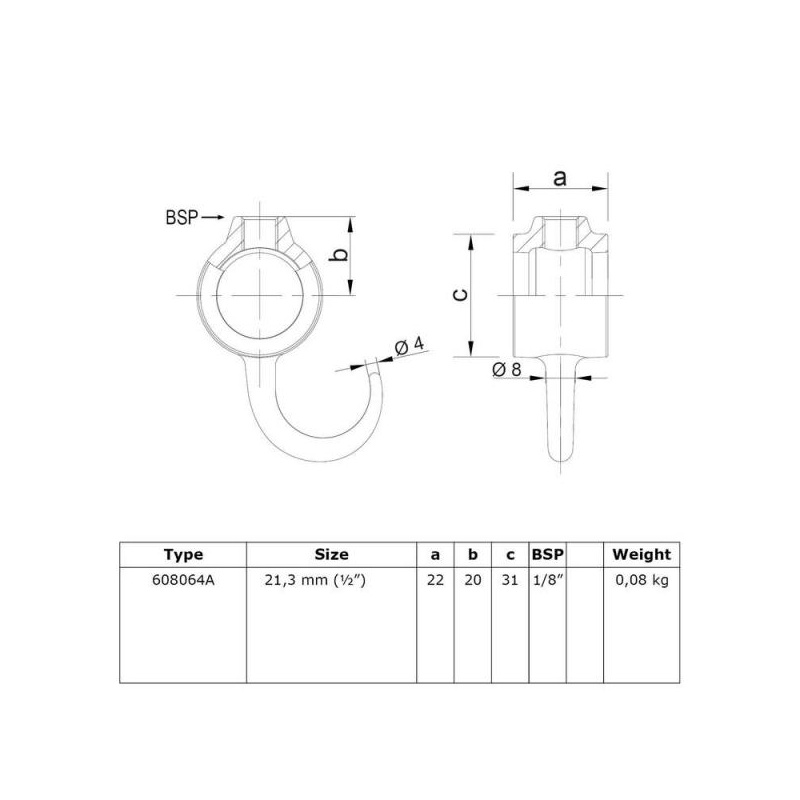

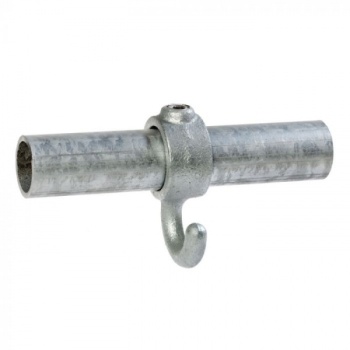

Type 64, Coat hook Ø33,7 mm

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 and vertical Ø33.7mm.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Pin Hinge. Male hinge fitting, to be used in combination with type 62.

Slope Elbow 90° Variable angle 0° - 11°. Elbow joint fitting used as an end fitting for the top rail up to 11°.

Straight Coupling. Joint clamp for tubes of the same diameter. Do not use for heavy vertical loads. Alternative clamp is Type 9 used as an internal spigot.
