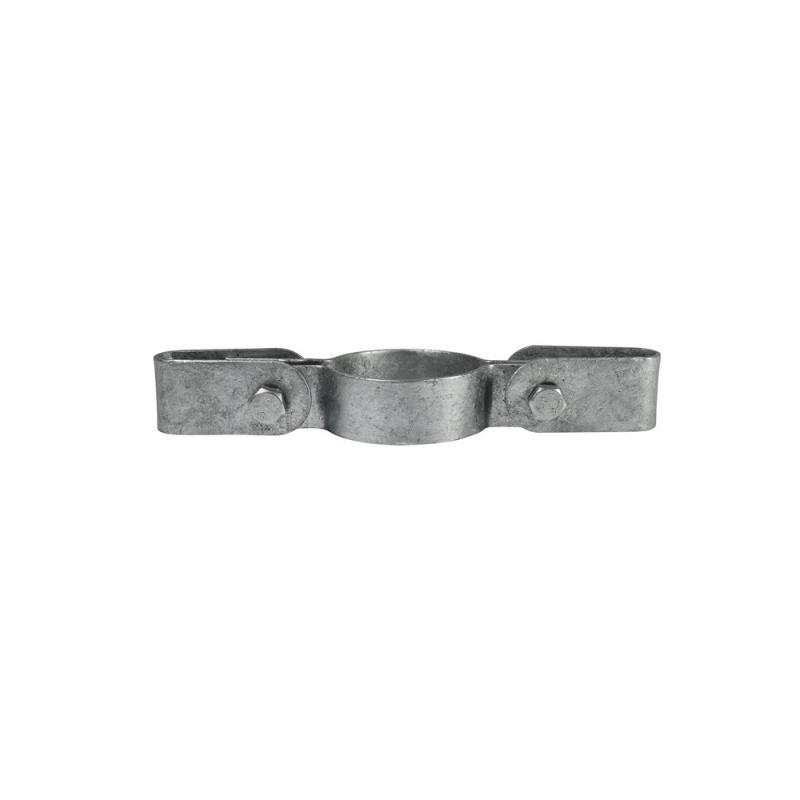

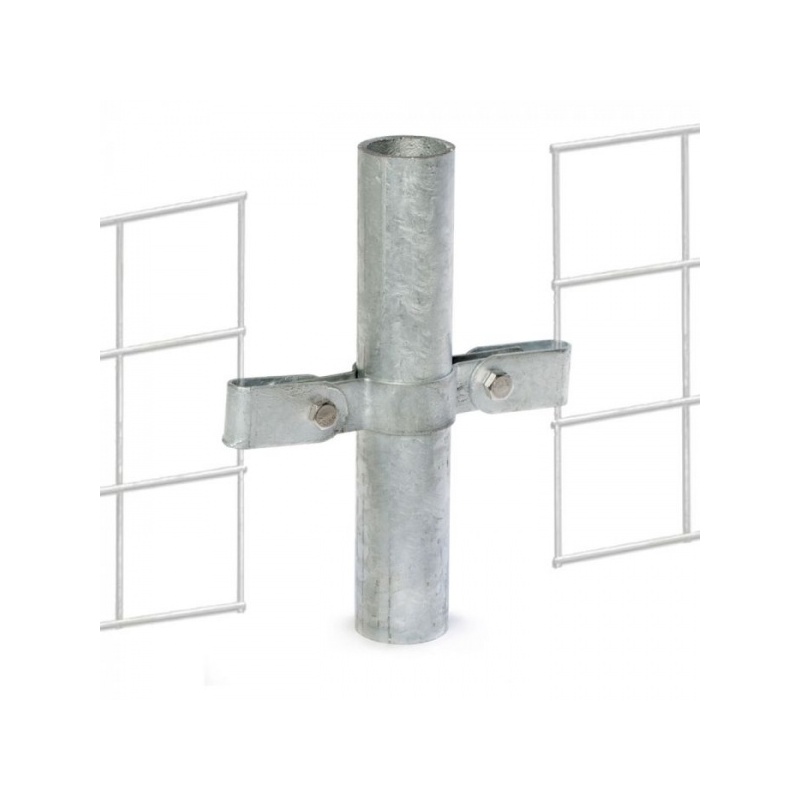

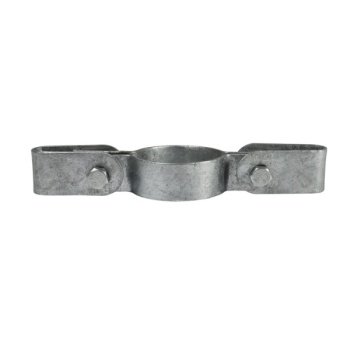

Type 71, Double-Sided Panel Clip Ø33,7

Round tube D=33.7 mm
wall thickness 2.65 mm
painted black with powder
maximum profile length 2 m

Saddle Clamp. Our steel cap brackets are electrolytically galvanized and therefore rust-resistant. These so-called single-lip cover brackets are available for tube sizes 21.3 mm up to 60.3 mm. Extremely suitable for mounting blades on a tubular frame base.

Single Swivel. Swivel fitting for variable angle fixing.

Male Corner Lug 90°. Similar to Type 36 with two lugs which are perpendicular to each other.

Side Palm. Side-mounting fitting for vertical post. The upright cannot pass through the fitting.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø33.7 and vertical Ø26.9mm.
