Type 752, DDA Assist Saddle Fitting

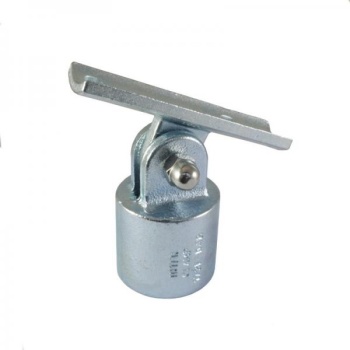

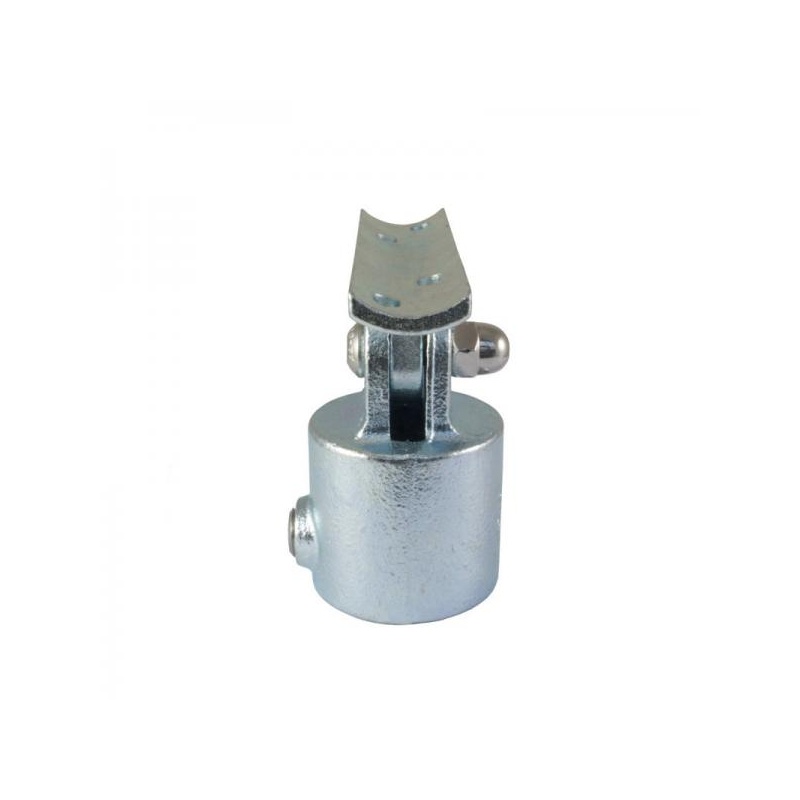

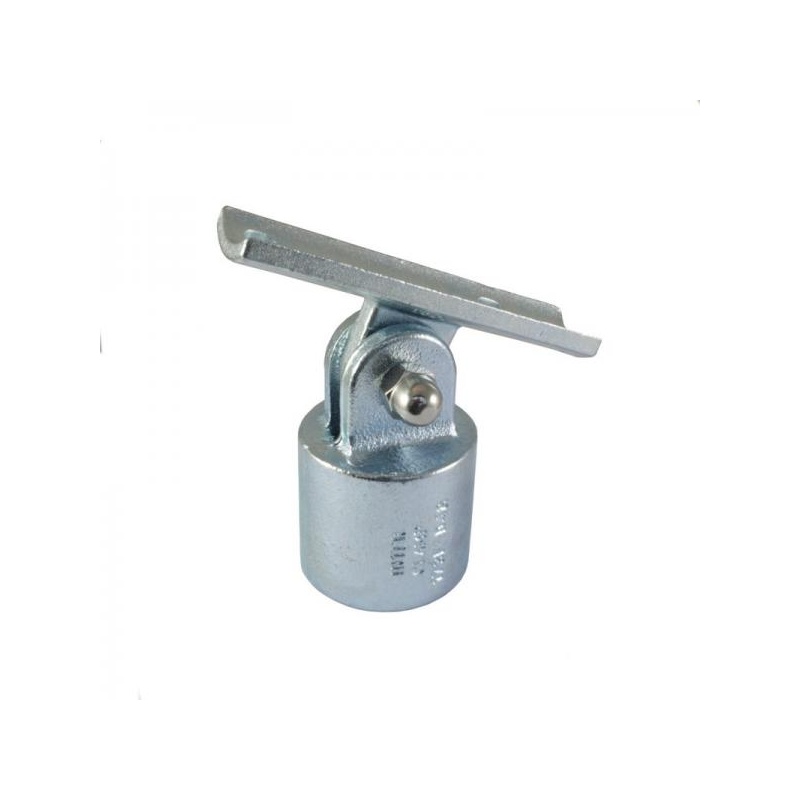

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design.

Add-on Crossover 90°. Same tubefitting as type 28 but this tubefitting can be placed on an existing construction by means of a foldable part.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Slope Elbow 90° Variable angle 0° - 11°. Elbow joint fitting used as an end fitting for the top rail up to 11°.

Adjustable Short Variable angle 45° - 60°. This adjustable angle clamp is used to join tubes between 45° and 60°. Use for diagonal braces, struts and an angled top rail joint to vertical posts on stairs.

Butt joint for sloping sites, adjustable from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp cannot be used where through tube (sloping in photo) has to be joined within the fitting.
