Climbing Net - Rope Pyramid Nix

SKU: 8212
Unit: pc
Delivery time: 6 nädalat

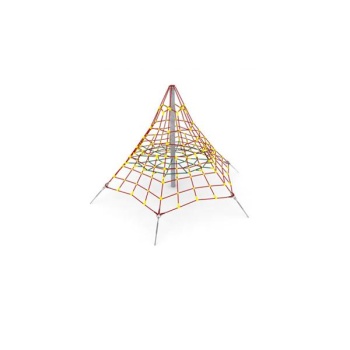

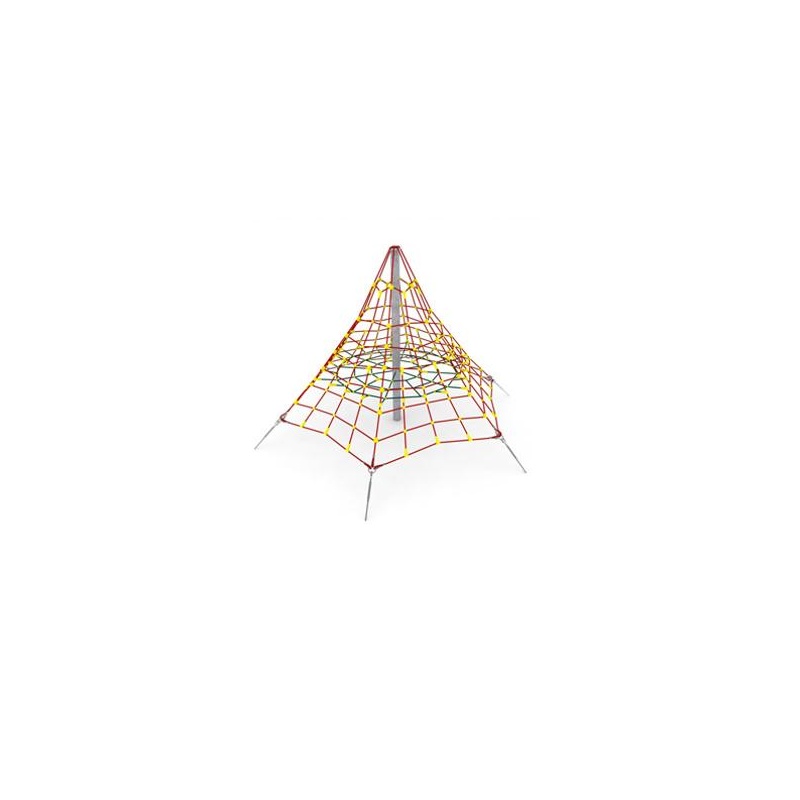

Climbing net - rope pyramid "Nix"

- suitable for the age group: 3-14 years
- maximum fall height: 1m
- dimensions: height x width x length: 3m * 5m * 5m
- Hexagonal pyramid with 6 main lines
- 3D spatial climbing net with 2 net platforms / horizontal surfaces at different heights (1m and 2,5m)
- a cable structure is attached to the mast so that the ropes are tight
- the amount of rope used is 316m
- weight: 350+1550kg

Ask for an offer!

Add to inquiry
Similar products
Hemisphere Net Climber

- users’ age group: 5 to 14 years
- max. fall height: 1,20 m
- product dimensions: (length x width x height) 3,09 x 3,09 x 1,31 m
- installation area: (length x width) 6,01 x 6,01 m
- construction made of stainless steel and plastic connectors.
- Ø16 mm PP ropes with galvanized steel wires
- the set includes foundations made of concrete class C25/30

Ask for an offer!
SKU: 81260B ,   Delivery time: 2 kuud
Climbing net - rope pyramid "Sinope"

- suitable for the age group: 3-14 years
- maximum fall height: 1m
- dimensions: height x width x length: 4.5m * 8m * 8m
- Hexagonal pyramid with 6 main lines
- 3D spatial climbing net with 2 net platforms / horizontal surfaces at different heights (1m and 2,5m)
- a cable structure is attached to the mast so that the ropes are tight
- the amount of rope used is 316m
- weight: 500+1550kg

Ask for an offer!

SKU: 8211 ,   Delivery time: 2 kuud
Network pyramid "Umbriel".

Rectangular pyramid with 4 main lines.
The hot-dip galvanized cable construction consists of four main cables attached to the ground with rotary locks for tension correction.
Four rope walls are stretched between adjacent ropes.
An additional attraction is the horizontal rope plane at a height of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel straps.
The diameter of the rope is 16mm.
The rope connecting elements are made of plastic and aluminum.
The ties are anchored as reinforced concrete legs.
The ropes connected to the center post are connected to stainless steel elements.


Ask for an offer!
SKU: 8217 ,   Delivery time: 6 nädalat
Climbing net "Wega".

The main structural element is a steel column protected against corrosion by hot-dip galvanizing. The rope structure consists of main ropes lowered from the top of the mast.
At the bottom, the ropes are threaded around and attached to a rod.
The ring is made of stainless steel pipe.
The net is made of polypropylene rope reinforced with electro-galvanized steel cords.
The diameter of the rope is 16 mm. The elements connecting the rope are made of plastic and aluminum. The connecting elements of the rope rod are made of stainless steel.

Weight: 150+560kg


Ask for an offer!
SKU: 8404 ,   Delivery time: 6 nädalat
Rotating climbing net "Deneb"

The product combines the opportunity to climb and play like a carousel.

The main structural element is a steel post with a diameter of 168.3 mm, which is protected against corrosion by hot-dip galvanizing.
The foundation is made as a reinforced concrete base set at a depth of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel cords.
The diameter of the rope is 16 mm.
The tubular rings at the top and bottom of the device are made of stainless steel.
The elements connecting the rope are made of plastic and aluminum.
The connecting elements of the rope rod are made of cast steel and stainless steel.
Cast steel is protected against corrosion rubber paints.

Weight: 200 + 560kg

Ask for an offer!
SKU: 8802 ,   Delivery time: 6 nädalat
Rotating climbing net "Pankracix"

The product combines the opportunity to climb and play like a carousel.

The main structural element is a steel post with a diameter of 168.3 mm, which is protected against corrosion by hot-dip galvanizing.
The foundation is made as a reinforced concrete base that can be set to a depth of 1 m.
The net is made of polypropylene rope reinforced with galvanized steel cords.
The diameter of the rope is 16 mm. The tubular rings at the top and bottom of the device are made of stainless steel.
The elements connecting the rope are made of plastic and aluminum.
The connecting elements of the rope rod are made of cast steel and stainless steel.
Cast steel is protected against corrosion by painting with rubber paints.

Weight: 200 + 560kg

Ask for an offer!
SKU: 8804 ,   Delivery time: 6 nädalat
