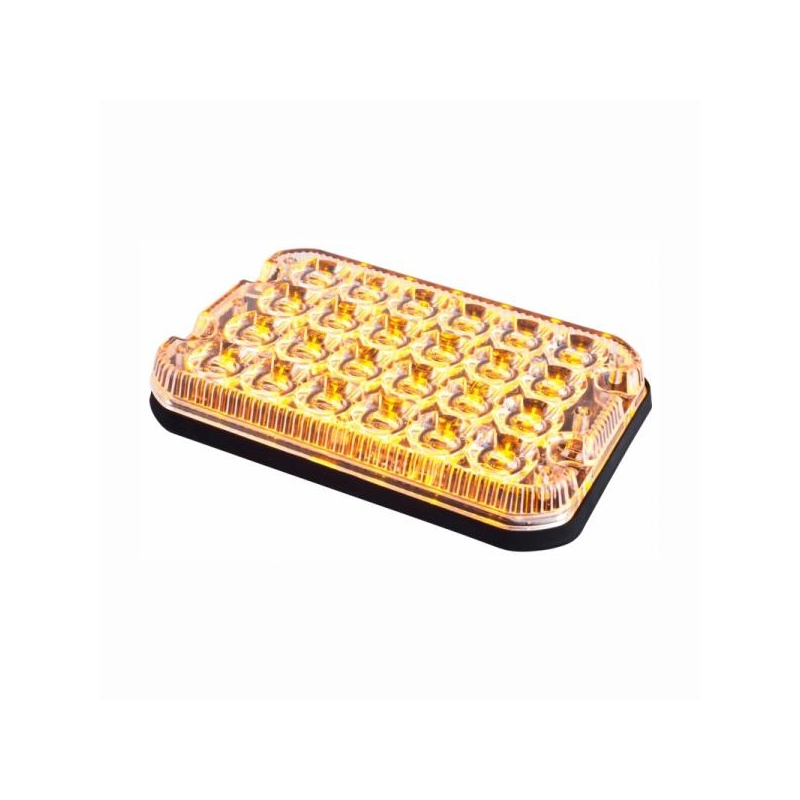

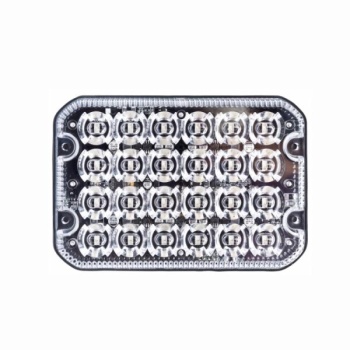

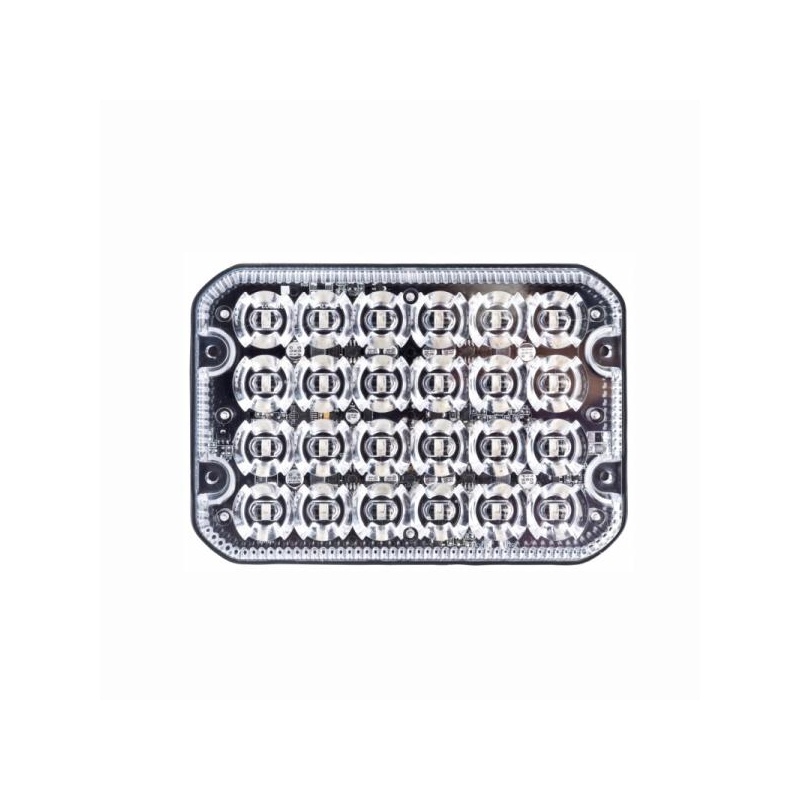

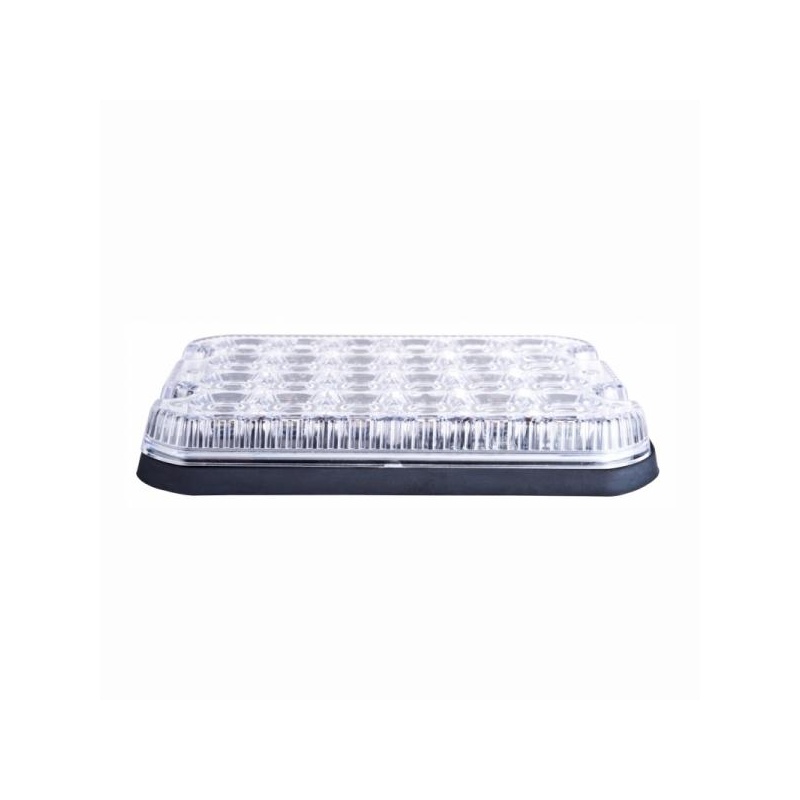

Grill lamp Super Slim 24 LED 12-24V - Amber

Size: 100x32x20mm
Voltage: 12-24V
amber 4xLED
18 flashing patterns
synchronizable
IP67
ECE R65, ECE R10

4x2W LED
amber
clear lens
12V, 24V
-40°C~ 60°C
CE,ISO900, R10
Flashing patterns: 10
95x27x8mm

Super thin 9mm
horizontal mount
amber leds (6)
transparent lens
23 different flashing alternatives with non-volatile memory function
max 15 flashers can be synchronized for simultaneous or alternating flash
solid aluminum housing: efficient heat dissipation and maximum durability
easy to install
self-contained: no external flasher
reverse polarity protection
max current: 1A@12VDC / 0,5A@24VDC
screw distance 102mm, weatherproof and vibration resistant design for external and internal use
ECE R65 (XA2); ECE R10; SAE J595 Class 1; CISPR 25 Class 2
IPX7, 0.5mm²
cables: 250mm

Amber beacon, clear glass, 3 EffectLEDs, 5 different flashing alternatives, several flashers can be synchronized together, surface mounting
12-24V
ECE R-65, IP67. screws 77mm apart

. LED Power: 4pcs*3W Cree, amber
. Voltage: 12-24Volt DC
. Waterproof: IP67
. Certificate: ECE R65 Single Flash, ECE R10
. SAE J595 CLASS1 Double Flash
. Material: PC lens, aluminum base with 3M sticker
. Flashing: 19 patterns, single, double, alternate flash...
. Function: With memory, Flashing at the same time, Flashing alone
. Five wires: Red-Positive, Black-Negative, Yellow-Switch, White-Input, Gray-Output
. dimensions: 99x30x10mm

The OPTIBEAM FLEX LM6 warning light offers completely new possibilities in terms of installation location. The light, which can be installed on surfaces curved up to 120 degrees, can be installed, for example, on the support leg of a crane, on the corners of a vehicle, or on other surfaces where a light with a straight and rigid body could not be used before. The design is aerodynamic and takes into account today's demands in terms of functions and attachments, including interference protection CISPR CLASS 3 (no radio interference) and ECE R65 class 2 (allowed in traffic both day and night), as well as IP67 protection class against water and dust. In addition, the FLEX LM6 has dual memory with separate wiring to quickly switch between steady light and warning light modes.

- Dimensions: 126.8 x 30.2 x 10.7 mm
- Bends up to 120° to fit a curved mounting surface.
- made of Dow Silastic silicone
- aerodynamic: minimal wind resistance
- screw fastening with glue, screw covers
- white glass.
- 6 High-Power LEDs
- 20 flashing modes, double memory, synchronisable: up to 20 lights
- short circuit protection, weatherproof, vibration resistant.
- working temperature: -40° ... +65°C
- Certificates: ECE R65 Class 2, ECE 10, SAE J595 Cl.1, SAE J845 Cl.1, CISPR25 Cl.3, CA13
- Cable length: 300 mm
- Voltage: 12/24V
