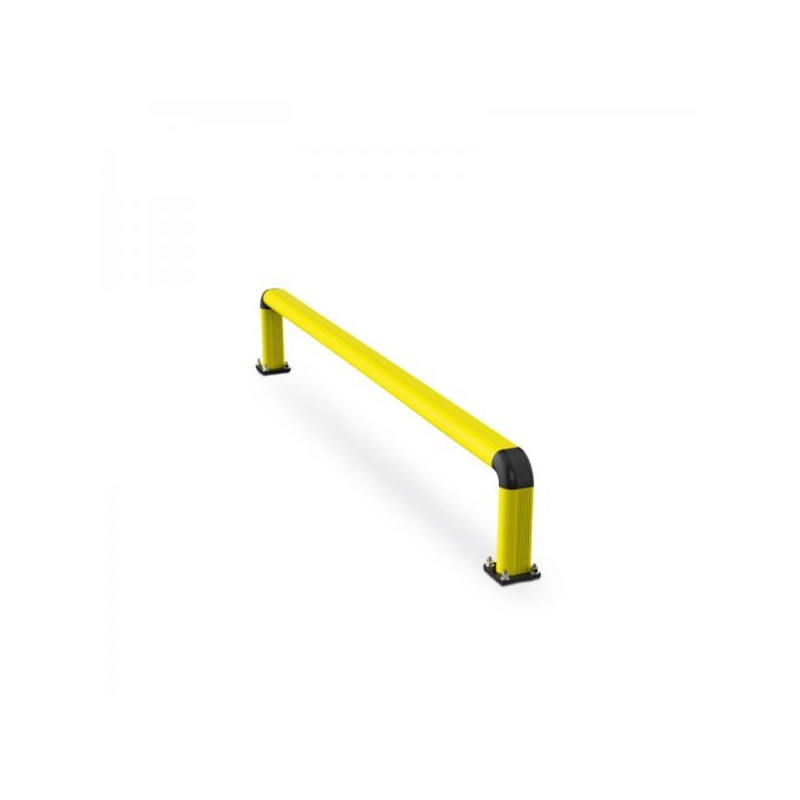

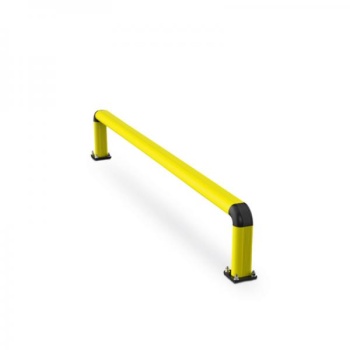

Rack end Barrier ø90 L2400 h350 mm

Low guards are intended for separation and protection in areas where heavy loads are handled.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 5400 J
- dimensions: Ø150 (P) 1000 (K) 200 mm
- environment: −10 ºC to 60 ºC
- attached to the floor with chemical anchors

Sales unit: etc.

Double horizontal borders provide protection in areas with high traffic congestion and heavy vessels.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions: Ø150 (K) 500 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3400 J
- TÜV certified according to DIN EN 15512: 2010-09
- environment: −10 ºC to 50 ºC
- minimum order quantity: 2 meters
Fastened to the floor with M12 anchors (included) and with chemical glue (not included)

Minimum order quantity: 2 meters

Innovative protective barrier for areas where heavy loads are handled. First barrier in the world with a lower rail height that can be adjusted on-site according to the most critical areas to be protected and the type of trucks and forklifts used by the end user. Thanks to the robust external connection systems, the barrier is easy to assemble and the post better supports the entire structure. Solution suitable for heavy impacts at a low height that also offers protection to pedestrians thanks to the handrail at human height.
– color: yellow RAL 1018, black RAL 9005
– impact tolerance : 8700 J
– dimension: Ø150 (H)1100 mm
– minimum order: 2 meters
– enviroment: −10 ºC kuni 60 ºC
– sales unit: linm

New pedestrian safety barrier suitable for areas where heavy loads are handled. The barrier has a double profile which is highly flexible and more resistant to shocks. The front fixing of Bflex profile on the vertical column ensures the maximum protection both over the entire lenght of the guardrail and on its external corners. 2000 mm modules with continuous fixing according to customer requirements. Fixing accessories and shock absorber pad included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: H 1100 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 7900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sale unit: linm

Plastic crash barriers are extremely flexible and a good shock absorber, providing protection in a busy environment where heavy vessels are handled.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: 450 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sales unit: linm

Gate with lift opening. Equipped with ergonomic handle and safety lock, allowing easy passage of pedestrians and trucks. Solution that can be combined with the Pedestrian 150 protective barrier and link system. Minimum width 1100 mm, maximum width 2000 mm. Fixing accessories included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 650 J
- dimensions: ø90 (H) 1150 mm
- environment: −10 ºC to 50 ºC
