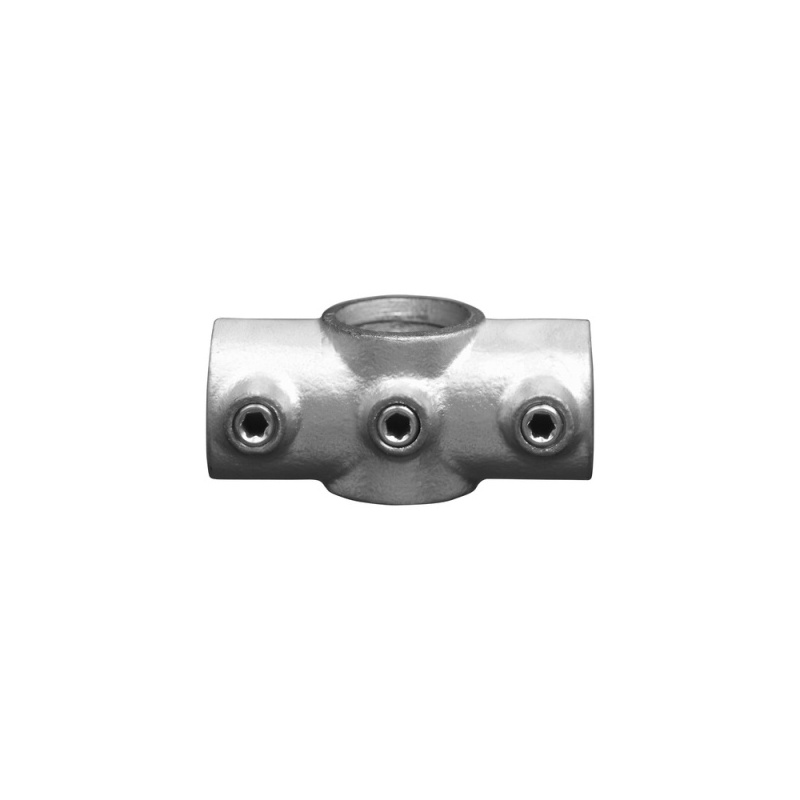

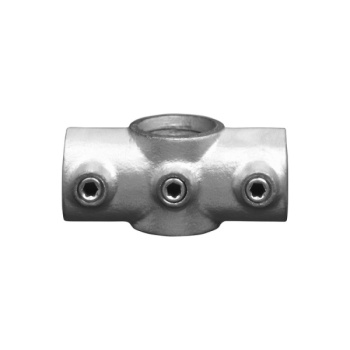

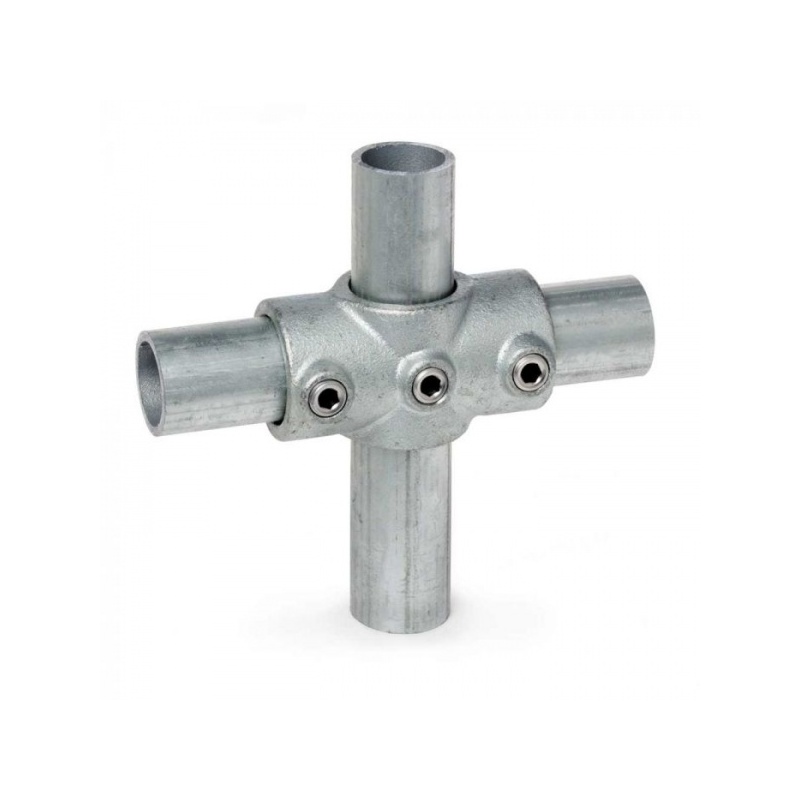

Type 22, Two Socket Cross Ø60,3 mm

Round pipe galvanized D=60.3 mm wall thickness 2.0 mm
maximum length 7 m
maximum length 2m for shipping with the courier!

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Three Way Top Corner. Corner joint (90°) clamp used for top rail corners and any other rectangular system.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 mm and vertical Ø42.4 mm.
