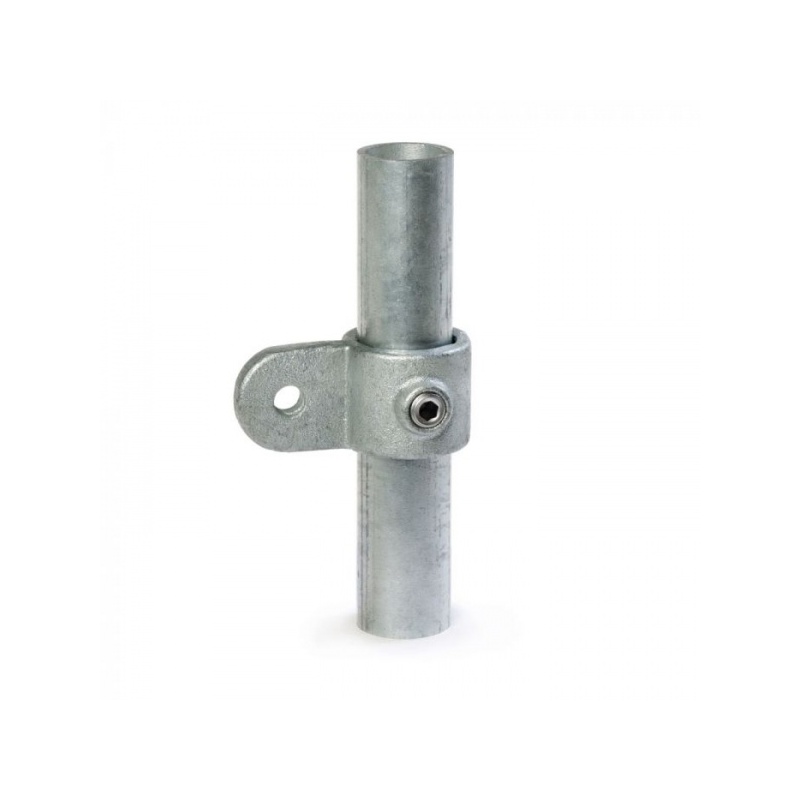

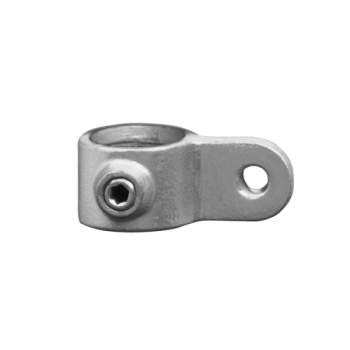

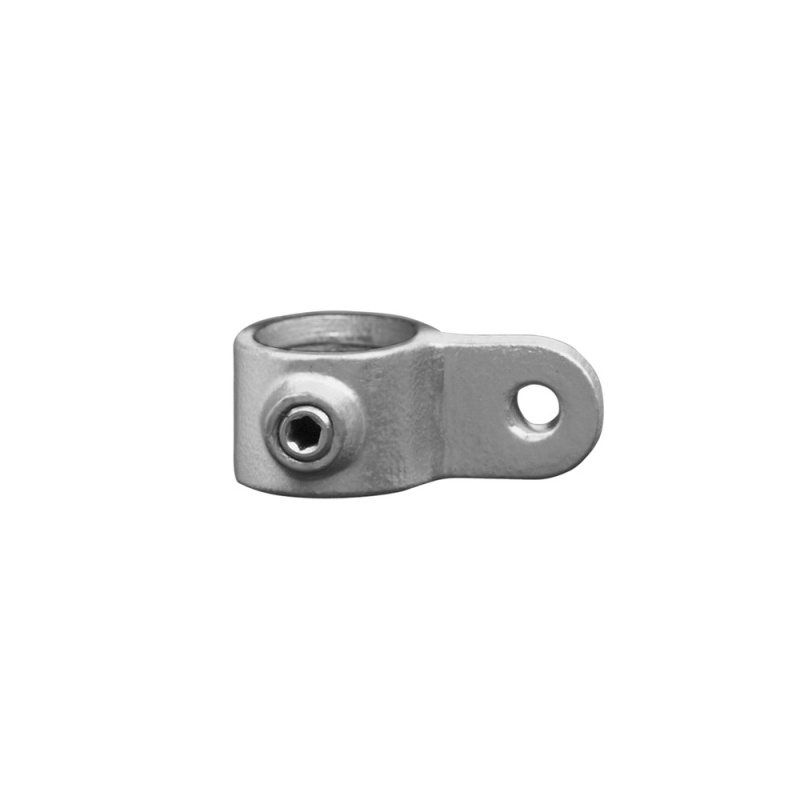

Type 36, Male Single Lug Ø60,3

Saddle Clamp. Our steel cap brackets are electrolytically galvanized and therefore rust-resistant. These so-called single-lip cover brackets are available for tube sizes 21.3 mm up to 60.3 mm. Extremely suitable for mounting blades on a tubular frame base.

Two Socket Cross. 90° joint clamp between the middle rail and an upright on railings.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60.3 and vertical Ø48.3mm.

Long Tee. Similar to Type 2. This fitting can be used where a join is required in the horizontal tube.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60,3 mm and vertical Ø48,3 mm.
