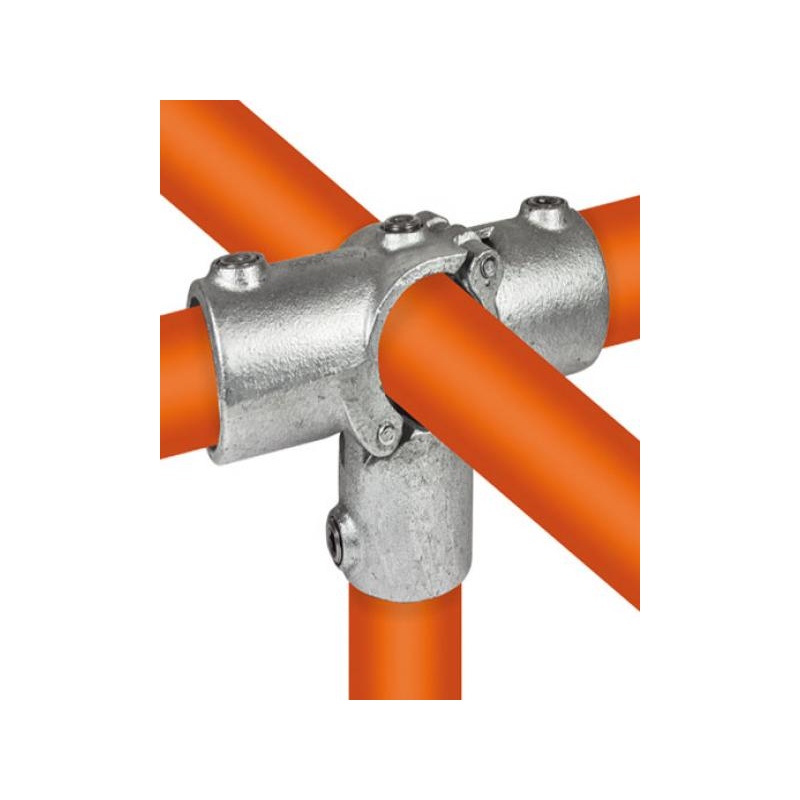

Type 24O, Add-on Side Outlet Tee Ø48.3 mm

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design.

Clamp-On Crossover. Open cross connection where the railing is placed in the connection and can then be secured.

Round pipe galvanized D=26.9mm wall thickness 2.6 mm
maximum profile length 6 m
maximum length for shipping is 2 meters!

Three-way elbow 90° - 40 mm. Angle connection clamp (90°) for corners of overheads and all other angled connections.

Two Socket Cross - 25 mm. 90°- joint clamp between the middle rail and an upright on railings.

Angle of continuous upright with lip - 25 mm. Corner connection (90°), where the vertical tube runs through the clamp.
