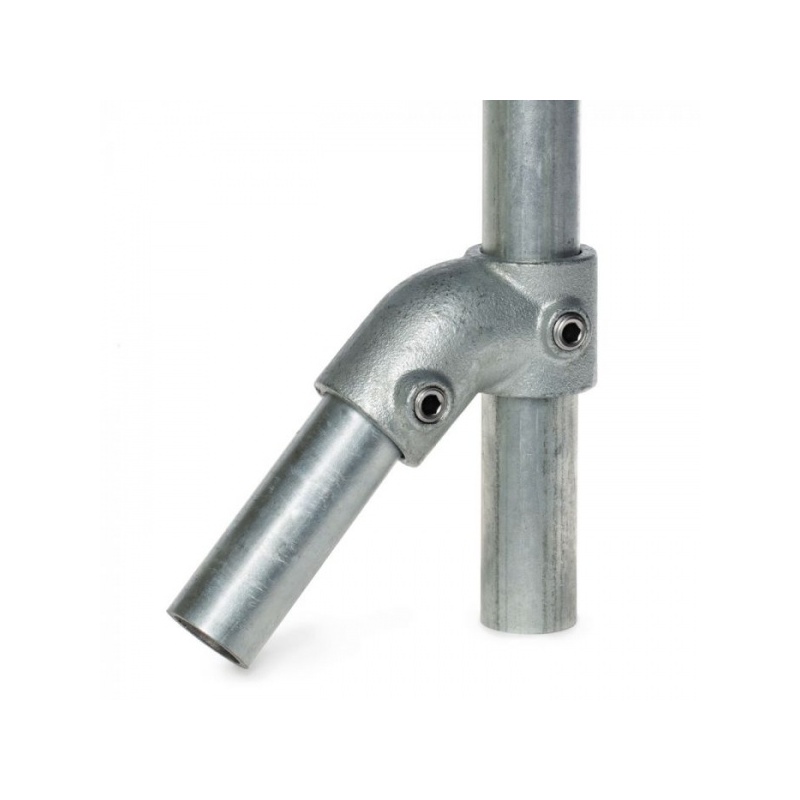

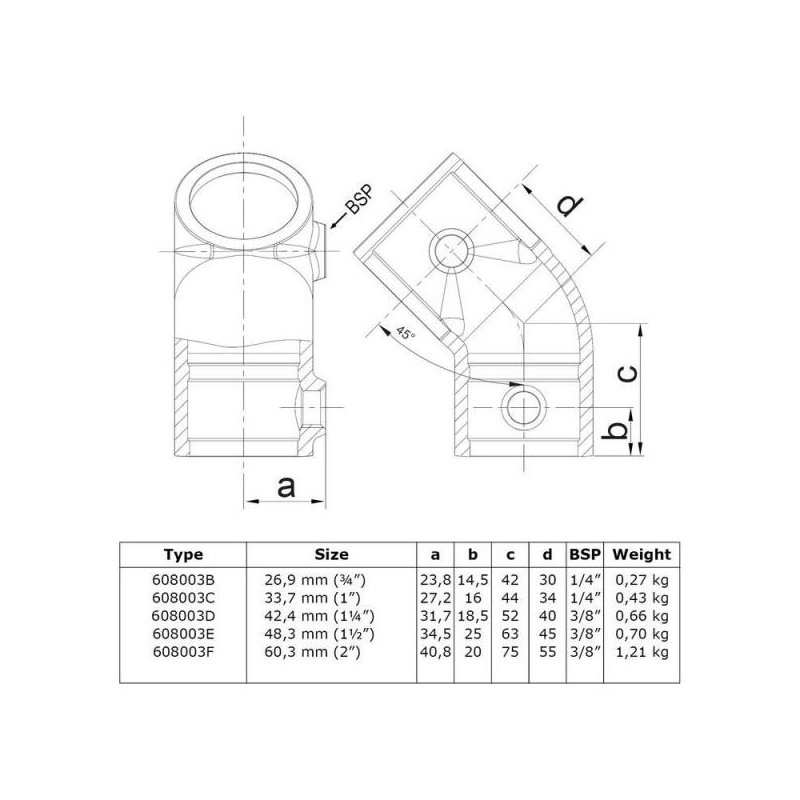

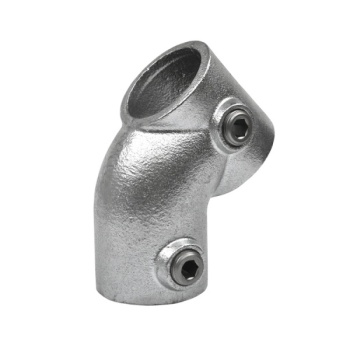

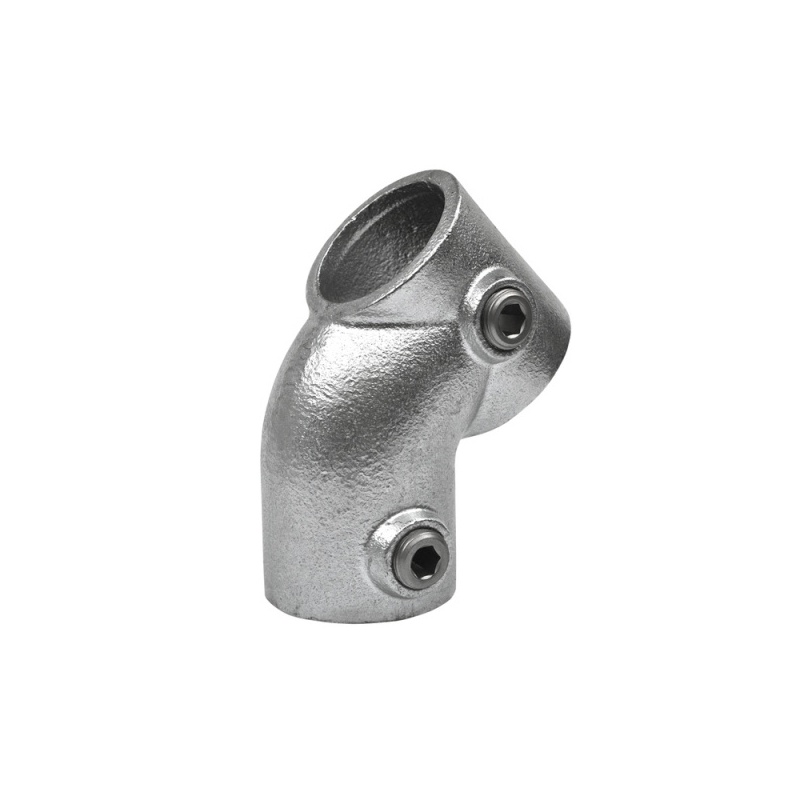

Type 3, Short T-clamp 45° Ø60,3

Square base plate. Use this tubefitting for positioning constructions. Due to the shape of the base plate, it can be fixed nicely on a surface at a 90° angle. Do not use it as a base for supporting safety railings or similar contructions.

Female Single Socket. One part of swivel fitting, not generally used alone.

Straight Coupling. Joint clamp for tubes of the same diameter. Do not use for heavy vertical loads. Alternative clamp is Type 9 used as an internal spigot.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Male Double Lug. Similar to Type 36 with two lugs on the same axis.

Corner Swivel 90°. Swivel fitting for variable angle fixing for a corner post.
