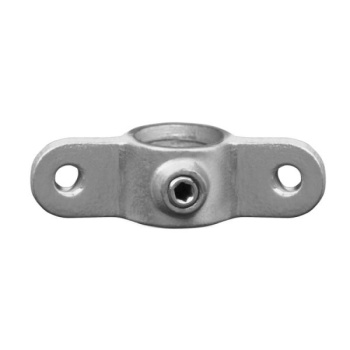

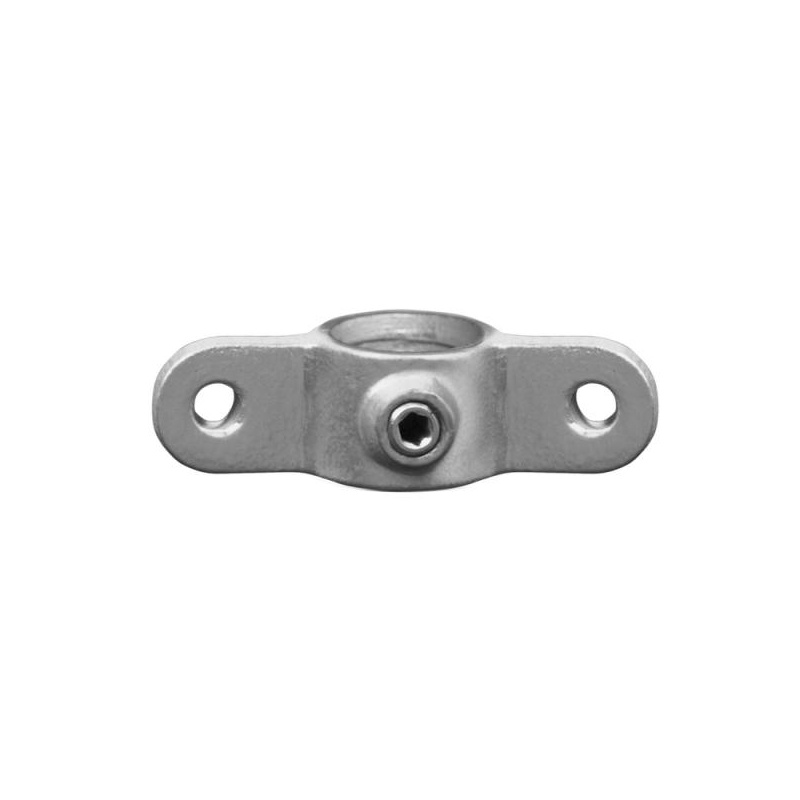

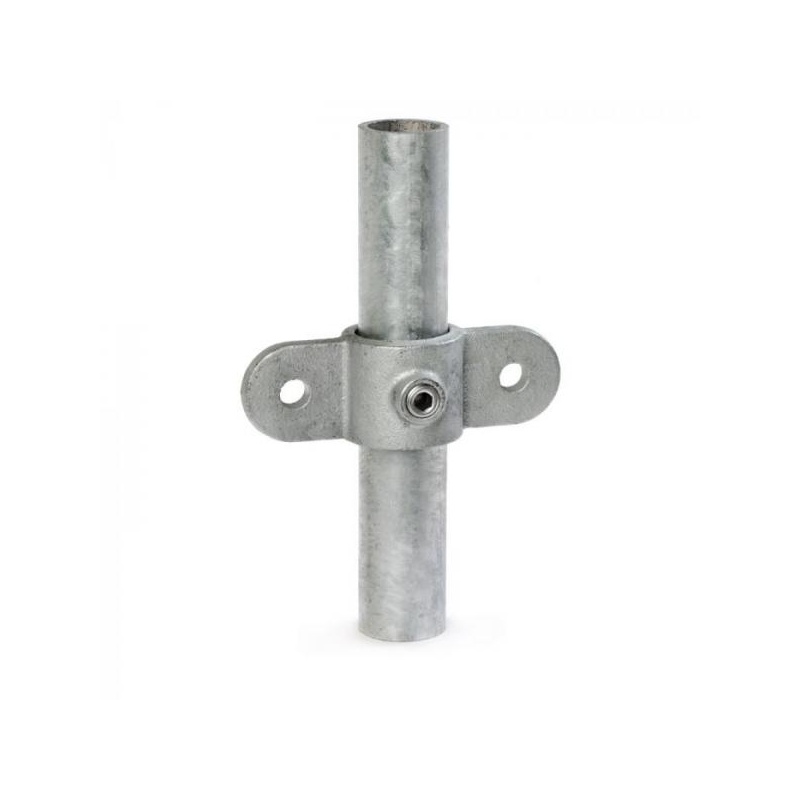

Type 38, Male Double Lug Ø60,3 mm

Swivel Base Plate (Unisize). For fixing structures to wall or floor, usually used with Type 42.

Square base plate. Use this tubefitting for positioning constructions. Due to the shape of the base plate, it can be fixed nicely on a surface at a 90° angle. Do not use it as a base for supporting safety railings or similar contructions.

Clamp-On Crossover. 90° crossover joint fitting for adding to an existing structure.

Female Single Socket. One part of swivel fitting, not generally used alone.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 mm and vertical Ø42.4 mm.
