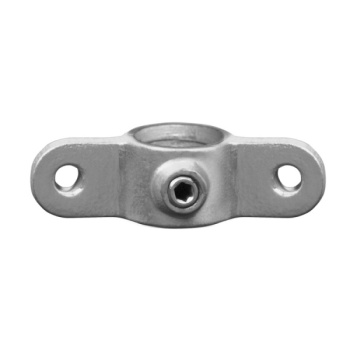

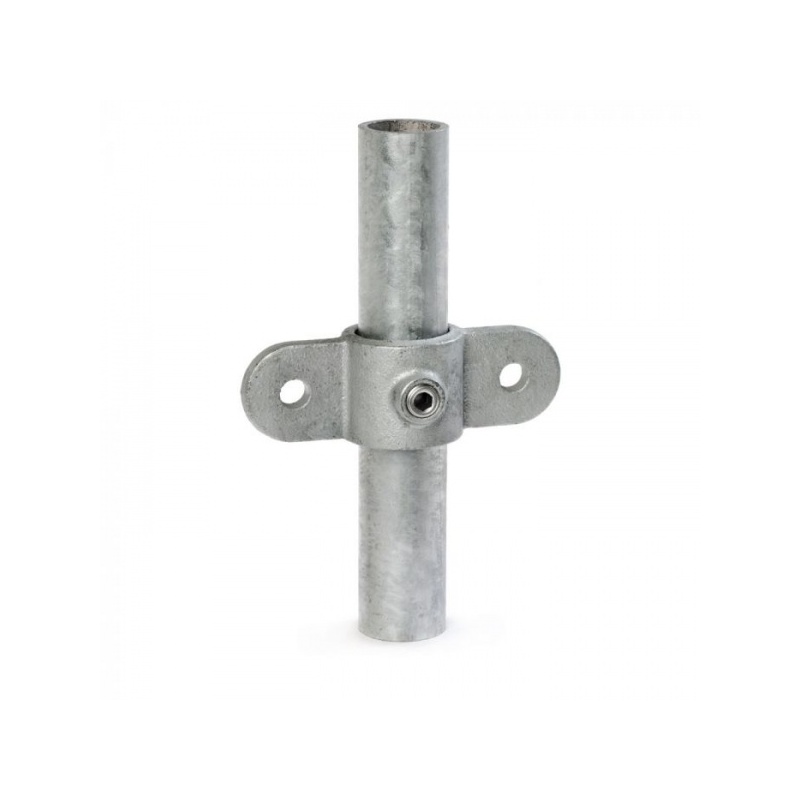

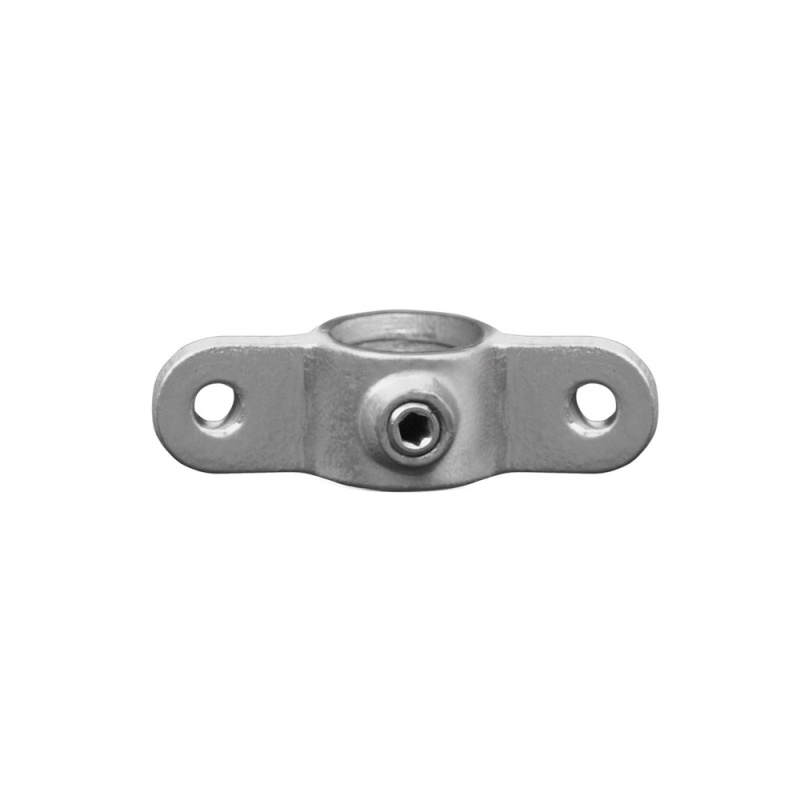

Type 38, Male Double Lug Ø33,7

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Horizontal Base Railing Support. Side-mounting clamp for vertical posts. tube cannot pass through this clamp. Designed for palm fixing guard railings and balustrades to walls, parapets, steps and ramps.

Galv. Heavy Duty Side Palm. Extra heavy fascia attachment for vertical posts. This clamp is not suitable for continuous tubes. Intended for the manual attachment of safety rails and balustrades to the walls, parapets, stairs and ramps with flat mounting.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Corner Swivel 90°. Swivel fitting for variable angle fixing for a corner post.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)
