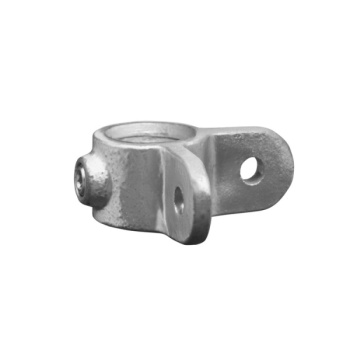

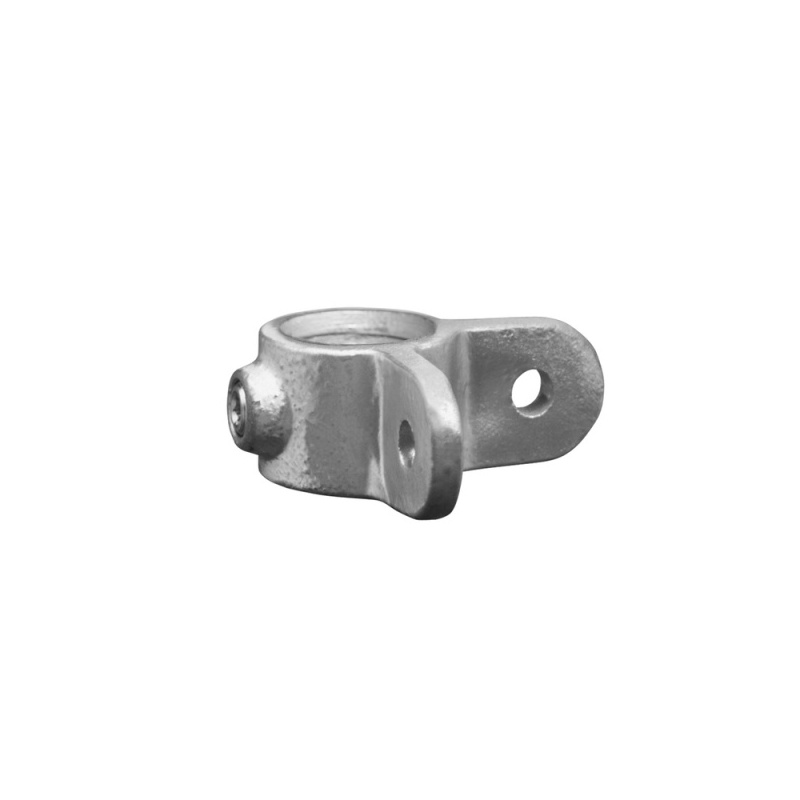

Type 40, Male Corner Lug 90° Ø26,9

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Two Socket Cross. 90° joint clamp between the middle rail and an upright on railings.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Single Swivel. Swivel fitting for variable angle fixing.

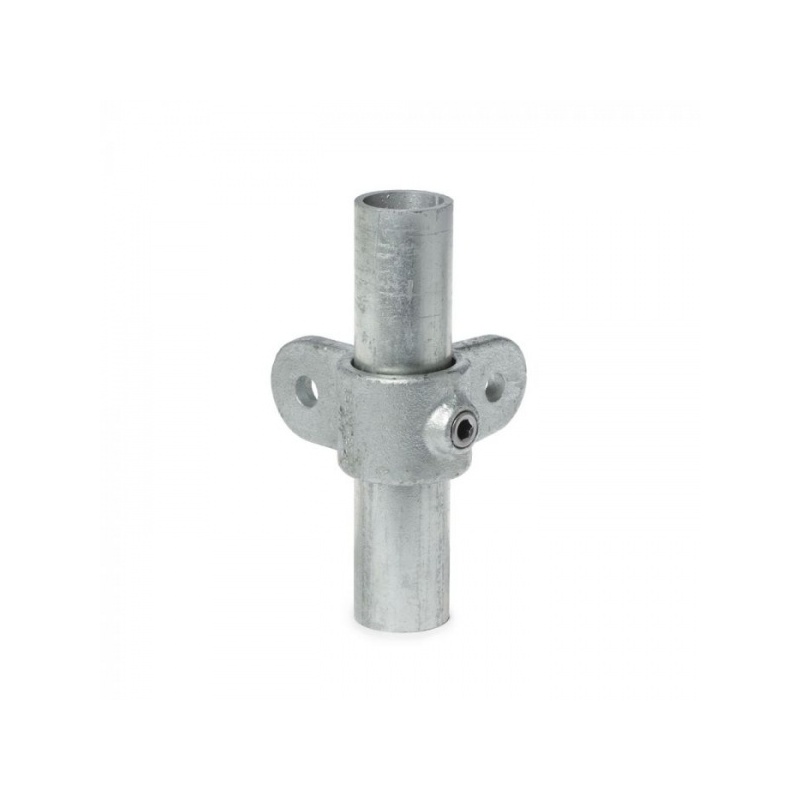

Collar Plate Double Side. Panel fixing with two lugs is also used for locking gates.

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters (HØ26,9 mm/VØ33,7 mm).
