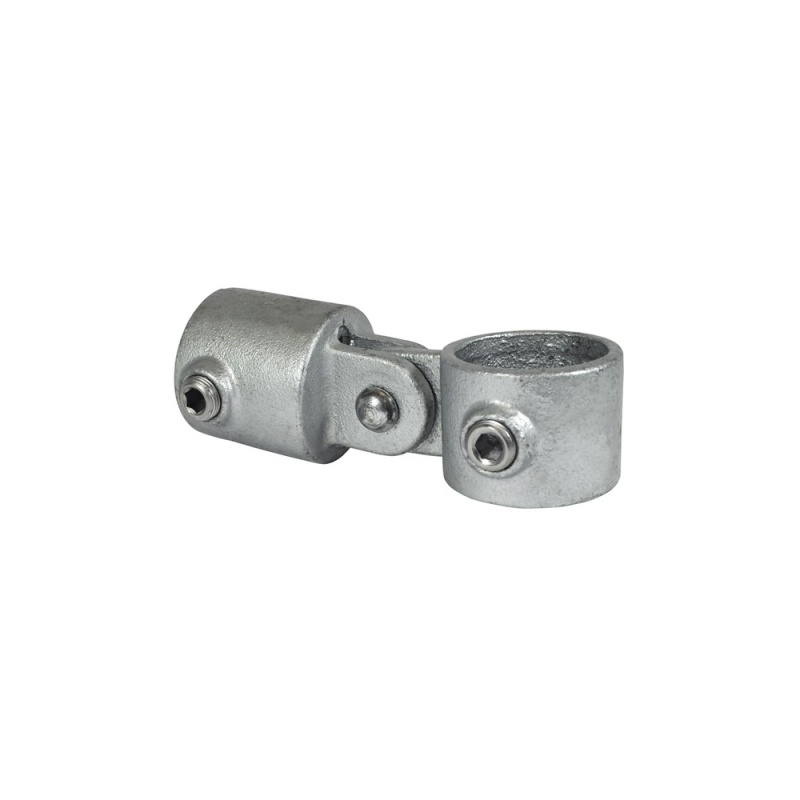

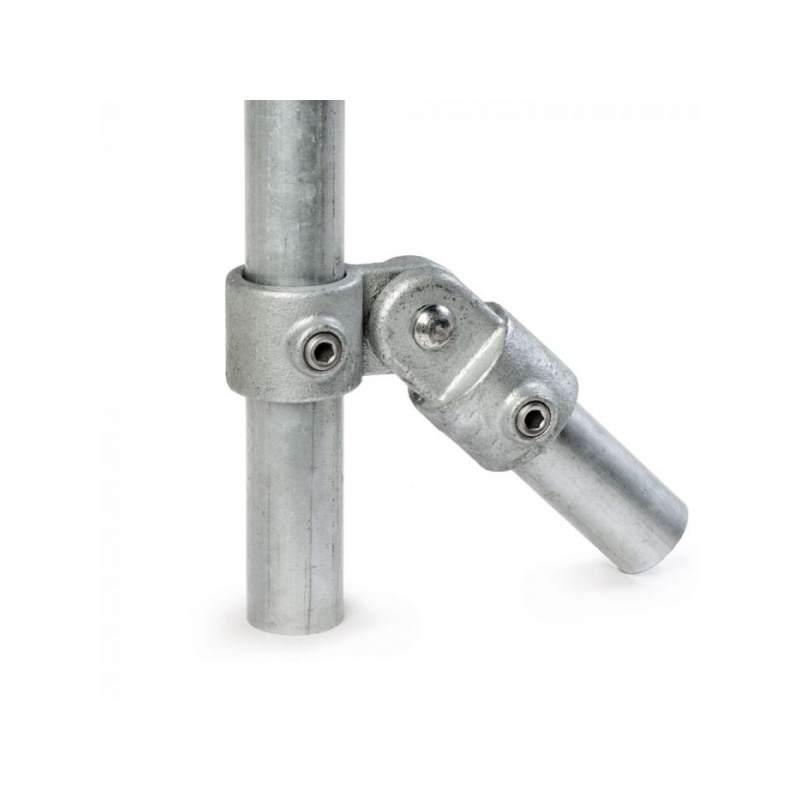

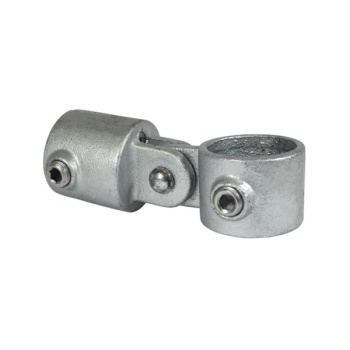

Type 44, Single Swivel Combination, Ø48,3 mm

Swivel Base Plate (Unisize). For fixing structures to wall or floor, usually used with Type 42.

Saddle Clamp. Our steel cap brackets are electrolytically galvanized and therefore rust-resistant. These so-called single-lip cover brackets are available for tube sizes 21.3 mm up to 60.3 mm. Extremely suitable for mounting blades on a tubular frame base.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 and vertical Ø42.4mm.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Collar. Support fitting to increase the slip resistance of fittings that are under high loads.

Adjustable for slopes from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting. Type 253 may often be used as an alternative.
