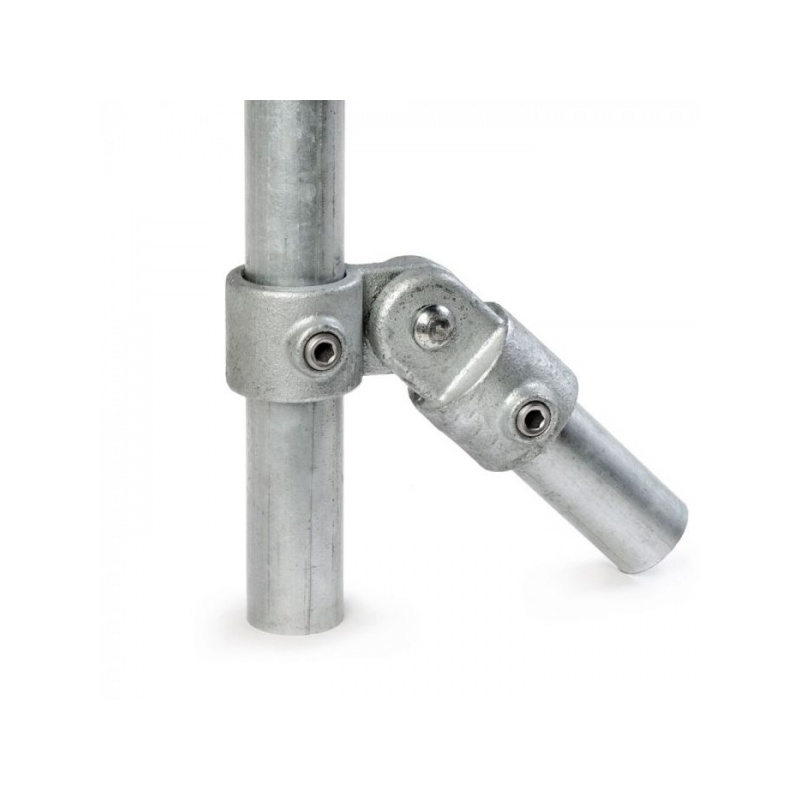

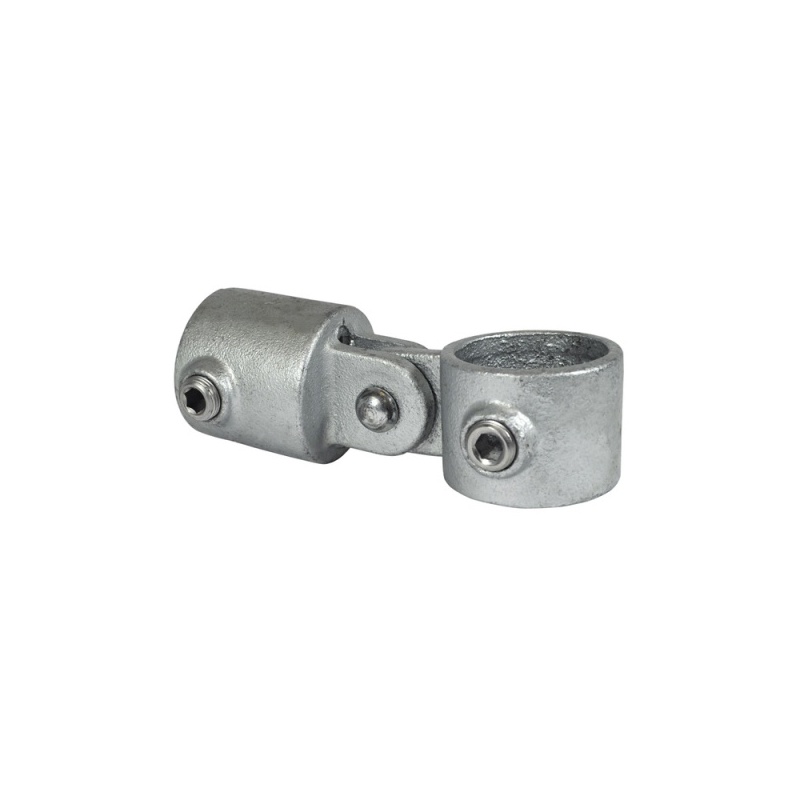

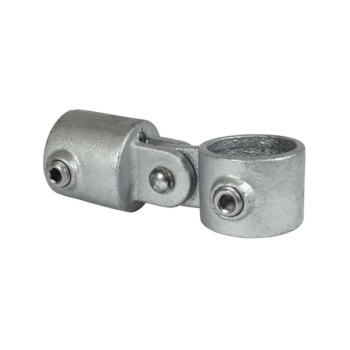

Type 44, Single Swivel Combination Ø60,3

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Short Tee. Provides a perpendicular connection between two tubes. Top fitting for straight and level railing uprights. This fitting cannot be used to join a horizontal tube within the fitting.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60.3 and vertical Ø48.3mm.

Short T-clamp 45°. Connects horizontal and vertical pipes at a 45° angle. The clamp is made of hot-dip galvanized malleable iron, durable, corrosion-resistant and long-lasting. Meets TÜV requirements.

Reducing Short Tee. Used as Type 2. Rediction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 mm and vertical Ø42.4 mm.
