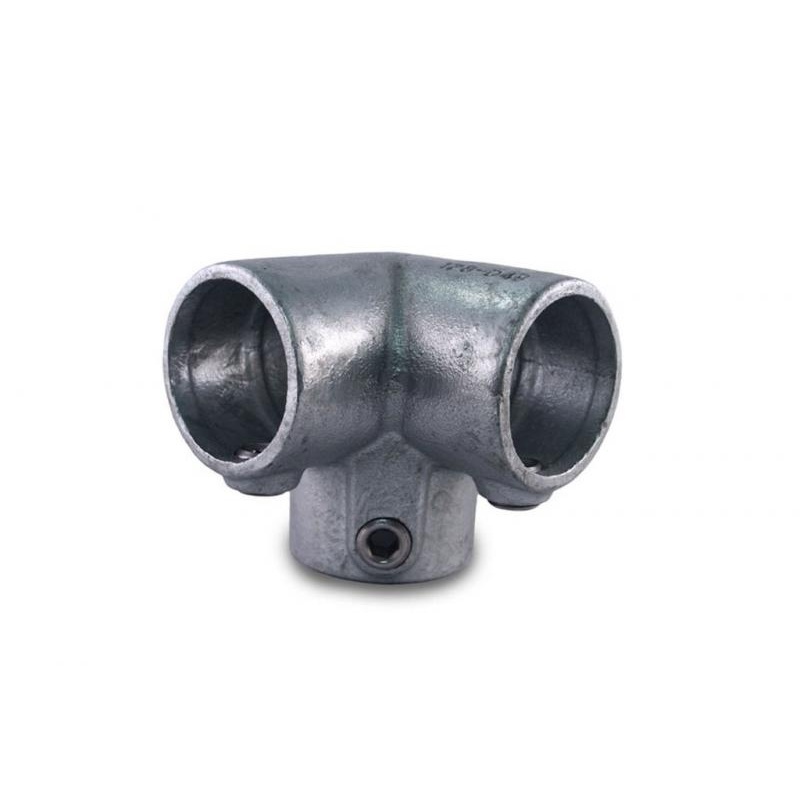

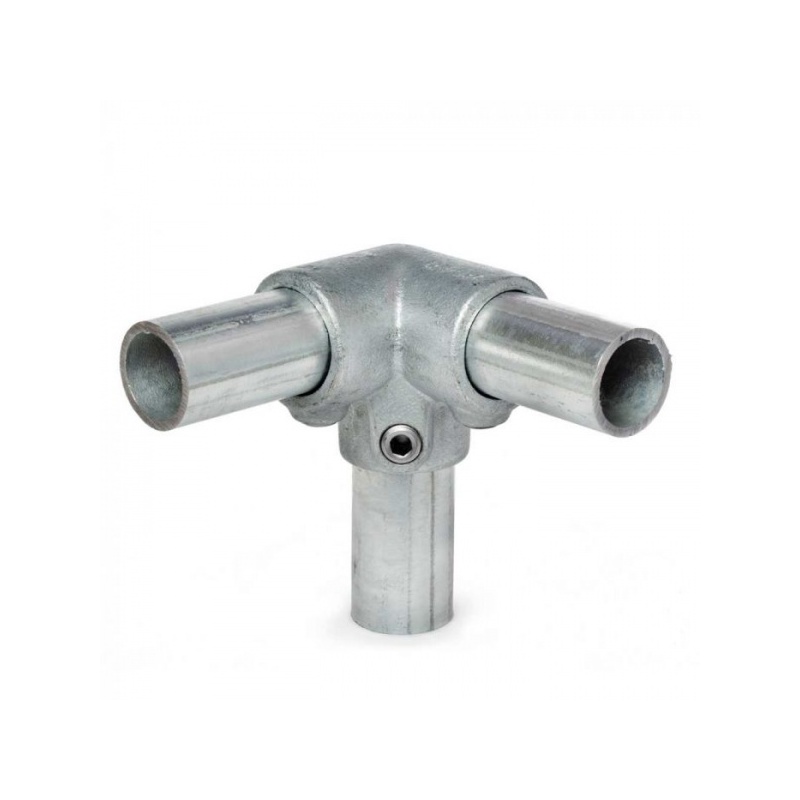

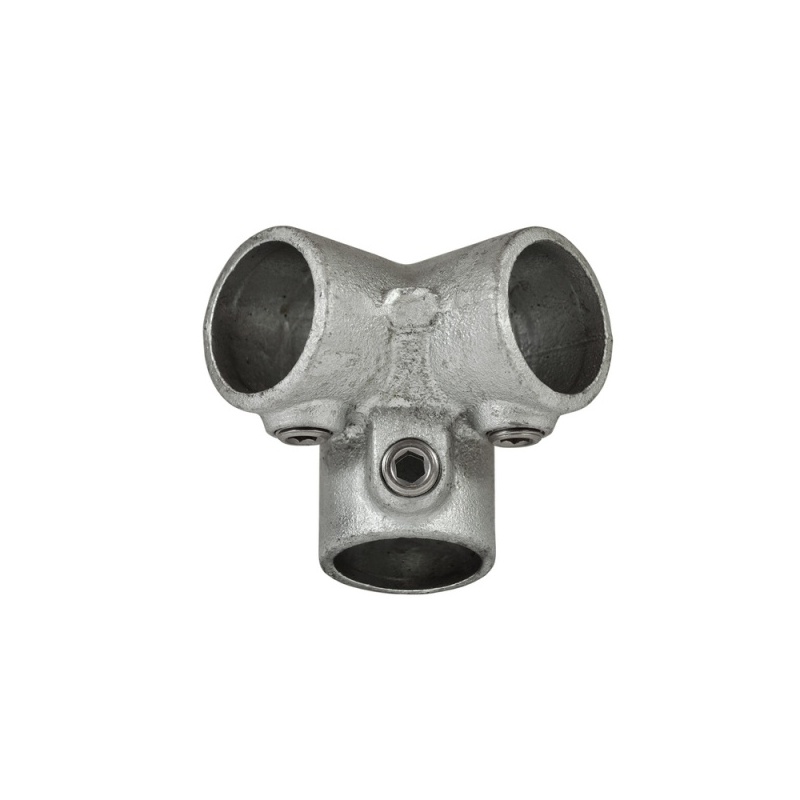

Type 18, 3-Way Elbow Ø60,3

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Short Tee. Provides a perpendicular connection between two tubes. Top fitting for straight and level railing uprights. This fitting cannot be used to join a horizontal tube within the fitting.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Clamp-On Tee. Used for adding to and modifying an existing structure.

Clamp-On Crossover. 90° crossover joint fitting for adding to an existing structure.

Female Single Socket. One part of swivel fitting, not generally used alone.
