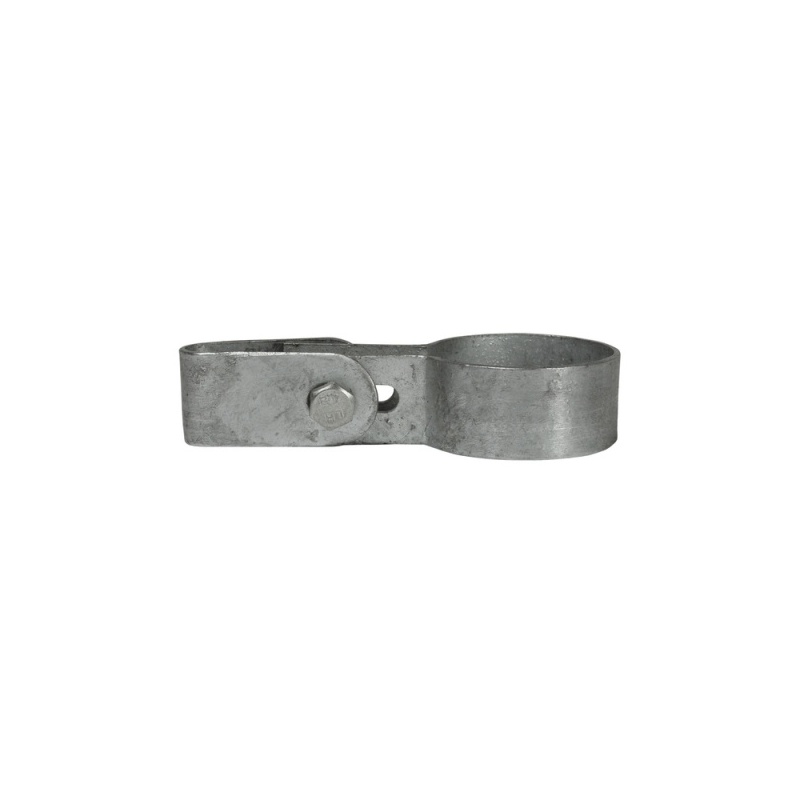

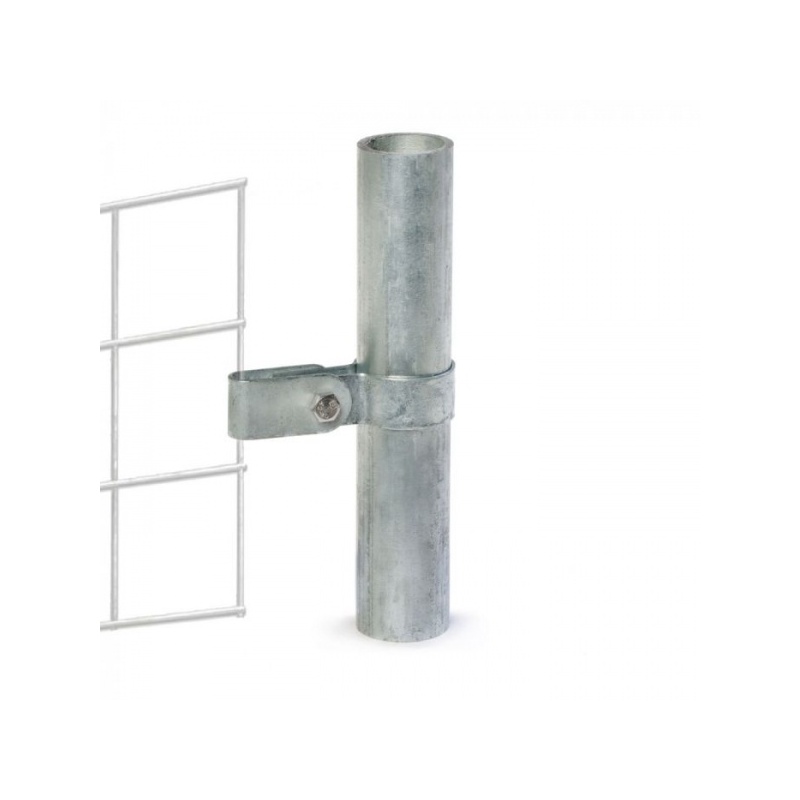

Type 70, Single Sided Panel Clip Ø48,3

Base flange for sloping sites, adjustable from 30° to 45°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Angle Cross 0°- 45°. Connection clamp between the middle rail and the railing posts of sloping railings up to 45°.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Combi Socket Tee and Cross. Frequently used for racking. The upright hole can be changed according to the application. For shelved racking, the outside hole is upright, and for pallet racking the upright is inside the carrying rails.

Long Slope Tee - Variable angle 0° - 11°. Similar to Type 2SE. This fitting can be used where a join is required in the horizontal tube.

Swivel Tee. Male spigot may be secured within another fitting for variable angles in hand railings for staircases, ramps and similar structures.
