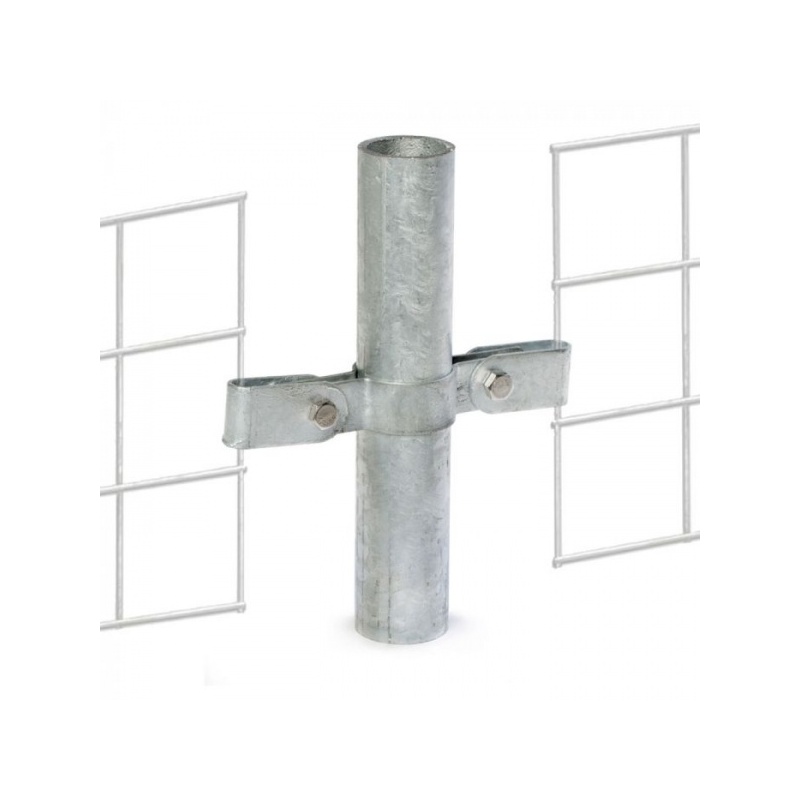

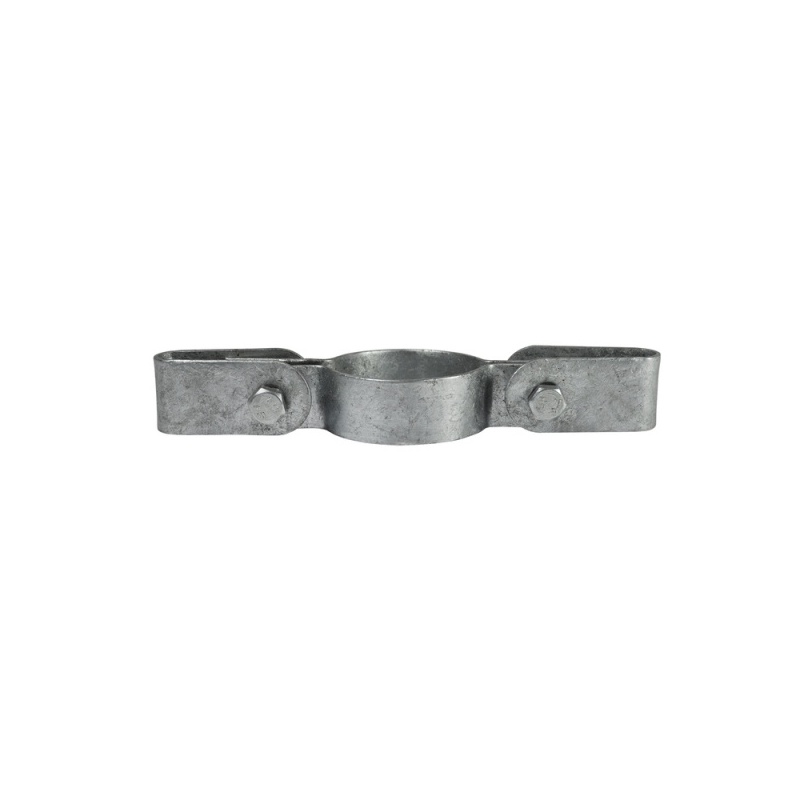

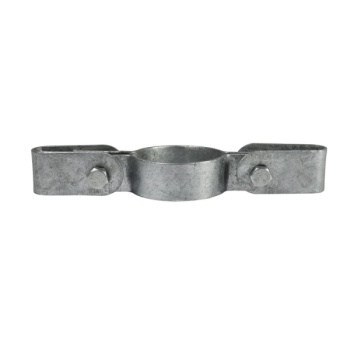

Type 71, Double-Sided Panel Clip Ø60,3

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Elbow 90°. Elbow joint fitting used as an end fitting for the top rail.

Straight Coupling. Joint clamp for tubes of the same diameter. Do not use for heavy vertical loads. Alternative clamp is Type 9 used as an internal spigot.

Four Socket Cross. 4-direction clamp used to fix uprights with 4 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Male Double Lug. Similar to Type 36 with two lugs on the same axis.

Double Swivel. Swivel fitting for variable angle fixing for two sides of the post.
