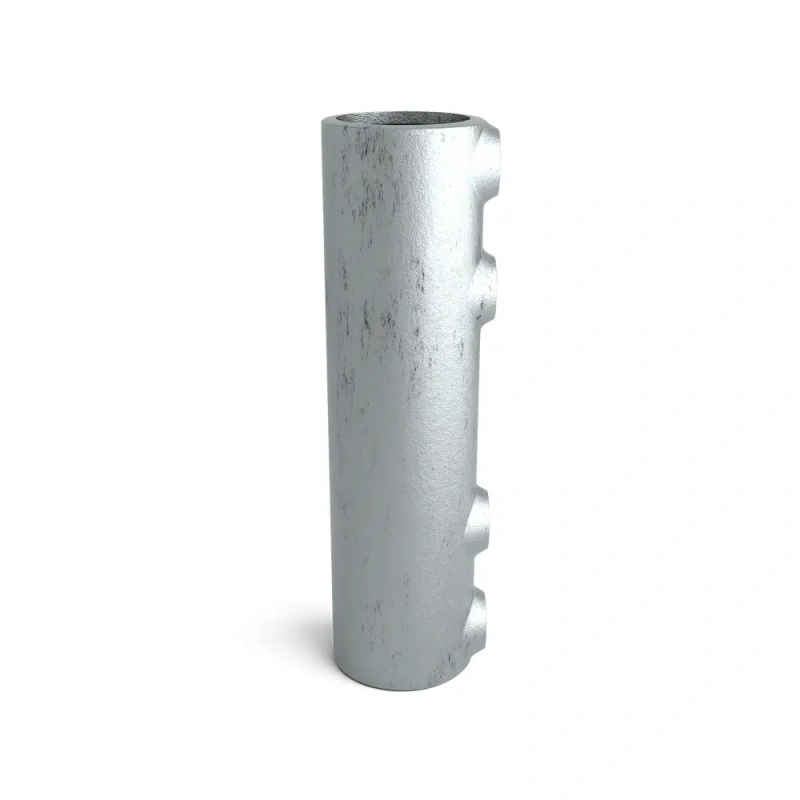

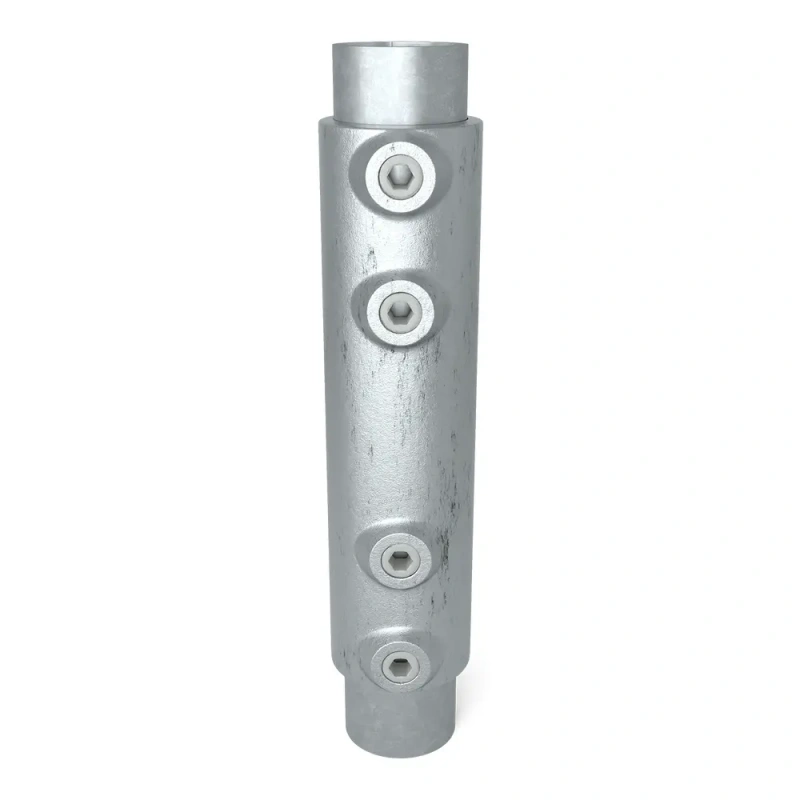

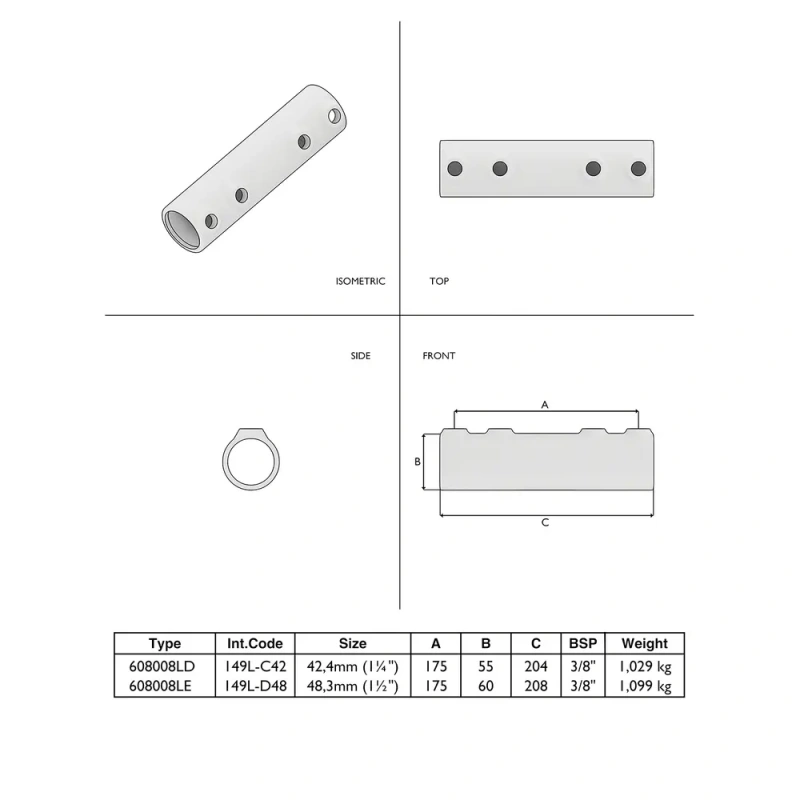

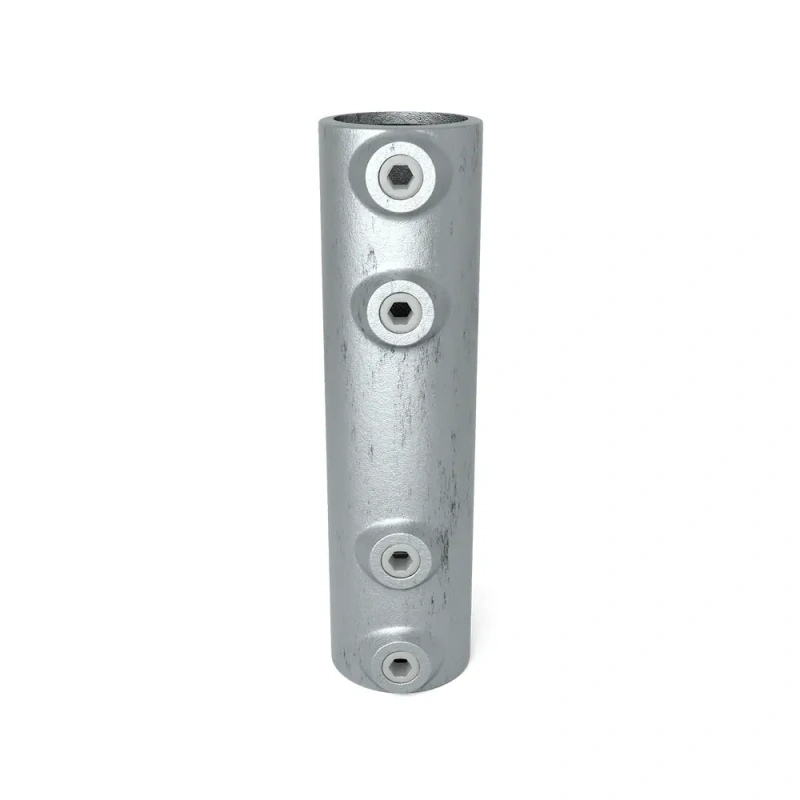

Type 8L, Straight Coupling Long Ø42,4

Slope Railing Base - variable angle 0° - 11°. Base fitting for railings designed on slopes up to 11°.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø48.3 and vertical Ø42.4mm.

Male Double Lug. Similar to Type 36 with two lugs on the same axis.

Side Palm. Side-mounting fitting for vertical post. The upright cannot pass through the fitting.

Internal Coupling. A streamlined flush joint in two tubes of the same size. Wall thickness must be 3.2 mm. Do not apply direct loads to this joint.

The 751 fitting is designed for intermediate support of horizontal galvanized handrail tubes where no joining of the tubes is required.
