Balustrade OP10

The OP1 handrail has smooth transitions and is designed for installation stairs and sidewalks.
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

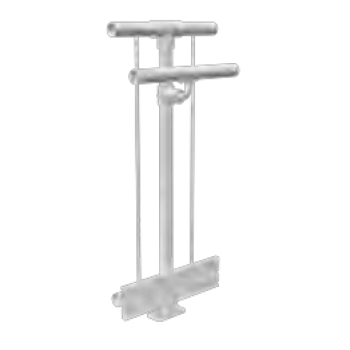

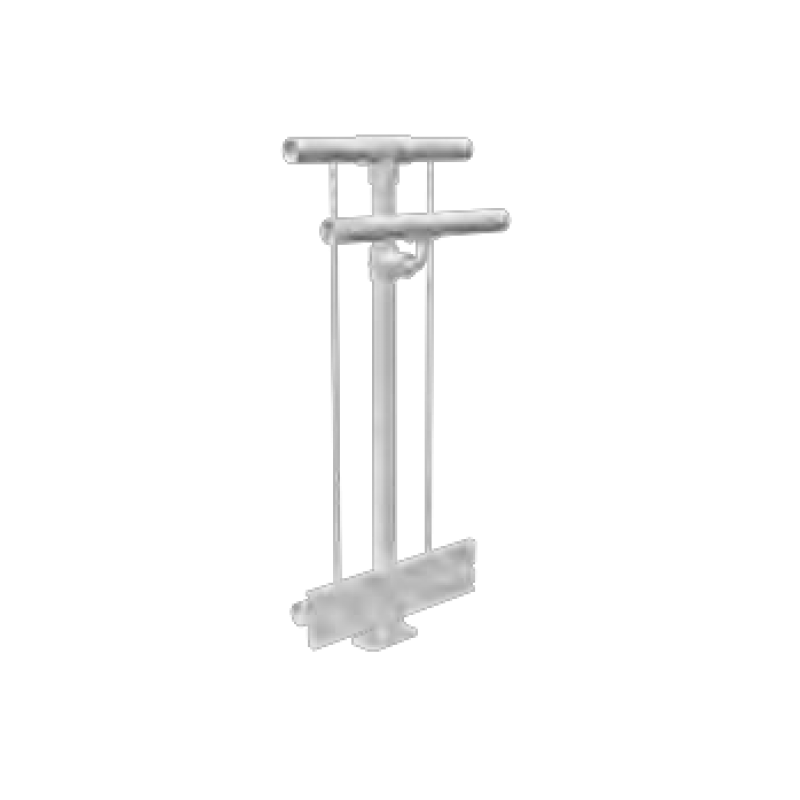

OP7 is a balustrade / single inline handrail for level and stair applications above one metre (FFL).
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

OP8 is a balustrade / single Inline Handrail & Kerbrail for level and ramp applications above one metre (FFL).
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

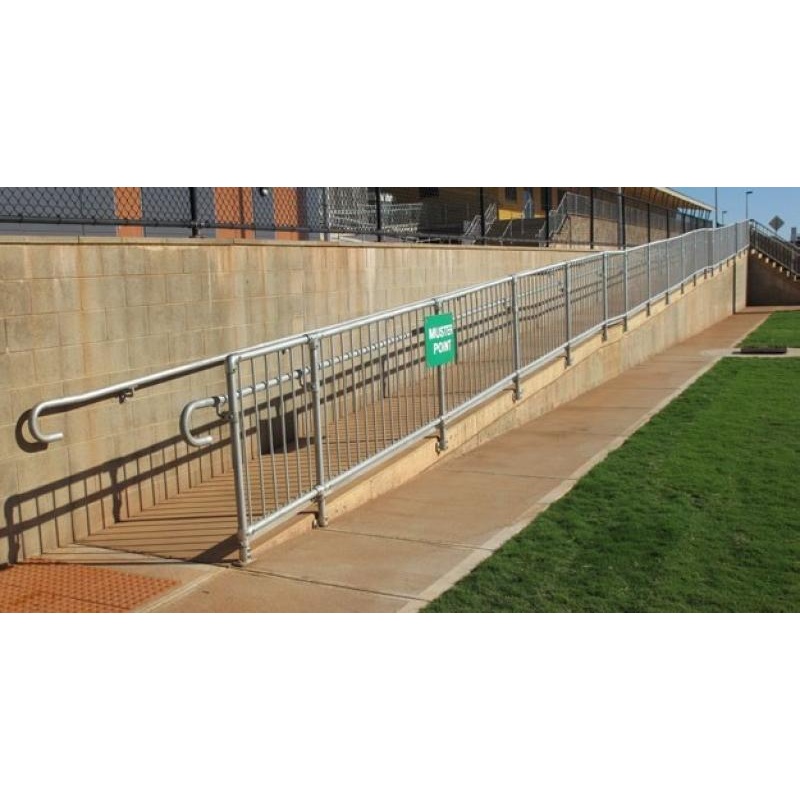

OP14 is a single Inline Handrail / Kerbrail For disabled ramps under one metre (FFL)
Smart clamps and a steel pipe with a size of Ø 48 mm are used for assembly. If desired, the safety barrier can also be assembled from Ø42 or Ø60mm pipe.
As a standard solution, the railings are hot-dip galvanized.

OP5 safety barrier module.
As a standard solution, the barriers are hot-dip galvanized.

Manual barrier with pneumatic spring and fixed pole support
Main support: Steel construction 120 x 80 mm square tube with base plate 360 x 360 x 8 mm
for plugging down, including 4 holes Ø 20 mm
for anchor, hot-dip galvanized and powdercoated red,
barrier arm can be fixed in open and closed position
Supporting post: Steel tube 70 x 70 mm
with base plate 220 x 220 x 8 mm, including 4 holes Ø 20 mm for anchor
Barrier arm: Thick-walled Ø 80 mm aluminium tube
powder-coated with red reflecting stripes
Locking mechanism at the post support
Total width: Clear width + approx. 180 mm
Height: approx. 950 mm above ground
Width options: 3000, 4000, 5000, 6000, 7000 mm

Locking mechanism:
padlock
triangular lock
Euro profile cylinder lock
