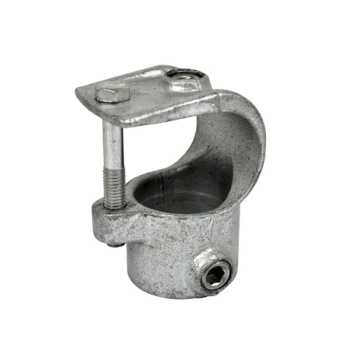

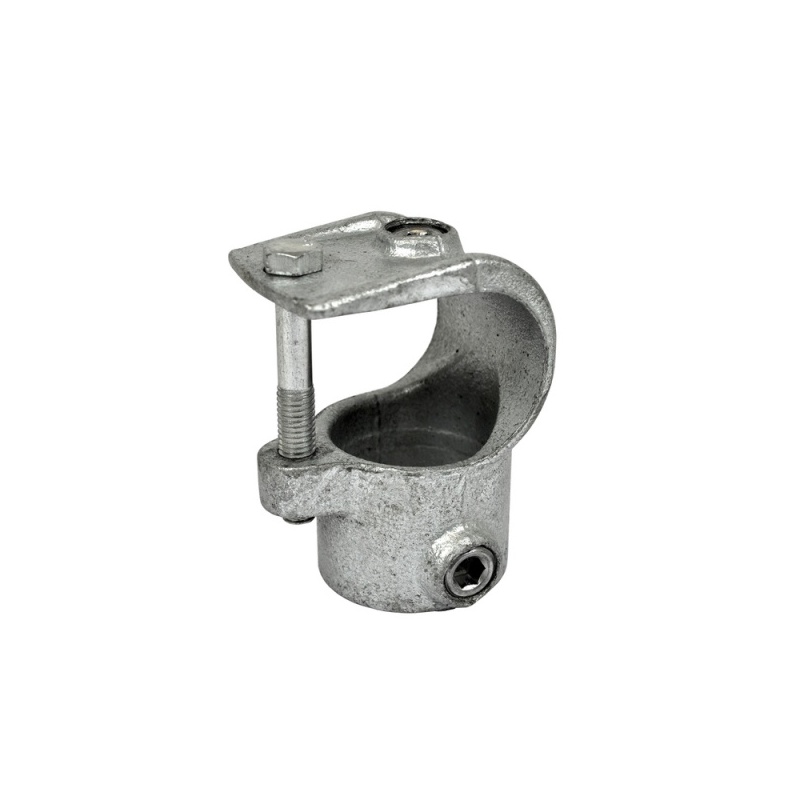

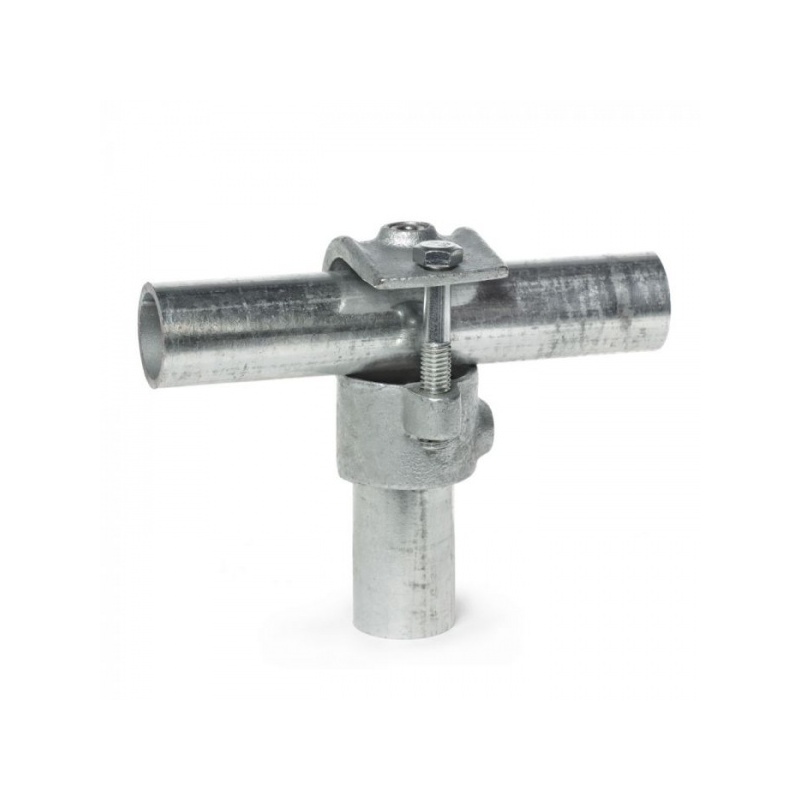

Type 32, Clamp-On Tee Ø60,3

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Corner With Trough Tube 90°. Often used on intermediate rail corners to match Type 18, tube passes through the clamp.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Clamp-On Crossover. 90° crossover joint fitting for adding to an existing structure.

Elbow 90°. Elbow joint fitting used as an end fitting for the top rail.

Double-Sided Panel Clip. Two-sided mesh panel clip.
