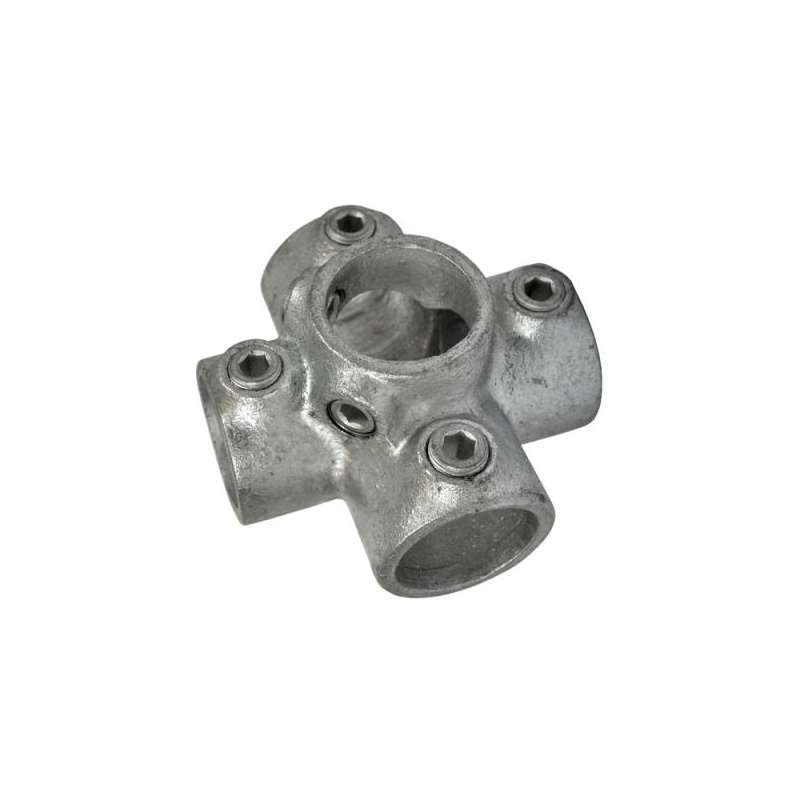

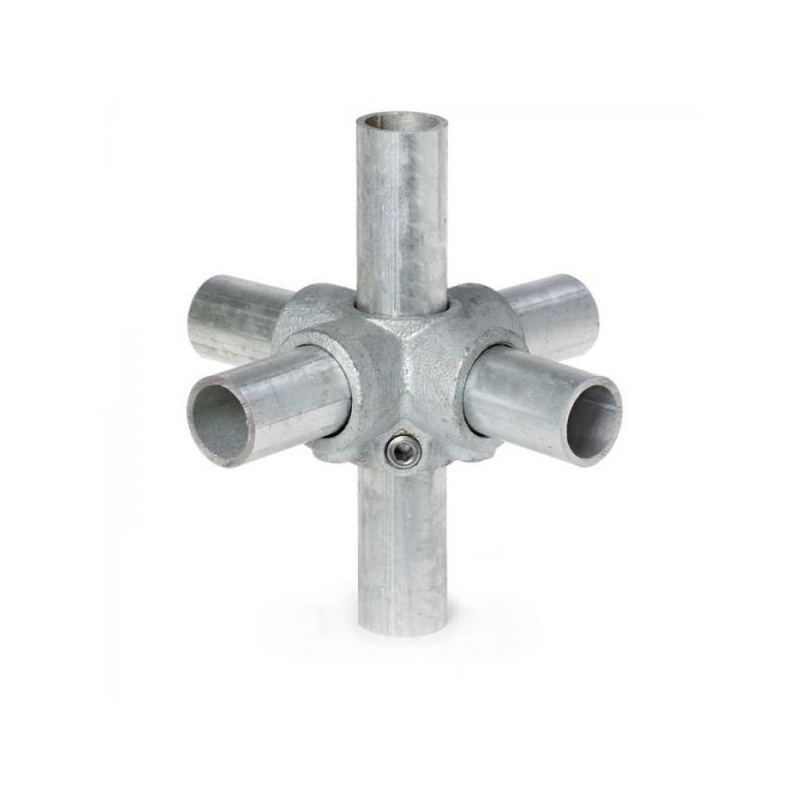

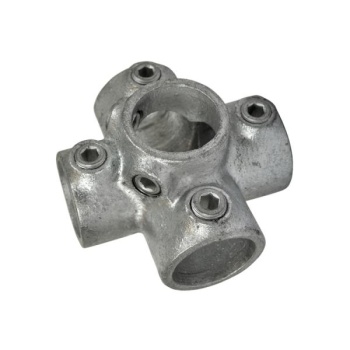

Type 26, Four Socket Cross Ø60,3 mm

Wall Flange. This clamp is used on structures where positional fixing is required. Do not use as a base flange to support guard railings or similar systems.

Saddle Clamp. Our steel cap brackets are electrolytically galvanized and therefore rust-resistant. These so-called single-lip cover brackets are available for tube sizes 21.3 mm up to 60.3 mm. Extremely suitable for mounting blades on a tubular frame base.

Three Way Top Corner. Corner joint (90°) clamp used for top rail corners and any other rectangular system.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60.3 and vertical Ø48.3mm.
