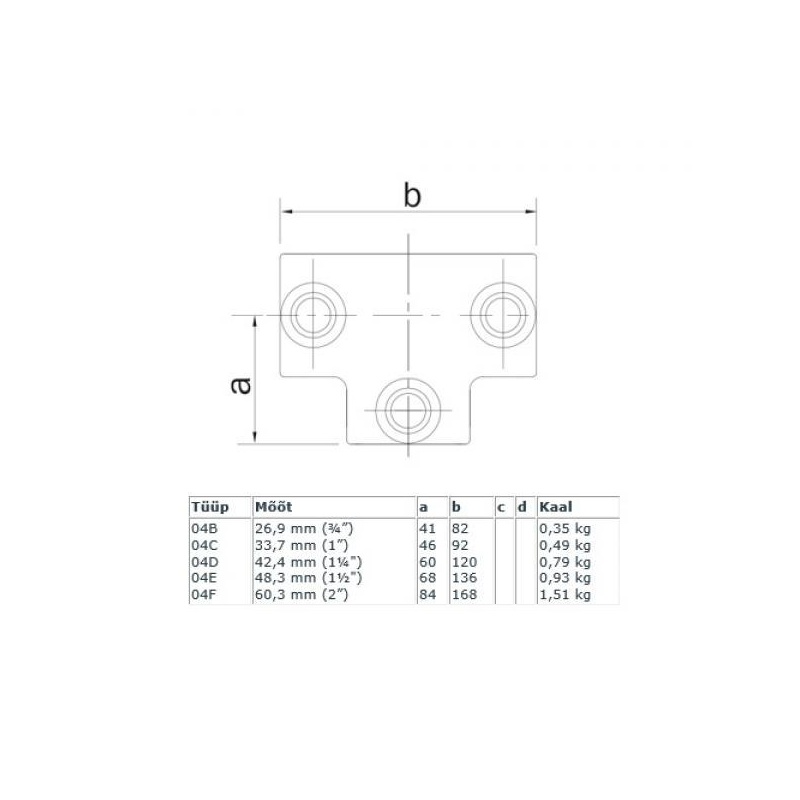

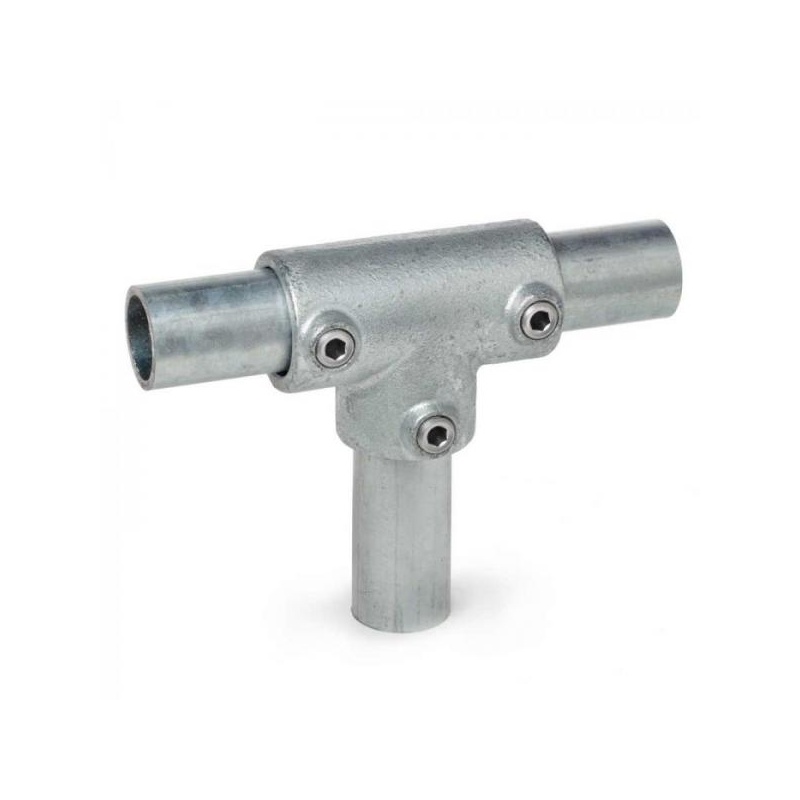

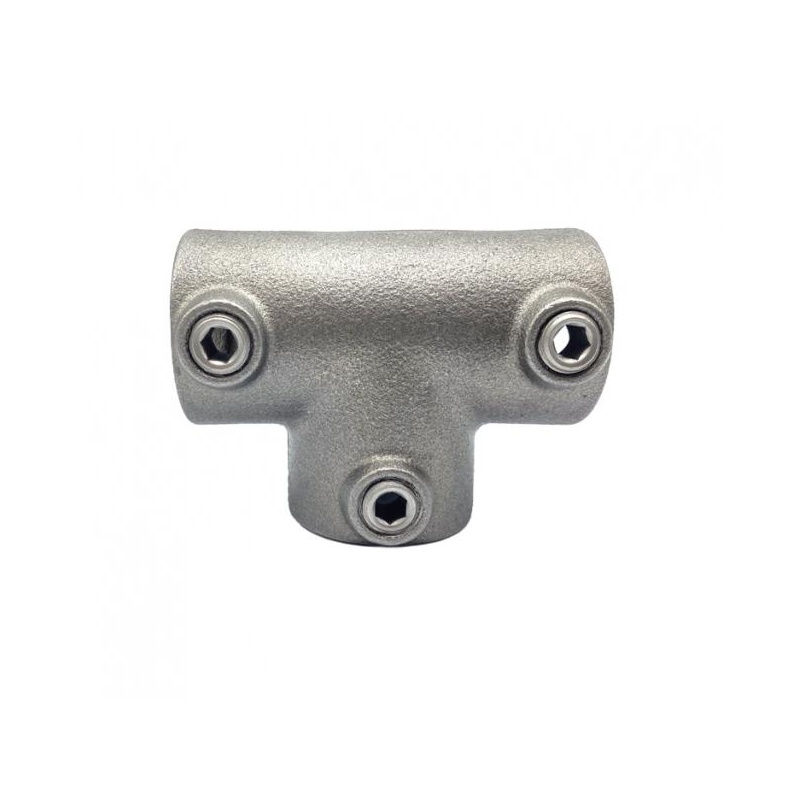

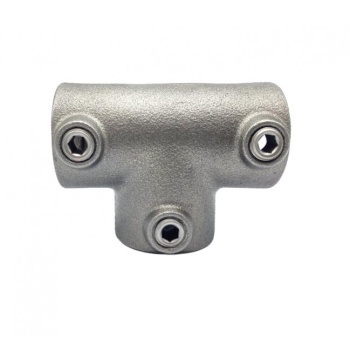

Type 4, Long Tee, Ø48,3 mm

Add-On Two Socket Cross. Openable 90° connection clamp between the central rail and the railing pillars.

Base flange for sloping sites, adjustable from 30° to 45°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Galv. Heavy Duty Side Palm. Extra heavy fascia attachment for vertical posts. This clamp is not suitable for continuous tubes. Intended for the manual attachment of safety rails and balustrades to the walls, parapets, stairs and ramps with flat mounting.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60.3 and vertical Ø48.3mm.

Male Double Lug. Similar to Type 36 with two lugs on the same axis.

Adjustable for slopes from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting. Type 253 may often be used as an alternative.
