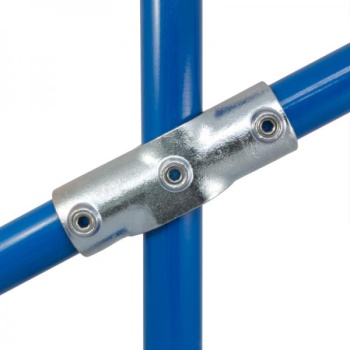

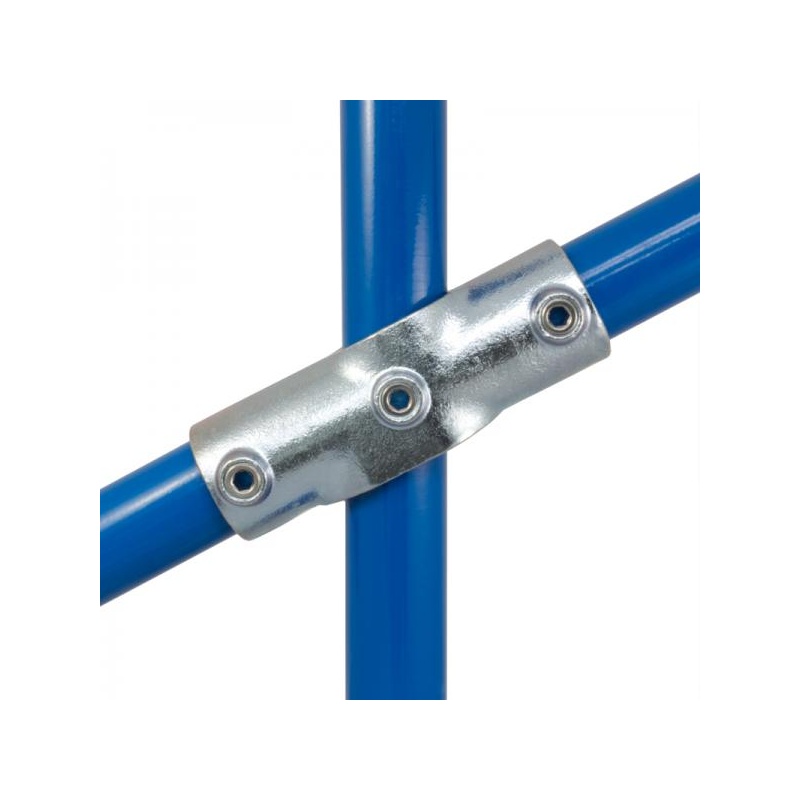

Type 256, Slope Cross (11°-29°), Ø48.3mm

Combi Socket Tee and Cross. Frequently used for racking. The upright hole can be changed according to the application. For shelved racking, the outside hole is upright, and for pallet racking the upright is inside the carrying rails.

Single Swivel. Swivel fitting for variable angle fixing.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Collar. Support fitting to increase the slip resistance of fittings that are under high loads.

Pin Hinge. Male hinge fitting, to be used in combination with type 62.

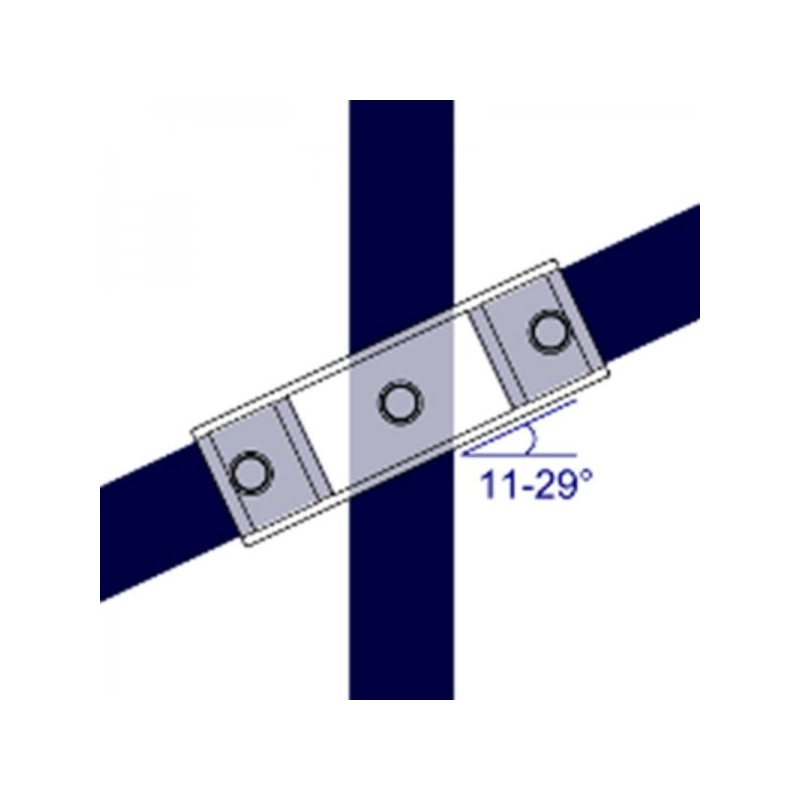

Adjustable for slopes from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting. Type 253 may often be used as an alternative.
