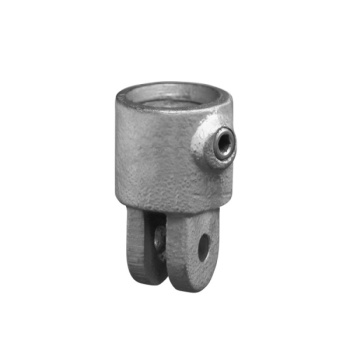

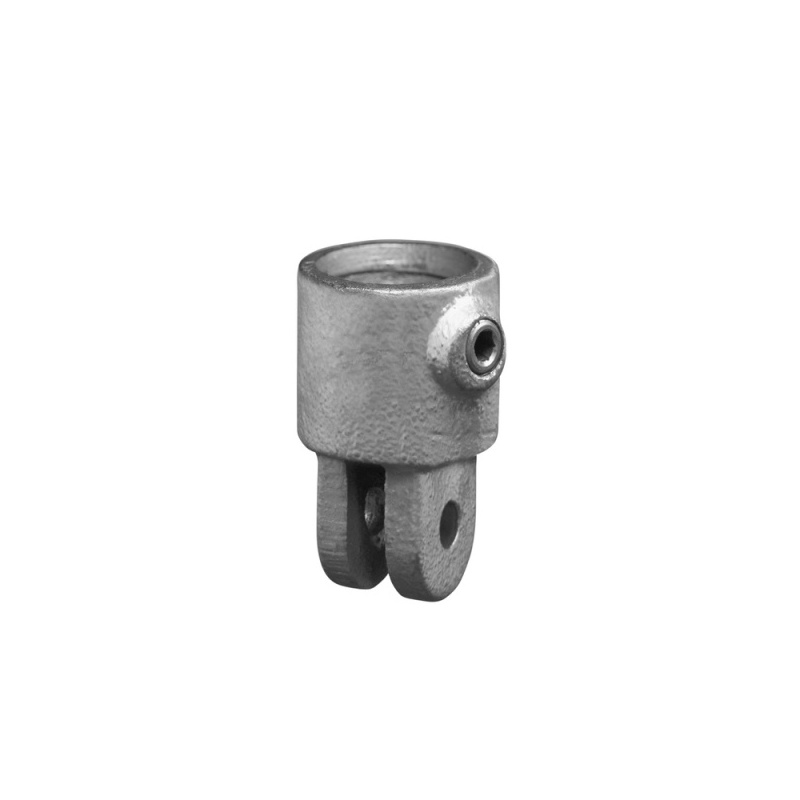

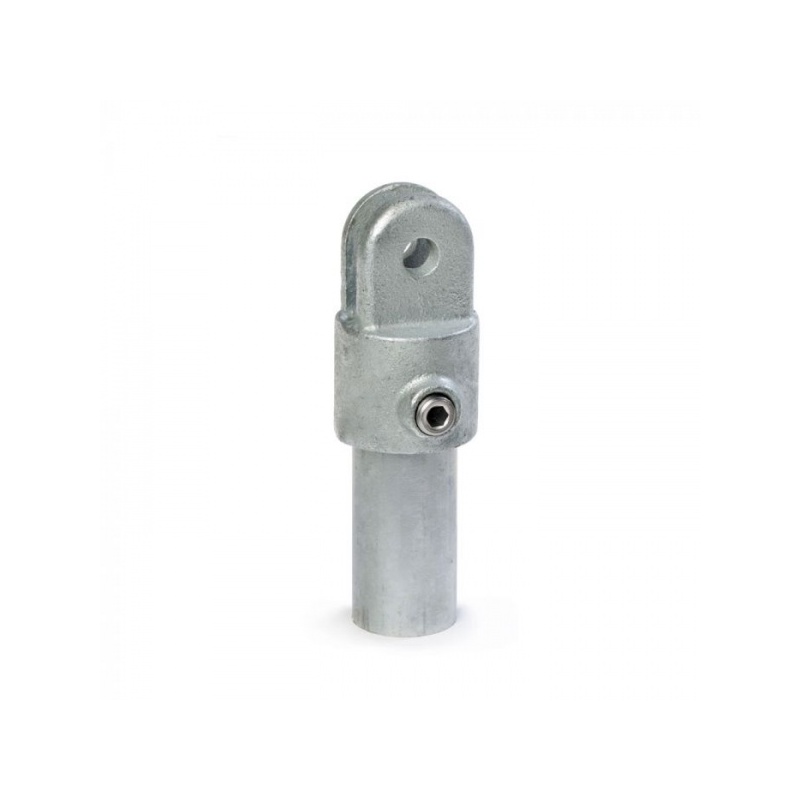

Type 42, Female Single Socket, Ø60,3

Round pipe galvanized D=60.3 mm wall thickness 2.0 mm
maximum length 7 m
maximum length 2m for shipping with the courier!

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Reducing Crossover 90°. Used as Type 28. reduction fitting makes it possible to design structures in two different tube diameters - horizontal Ø60.3 and vertical Ø48.3mm.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)
